Magnitude |
:3 |
| Date & Time (UTC) | 2022-05-01 13:29:42.5 |
| Date & Time (Local) | 1401/2/11 17:59:42.5 |
| Location | Lat:35.594 Lon: 44.961 |
| Region | Iraq, 43 km -West of Sulaymaniyah |
Nearest Cities |
|
| 43 km North West of Sulaymaniyah, Iraq Province | |
| 75 km South West of Bivaran-e sofla, Azarbaijan Gharbi Province | |
| 77 km South West of Sardasht, Azarbaijan Gharbi Province | |
| 78 km South West of Balekeh, Kurdistan Province | |
| 79 km South West of Bolhasan, Kurdistan Province | |
| Depth | 12 km |
| Agency | |

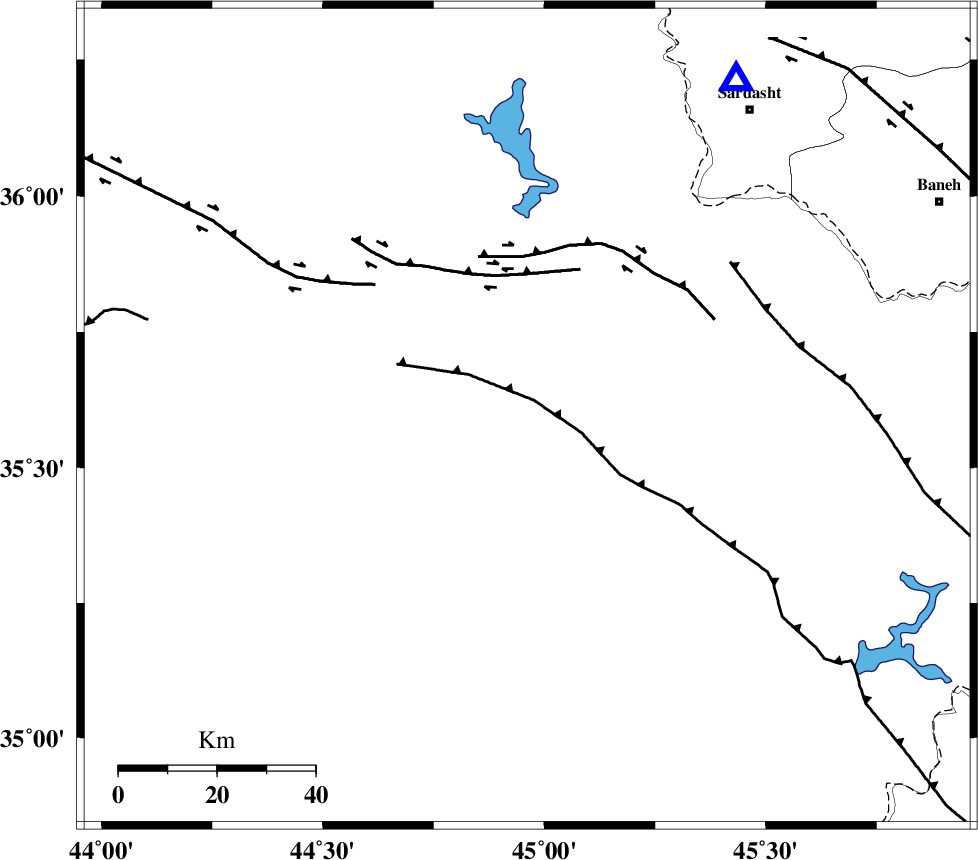

Faults within 150 km: |
|
| HZF4 (Length: 492 km) , Distance to epicenter: 63 km | |
| PIRANSHAHR_F (Length: 253 km) , Distance to epicenter: 80 km | |
| MFF8 (Length: 48 km) , Distance to epicenter: 117 km | |
| Number of Phases | 7 |
| RMS | 0.6 |
| Number of Stations | 7 |
| Error in Latitude | >1.3 km |
| Error in Longitude | 1.3 km |
| Error in Depth | 3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 170016 | IIEES SC | SRSL | Z | 0.9 | 1 | 2022-05-01 13:29:55 | 2022-05-02 04:51:00 | n |
| 170017 | IIEES SC | MAHB | Z | 0.7 | 1 | 2022-05-01 13:30:05 | 2022-05-02 04:51:00 | n |
| 170018 | IIEES SC | ILBA | Z | 0.1 | 1 | 2022-05-01 13:30:20 | 2022-05-02 04:51:00 | n |
| 170019 | IIEES SC | MRD | Z | 0.1 | 1 | 2022-05-01 13:30:34 | 2022-05-02 04:51:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | SRSL | Z | EPg | E | 2022-05-01 13:29:55 | -1 | y | 0 | 81 | 32 | ||
| IIEES SC | MAHB | Z | EPg | E | 2022-05-01 13:30:05 | -0.8 | y | 0 | 146 | 27 | ||
| IIEES SC | SNGE | Z | EPn | E | 2022-05-01 13:30:19 | 0.6 | y | 0 | 224 | 104 | ||
| IIEES SC | ILBA | Z | EPn | E | 2022-05-01 13:30:20 | -0.1 | y | 0 | 247 | 152 | ||
| IIEES SC | AZR | Z | EPn | E | 2022-05-01 13:30:21 | 0.3 | y | 0 | 249 | 22 | ||
| IIEES SC | MRD | Z | EPn | E | 2022-05-01 13:30:34 | 0.4 | y | 0 | 352 | 11 | ||
| IIEES SC | GRMI | Z | EPn | E | 2022-05-01 13:30:51 | 5.7 | n | 4 | 442 | 36 | ||
