Magnitude |
:4.1 |
| Date & Time (UTC) | 2022-05-30 01:23:39.4 |
| Date & Time (Local) | 1401/3/9 05:53:39.4 |

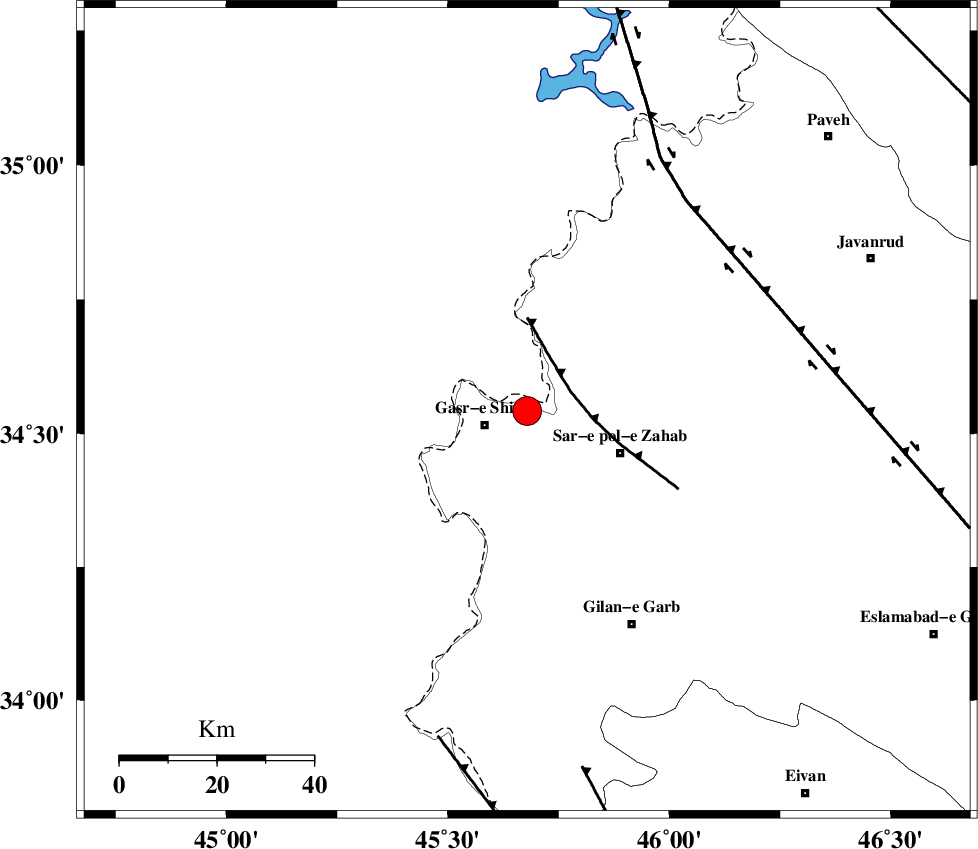

| Location | Lat:34.542 Lon: 45.679 |
| Region | Kermanshah Province, 9 km of Qasr-E-Shirin |
Nearest Cities |
|
| 1 km of Aqabarar, Kermanshah Province | |
| 8 km of Mirmiru, Kermanshah Province | |
| 9 km North of Qasr-E-Shirin, Kermanshah Province | |
| 11 km North of Qareh belagh, Kermanshah Province | |
| 13 km North of Seyyed sohrab, Kermanshah Province | |
| Depth | 12 km |
| Agency | |
Faults within 150 km: |
|
| MFF8 (Length: 48 km) , Distance to epicenter: 10 km | |
| HZF4 (Length: 492 km) , Distance to epicenter: 55 km | |
| ZFF4 (Length: 128 km) , Distance to epicenter: 70 km | |
| Number of Phases | 23 |
| RMS | 0.4 |
| Number of Stations | 23 |
| Error in Latitude | >2 km |
| Error in Longitude | 2 km |
| Error in Depth | 3.8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 170765 | IIEES SC | ILBA | Z | 5 | 1 | 2022-05-30 01:23:59 | 2022-05-30 04:58:00 | n |
| 170766 | IIEES SC | SRSL | Z | 6 | 1 | 2022-05-30 01:24:09 | 2022-05-30 04:58:00 | n |
| 170767 | IIEES SC | SRSL | Z | 6 | 1 | 2022-05-30 01:24:33 | 2022-05-30 04:58:00 | n |
| 170768 | IIEES SC | MAHB | Z | 3 | 1 | 2022-05-30 01:24:17 | 2022-05-30 04:58:00 | n |
| 170769 | IIEES SC | MAHB | Z | 3 | 1 | 2022-05-30 01:24:46 | 2022-05-30 04:58:00 | n |
| 170770 | IIEES SC | GTMR | Z | 0.7 | 1 | 2022-05-30 01:24:36 | 2022-05-30 04:58:00 | n |
| 170771 | IIEES SC | ASAO | Z | 0.6 | 1 | 2022-05-30 01:24:37 | 2022-05-30 04:58:00 | n |
| 170772 | IIEES SC | KHMZ | Z | 0.4 | 1 | 2022-05-30 01:24:37 | 2022-05-30 04:58:00 | n |
| 170773 | IIEES SC | GIDE | Z | 0.1 | 1 | 2022-05-30 01:24:44 | 2022-05-30 04:58:00 | n |
| 170774 | IIEES SC | MRD | Z | 0.4 | 1 | 2022-05-30 01:24:45 | 2022-05-30 04:58:00 | n |
| 170775 | IIEES SC | GHVR | Z | 0.4 | 1 | 2022-05-30 01:24:51 | 2022-05-30 04:58:00 | n |
| 170776 | IIEES SC | GRMI | Z | 0.08 | 1 | 2022-05-30 01:24:50 | 2022-05-30 04:58:00 | n |
| 170777 | IIEES SC | DAMV | Z | 0.1 | 1 | 2022-05-30 01:25:00 | 2022-05-30 04:58:00 | n |
| 170778 | IIEES SC | AHRM | Z | 0.04 | 1 | 2022-05-30 01:25:28 | 2022-05-30 04:58:00 | n |
| 170779 | IIEES SC | ABGH | Z | 0.03 | 1 | 2022-05-30 01:25:34 | 2022-05-30 04:58:00 | n |
| 170780 | IIEES SC | YZKH | Z | 0.03 | 1 | 2022-05-30 01:25:33 | 2022-05-30 04:58:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | ILBA | Z | EPg | E | 2022-05-30 01:23:59 | 0.7 | y | 0 | 113 | 154 | ||
| IIEES SC | ILBA | Z | ESg | E | 2022-05-30 01:24:14 | 2.4 | n | 4 | 113 | 154 | ||
| IIEES SC | SNGE | Z | EPg | E | 2022-05-30 01:24:06 | 0.3 | y | 0 | 164 | 68 | ||
| IIEES SC | SRSL | Z | EPg | E | 2022-05-30 01:24:09 | -0.3 | y | 0 | 187 | 353 | ||
| IIEES SC | SRSL | Z | ESg | E | 2022-05-30 01:24:33 | 0.8 | y | 0 | 187 | 353 | ||
| IIEES SC | MAHB | Z | EPn | E | 2022-05-30 01:24:17 | -0.5 | y | 0 | 247 | 1 | ||
| IIEES SC | MAHB | Z | ES | E | 2022-05-30 01:24:46 | 0.5 | y | 0 | 247 | 1 | ||
| IIEES SC | ZNJK | Z | EPn | E | 2022-05-30 01:24:27 | -4.8 | n | 4 | 360 | 49 | ||
| IIEES SC | GTMR | Z | EPn | E | 2022-05-30 01:24:36 | 0.1 | y | 0 | 393 | 126 | ||
| IIEES SC | ASAO | Z | EPn | E | 2022-05-30 01:24:37 | 0.1 | y | 0 | 399 | 90 | ||
| IIEES SC | KHMZ | Z | EPn | E | 2022-05-30 01:24:37 | -0.1 | y | 0 | 405 | 103 | ||
| IIEES SC | GIDE | Z | EPn | E | 2022-05-30 01:24:44 | -0.3 | y | 0 | 459 | 55 | ||
| IIEES SC | MRD | Z | EPn | E | 2022-05-30 01:24:45 | 0.1 | y | 0 | 463 | 0 | ||
| IIEES SC | GHVR | Z | EPn | E | 2022-05-30 01:24:51 | 0.3 | y | 0 | 511 | 91 | ||
| IIEES SC | GRMI | Z | EPn | E | 2022-05-30 01:24:50 | -0.3 | y | 0 | 513 | 23 | ||
| IIEES SC | MAKU | Z | EPn | E | 2022-05-30 01:24:54 | -0.5 | y | 0 | 541 | 351 | ||
| IIEES SC | DAMV | Z | EPn | E | 2022-05-30 01:25:00 | 0 | y | 0 | 586 | 78 | ||
| IIEES SC | KLNJ | Z | EPn | E | 2022-05-30 01:25:10 | -1.8 | n | 4 | 679 | 125 | ||
| IIEES SC | GLO | Z | EPn | E | 2022-05-30 01:25:23 | -0.1 | y | 0 | 771 | 74 | ||
| IIEES SC | AHRM | Z | EPn | E | 2022-05-30 01:25:28 | -0.2 | y | 0 | 814 | 141 | ||
| IIEES SC | ABGH | Z | EPn | E | 2022-05-30 01:25:34 | -0.1 | y | 0 | 861 | 74 | ||
| IIEES SC | YZKH | Z | EPn | E | 2022-05-30 01:25:33 | -1 | y | 0 | 862 | 106 | ||
| IIEES SC | GHIR | Z | EPn | E | 2022-05-30 01:25:46 | -2.6 | n | 4 | 982 | 135 | ||
