Magnitude |
:3.5 |
| Date & Time (UTC) | 2022-06-20 02:38:28.8 |
| Date & Time (Local) | 1401/3/30 07:08:28.8 |
| Location | Lat:26.743 Lon: 54.309 |
| Region | Hormozgan Province, 51 km South of Bastak |
Nearest Cities |
|
| 30 km South of Jenah, Hormozgan Province | |
| 51 km South of Bastak, Hormozgan Province | |
| 59 km North West of Bandar-e lengeh, Hormozgan Province | |
| 74 km South East of Ahl, Fars Province | |
| 87 km South East of Ashkenan, Fars Province | |
| Depth | 12 km |
| Agency | |

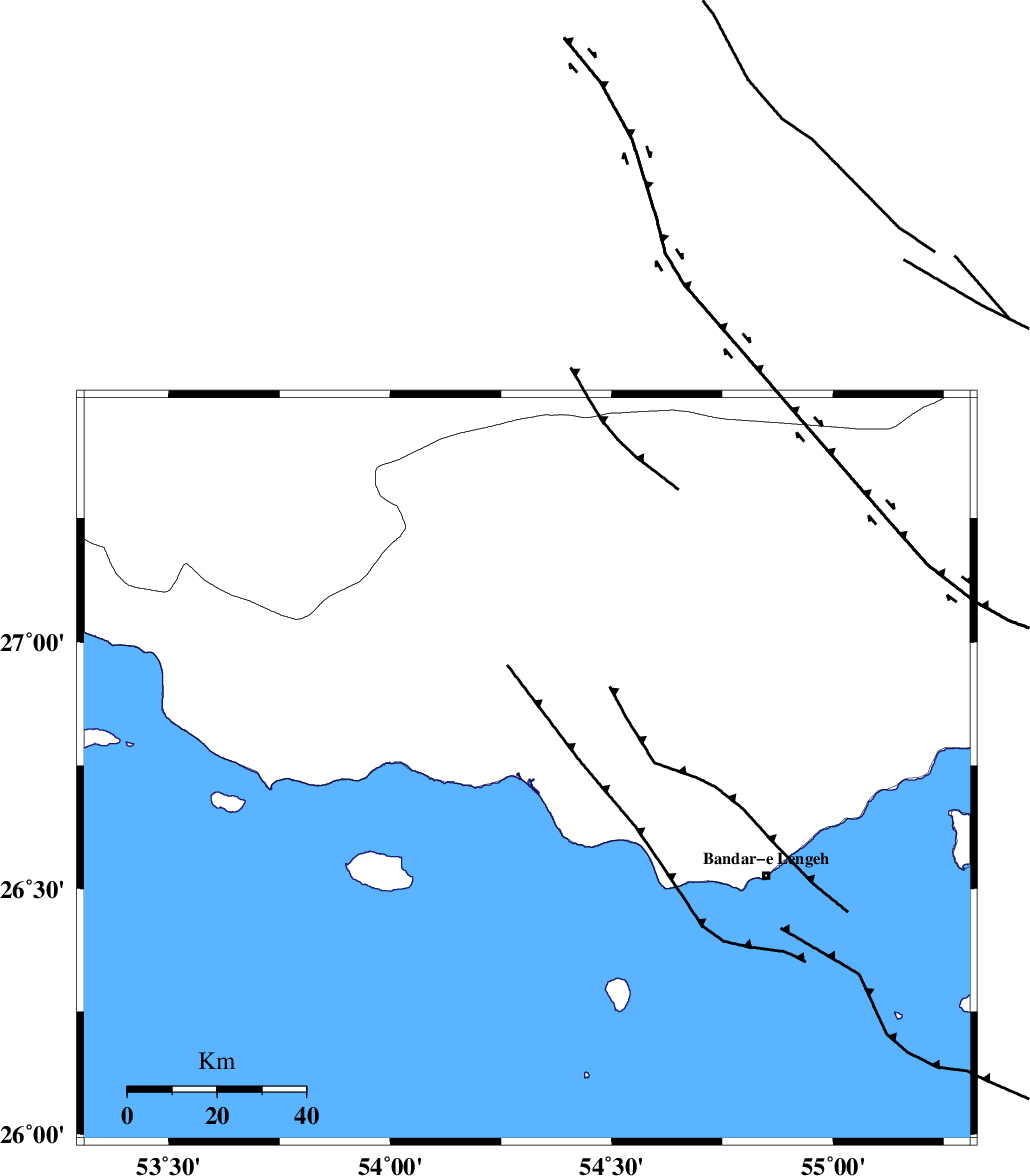

Faults within 150 km: |
|
| ZFF1 (Length: 165 km) , Distance to epicenter: 5 km | |
| MFF3 (Length: 292 km) , Distance to epicenter: 26 km | |
| MFF1 (Length: 180 km) , Distance to epicenter: 37 km | |
| Number of Phases | 14 |
| RMS | 0.5 |
| Number of Stations | 14 |
| Error in Latitude | >2.7 km |
| Error in Longitude | 2.7 km |
| Error in Depth | 8.1 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 171525 | IIEES SC | LMD1 | Z | 4 | 1 | 2022-06-20 02:38:51 | 2022-06-20 04:47:00 | n |
| 171526 | IIEES SC | BNDS | Z | 0.3 | 1 | 2022-06-20 02:39:01 | 2022-06-20 04:47:00 | n |
| 171527 | IIEES SC | KRBR | Z | 0.1 | 1 | 2022-06-20 02:39:31 | 2022-06-20 04:47:00 | n |
| 171528 | IIEES SC | KLNJ | Z | 0.06 | 1 | 2022-06-20 02:39:43 | 2022-06-20 04:47:00 | n |
| 171529 | IIEES SC | YZKH | Z | 0.02 | 1 | 2022-06-20 02:39:54 | 2022-06-20 04:47:00 | n |
| 171530 | IIEES SC | NASN | Z | 0.02 | 1 | 2022-06-20 02:40:01 | 2022-06-20 04:47:00 | n |
| 171531 | IIEES SC | ZHSF | Z | 0.01 | 1 | 2022-06-20 02:40:05 | 2022-06-20 04:47:00 | n |
| 171532 | IIEES SC | BSRN | Z | 0.01 | 1 | 2022-06-20 02:40:09 | 2022-06-20 04:47:00 | n |
| 171533 | IIEES SC | SRVN | Z | 0.02 | 1 | 2022-06-20 02:40:16 | 2022-06-20 04:47:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | LMD1 | Z | EPg | E | 2022-06-20 02:38:51 | 1 | y | 0 | 131 | 300 | ||
| IIEES SC | BNDS | Z | EPg | E | 2022-06-20 02:39:01 | 0.2 | y | 0 | 199 | 69 | ||
| IIEES SC | GHIR | Z | EPn | E | 2022-06-20 02:39:03 | -0.3 | y | 0 | 215 | 323 | ||
| IIEES SC | JSSH | Z | EPn | E | 2022-06-20 02:39:16 | -0.4 | y | 0 | 321 | 107 | ||
| IIEES SC | AHRM | Z | EPn | E | 2022-06-20 02:39:25 | -0.3 | y | 0 | 392 | 307 | ||
| IIEES SC | KRBR | Z | EPn | E | 2022-06-20 02:39:31 | 0.5 | y | 0 | 432 | 34 | ||
| IIEES SC | MEH | Z | EPn | E | 2022-06-20 02:39:41 | 0.2 | y | 0 | 516 | 3 | ||
| IIEES SC | KLNJ | Z | EPn | E | 2022-06-20 02:39:43 | -0.6 | y | 0 | 542 | 331 | ||
| IIEES SC | YZKH | Z | EPn | E | 2022-06-20 02:39:54 | 0.1 | y | 0 | 626 | 3 | ||
| IIEES SC | NASN | Z | EPn | E | 2022-06-20 02:40:01 | -1.1 | y | 0 | 687 | 348 | ||
| IIEES SC | ZHSF | Z | EPn | E | 2022-06-20 02:40:05 | 0.6 | y | 0 | 709 | 63 | ||
| IIEES SC | BSRN | Z | EPn | E | 2022-06-20 02:40:09 | -0.2 | y | 0 | 744 | 39 | ||
| IIEES SC | SRVN | Z | EPn | E | 2022-06-20 02:40:16 | -0.1 | y | 0 | 806 | 85 | ||
| IIEES SC | SHRT | Z | EPn | E | 2022-06-20 02:40:35 | 0.1 | y | 0 | 958 | 37 | ||
