Magnitude
 :3.6
Date & Time (UTC) 2022-07-24 09:30:53.9
Date & Time (Local) 1401/5/2  14:00:53.9

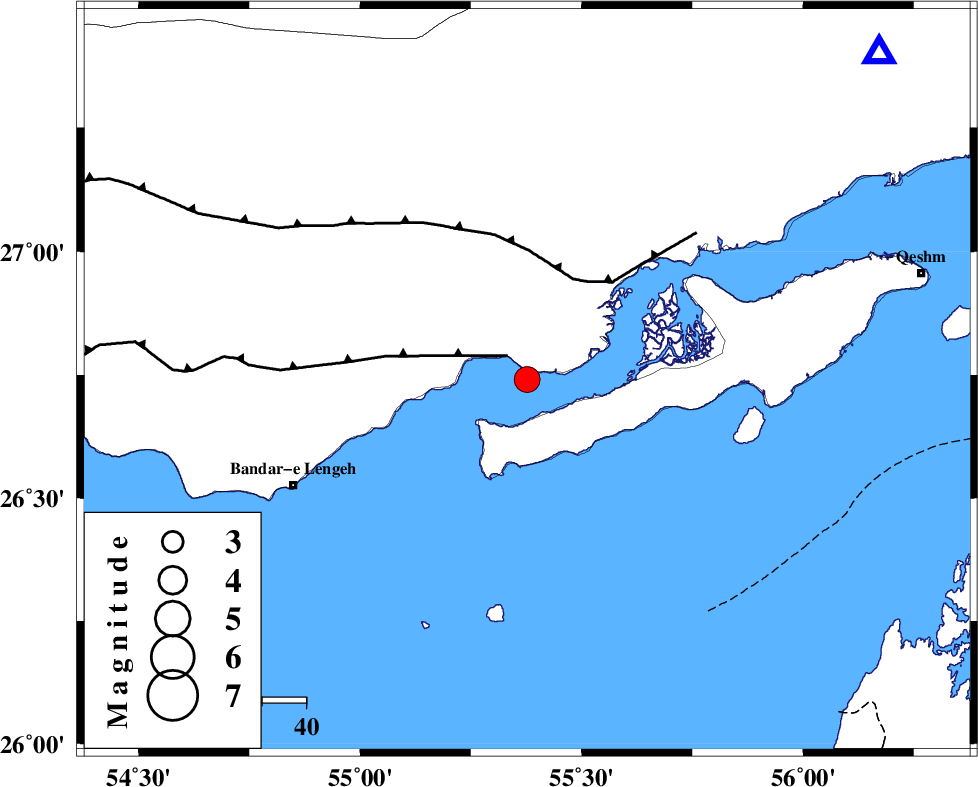

Location Lat:26.74 Lon: 55.377
Region Persian Gulf, 58 km North-East of Bandar-e lengeh
Nearest Cities
31 km South West of Bandar-e khamir, Hormozgan Province
58 km North East of Bandar-e lengeh, Hormozgan Province
68 km West of Suza, Hormozgan Province
91 km South West of Qeshm, Hormozgan Province
102 km North East of Abu Musa, Hormozgan Province
Depth 12 km
Agency
Faults within 150 km:
ZFF1 (Length: 165 km) , Distance to epicenter: 7 km
MFF1 (Length: 180 km) , Distance to epicenter: 25 km
LAR_F (Length: 99 km) , Distance to epicenter: 111 km
Number of Phases 8
RMS 0.6
Number of Stations 8
Error in Latitude >6.7 km
Error in Longitude 6.7 km
Error in Depth 22.6 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here

Amplitude

UIDAgencyStationComponentAmplitudePeriodArrival TimeProccessing TimeSignal Clip
173253IIEES SCKRBRZ 0.212022-07-24 09:31:502022-09-05 05:07:00n
173254IIEES SCYZKHZ 0.0512022-07-24 09:32:192022-09-05 05:07:00n
173255IIEES SCSRVNZ 0.0212022-07-24 09:32:282022-09-05 05:07:00n

Phase

AgencyStationComponentPhase TypePhase QualityFirst MotionObserved Arrival TimeTime ResidualLoc. FlagInput WeightDistanceAzimuth
IIEES SCBNDSZ EPg E2022-07-24 09:31:120.4y010847
IIEES SCLMD1Z EPn E2022-07-24 09:31:300.3y0229287
IIEES SCGHIRZ EPn E2022-07-24 09:31:37-0.7y0292306
IIEES SCKRBRZ EPn E2022-07-24 09:31:500.6y038421
IIEES SCKLNJZ EPn E2022-07-24 09:32:171.1y0600322
IIEES SCZHSFZ EPn E2022-07-24 09:32:17-0.7y061859
IIEES SCYZKHZ EPn E2022-07-24 09:32:19-0.8y0631353
IIEES SCSRVNZ EPn E2022-07-24 09:32:28-0.2y070084
