Magnitude |
:3.9 |
| Date & Time (UTC) | 2022-09-05 08:49:16.2 |
| Date & Time (Local) | 1401/6/14 13:19:16.2 |

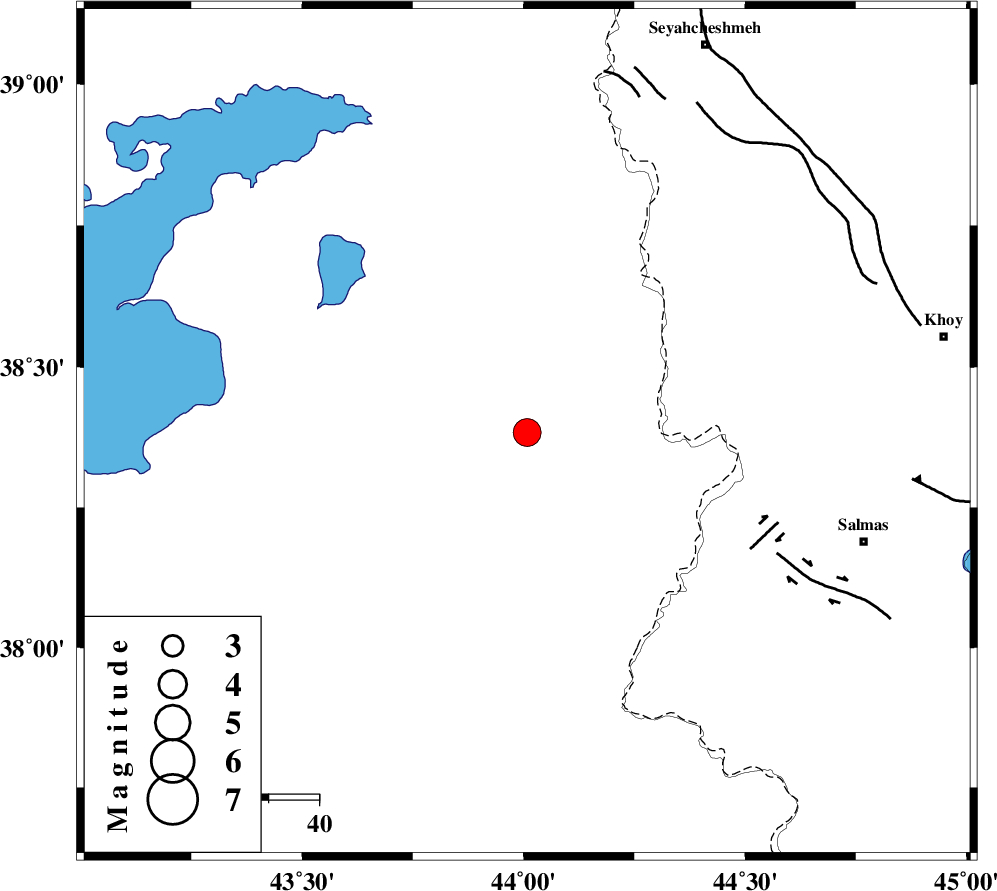

| Location | Lat:38.383 Lon: 44.008 |
| Region | Turkey, 70 km North-West of Salmas |
Nearest Cities |
|
| 37 km West of Gatur, Azarbaijan Gharbi Province | |
| 49 km North West of Kuzeh rash, Azarbaijan Gharbi Province | |
| 50 km South West of Baleh sur-e sofla, Azarbaijan Gharbi Province | |
| 55 km North West of Tazehshahr, Azarbaijan Gharbi Province | |
| 59 km North West of Delzi, Azarbaijan Gharbi Province | |
| Depth | 12 km |
| Agency | |
Faults within 150 km: |
|
| SALMAS (Length: 20 km) , Distance to epicenter: 50 km | |
| KHOY (Length: 100 km) , Distance to epicenter: 70 km | |
| N_TABRIZ_F3 (Length: 66 km) , Distance to epicenter: 76 km | |
| Number of Phases | 10 |
| RMS | 0.5 |
| Number of Stations | 10 |
| Error in Latitude | >3.5 km |
| Error in Longitude | 3.5 km |
| Error in Depth | 9.4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 173266 | IIEES SC | MRD | Z | 10 | 1 | 2022-09-05 08:49:41 | 2022-09-05 10:21:00 | n |
| 173267 | IIEES SC | MAHB | Z | 1 | 1 | 2022-09-05 08:49:53 | 2022-09-05 10:21:00 | n |
| 173268 | IIEES SC | SRSL | Z | 1 | 1 | 2022-09-05 08:49:57 | 2022-09-05 10:21:00 | n |
| 173269 | IIEES SC | GRMI | Z | 0.3 | 1 | 2022-09-05 08:50:07 | 2022-09-05 10:21:00 | n |
| 173270 | IIEES SC | ZNJK | Z | 0.09 | 1 | 2022-09-05 08:50:20 | 2022-09-05 10:21:00 | n |
| 173271 | IIEES SC | ILBA | Z | 0.1 | 1 | 2022-09-05 08:50:34 | 2022-09-05 10:21:00 | n |
| 173272 | IIEES SC | GTMR | Z | 0.05 | 1 | 2022-09-05 08:51:04 | 2022-09-05 10:21:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | MAKU | Z | EPg | E | 2022-09-05 08:49:36 | -0.1 | y | 0 | 123 | 29 | ||
| IIEES SC | MRD | Z | EPg | E | 2022-09-05 08:49:41 | -0.4 | y | 0 | 152 | 76 | ||
| IIEES SC | AZR | Z | EPg | E | 2022-09-05 08:49:47 | 0 | y | 0 | 190 | 114 | ||
| IIEES SC | MAHB | Z | EPn | E | 2022-09-05 08:49:53 | 0.2 | y | 0 | 234 | 140 | ||
| IIEES SC | SRSL | Z | EPn | E | 2022-09-05 08:49:57 | -0.6 | y | 0 | 272 | 152 | ||
| IIEES SC | GRMI | Z | EPn | E | 2022-09-05 08:50:07 | 0.7 | y | 0 | 342 | 82 | ||
| IIEES SC | ZNJK | Z | EPn | E | 2022-09-05 08:50:20 | -0.6 | y | 0 | 455 | 115 | ||
| IIEES SC | ILBA | Z | EPn | E | 2022-09-05 08:50:34 | -0.1 | y | 0 | 564 | 159 | ||
| IIEES SC | GTMR | Z | EPn | E | 2022-09-05 08:51:04 | 0.5 | y | 0 | 803 | 145 | ||
| IIEES SC | MRVT | Z | EPn | E | 2022-09-05 08:51:37 | 0.8 | y | 0 | 1064 | 94 | ||
