Magnitude |
:3.5 |
| Date & Time (UTC) | 2022-09-11 12:39:40.4 |
| Date & Time (Local) | 1401/6/20 17:09:40.4 |

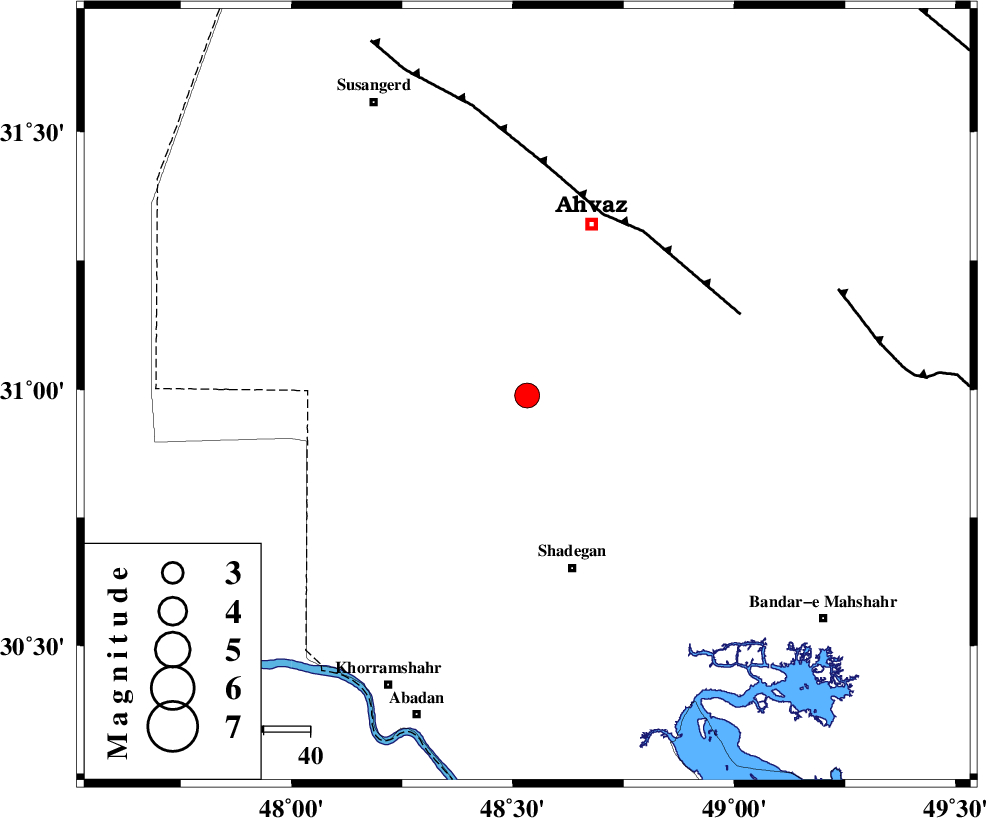

| Location | Lat:30.988 Lon: 48.532 |
| Region | Khoozestan Province, 39 km North-West of Shadegan |
Nearest Cities |
|
| 18 km South of Abunangeh, Khoozestan Province | |
| 21 km South of Bahr, Khoozestan Province | |
| 29 km North East of Darkhovin, Khoozestan Province | |
| 33 km North West of Gharibeh, Khoozestan Province | |
| 39 km North West of Shadegan, Khoozestan Province | |
| Depth | 12 km |
| Agency | |
Faults within 150 km: |
|
| AHVAZ_F (Length: 99 km) , Distance to epicenter: 42 km | |
| AGHAJARI_F (Length: 88 km) , Distance to epicenter: 71 km | |
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 118 km | |
| Number of Phases | 11 |
| RMS | 0.4 |
| Number of Stations | 11 |
| Error in Latitude | >5.2 km |
| Error in Longitude | 5.2 km |
| Error in Depth | 12.5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 173430 | IIEES SC | GTMR | Z | 2 | 1 | 2022-09-11 12:40:08 | 2022-09-12 04:22:00 | n |
| 173431 | IIEES SC | KHMZ | Z | 0.1 | 1 | 2022-09-11 12:40:30 | 2022-09-12 04:22:00 | n |
| 173432 | IIEES SC | ILBA | Z | 0.1 | 1 | 2022-09-11 12:40:34 | 2022-09-12 04:22:00 | n |
| 173433 | IIEES SC | ASAO | Z | 0.09 | 1 | 2022-09-11 12:40:40 | 2022-09-12 04:22:00 | n |
| 173434 | IIEES SC | GHVR | Z | 0.08 | 1 | 2022-09-11 12:40:46 | 2022-09-12 04:22:00 | n |
| 173435 | IIEES SC | YZKH | Z | 0.02 | 1 | 2022-09-11 12:41:02 | 2022-09-12 04:22:00 | n |
| 173436 | IIEES SC | DAMV | Z | 0.05 | 1 | 2022-09-11 12:41:04 | 2022-09-12 04:22:00 | n |
| 173437 | IIEES SC | SRSL | Z | 0.06 | 1 | 2022-09-11 12:41:08 | 2022-09-12 04:22:00 | n |
| 173438 | IIEES SC | TABS | Z | 0.01 | 1 | 2022-09-11 12:41:34 | 2022-09-12 04:22:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | GTMR | Z | EPg | E | 2022-09-11 12:40:08 | -0.1 | y | 0 | 173 | 19 | ||
| IIEES SC | KHMZ | Z | EPn | E | 2022-09-11 12:40:30 | 0.2 | y | 0 | 334 | 24 | ||
| IIEES SC | ILBA | Z | EPn | E | 2022-09-11 12:40:34 | 0.3 | y | 0 | 365 | 323 | ||
| IIEES SC | ASAO | Z | EPn | E | 2022-09-11 12:40:40 | -0.3 | y | 0 | 419 | 20 | ||
| IIEES SC | GHVR | Z | EPn | E | 2022-09-11 12:40:46 | 0.4 | y | 0 | 463 | 33 | ||
| IIEES SC | SNGE | Z | EPn | E | 2022-09-11 12:40:46 | 0.2 | y | 0 | 468 | 346 | ||
| IIEES SC | YZKH | Z | EPn | E | 2022-09-11 12:41:02 | 0.1 | y | 0 | 595 | 75 | ||
| IIEES SC | DAMV | Z | EPn | E | 2022-09-11 12:41:04 | 0.2 | y | 0 | 606 | 32 | ||
| IIEES SC | SRSL | Z | EPn | E | 2022-09-11 12:41:08 | -0.8 | y | 0 | 647 | 334 | ||
| IIEES SC | AZR | Z | EPn | E | 2022-09-11 12:41:25 | -0.2 | y | 0 | 778 | 342 | ||
| IIEES SC | TABS | Z | EPn | E | 2022-09-11 12:41:34 | -1 | y | 0 | 861 | 70 | ||
