Magnitude |
:3.6 |
| Date & Time (UTC) | 2023-01-20 12:21:20.6 |
| Date & Time (Local) | 1401/10/30 15:51:20.6 |

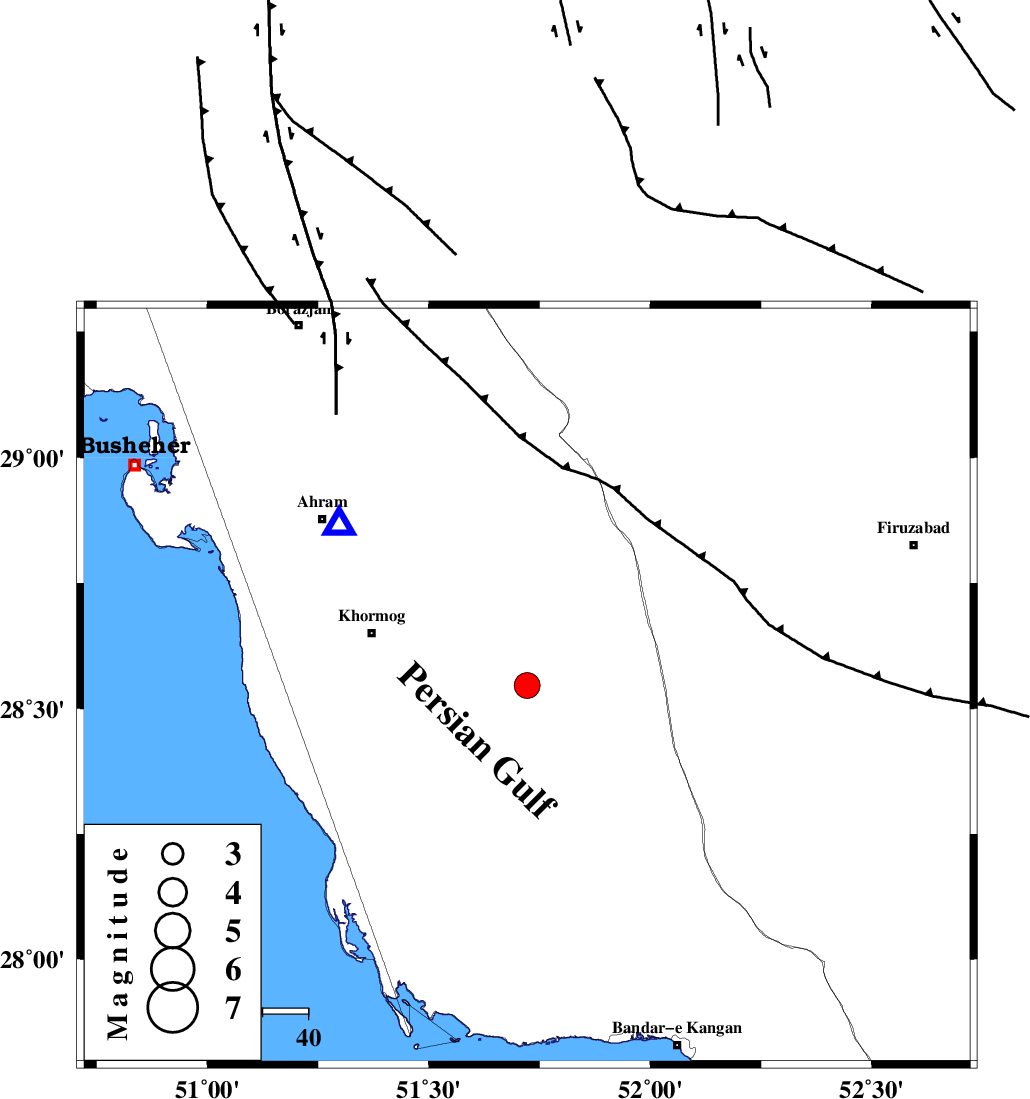

| Location | Lat:28.546 Lon: 51.722 |
| Region | Bushehr Province, 36 km South-East of Khormog |
Nearest Cities |
|
| 18 km North of Shanbeh, Bushehr Province | |
| 28 km North East of Baduleh, Bushehr Province | |
| 31 km North East of Kaki, Bushehr Province | |
| 35 km East of Buheyri, Bushehr Province | |
| 36 km South East of Khormog, Bushehr Province | |
| Depth | 11 km |
| Agency | |
Faults within 150 km: |
|
| MFF5 (Length: 74 km) , Distance to epicenter: 7 km | |
| MFF3 (Length: 292 km) , Distance to epicenter: 31 km | |
| BORAZJAN_F (Length: 168 km) , Distance to epicenter: 33 km | |
| Number of Phases | 14 |
| RMS | 0.2 |
| Number of Stations | 14 |
| Error in Latitude | >1.9 km |
| Error in Longitude | 1.9 km |
| Error in Depth | 2.8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 177860 | IIEES SC | AHRM | Z | 4 | 1 | 2023-01-20 12:21:30 | 2023-01-21 07:04:00 | n |
| 177861 | IIEES SC | KLNJ | Z | 0.6 | 1 | 2023-01-20 12:22:03 | 2023-01-21 07:04:00 | n |
| 177862 | IIEES SC | TAFT | Z | 0.09 | 1 | 2023-01-20 12:22:22 | 2023-01-21 07:04:00 | n |
| 177863 | IIEES SC | BNDS | Z | 0.1 | 1 | 2023-01-20 12:22:25 | 2023-01-21 07:04:00 | n |
| 177864 | IIEES SC | NASN | Z | 0.05 | 1 | 2023-01-20 12:22:28 | 2023-01-21 07:04:00 | n |
| 177865 | IIEES SC | GTMR | Z | 0.2 | 1 | 2023-01-20 12:22:30 | 2023-01-21 07:04:00 | n |
| 177866 | IIEES SC | YZKH | Z | 0.03 | 1 | 2023-01-20 12:22:32 | 2023-01-21 07:04:00 | n |
| 177867 | IIEES SC | KRBR | Z | 0.08 | 1 | 2023-01-20 12:22:32 | 2023-01-21 07:04:00 | n |
| 177868 | IIEES SC | GHVR | Z | 0.05 | 1 | 2023-01-20 12:22:51 | 2023-01-21 07:04:00 | n |
| 177869 | IIEES SC | ILBA | Z | 0.02 | 1 | 2023-01-20 12:23:04 | 2023-01-21 07:04:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | AHRM | Z | EPg | E | 2023-01-20 12:21:30 | 0 | y | 0 | 55 | 310 | ||
| IIEES SC | GHIR | Z | EPg | E | 2023-01-20 12:21:41 | -0.1 | y | 0 | 127 | 103 | ||
| IIEES SC | LMD1 | Z | EPg | E | 2023-01-20 12:21:52 | -0.1 | y | 0 | 195 | 133 | ||
| IIEES SC | KLNJ | Z | EPn | E | 2023-01-20 12:22:03 | 0.3 | y | 0 | 273 | 357 | ||
| IIEES SC | TAFT | Z | EPn | E | 2023-01-20 12:22:22 | 0.8 | y | 0 | 424 | 34 | ||
| IIEES SC | BNDS | Z | EPn | E | 2023-01-20 12:22:25 | 0.5 | y | 0 | 456 | 106 | ||
| IIEES SC | NASN | Z | EPn | E | 2023-01-20 12:22:28 | -0.6 | y | 0 | 483 | 12 | ||
| IIEES SC | GTMR | Z | EPn | E | 2023-01-20 12:22:30 | -0.3 | y | 0 | 502 | 330 | ||
| IIEES SC | YZKH | Z | EPn | E | 2023-01-20 12:22:32 | 0.1 | y | 0 | 508 | 33 | ||
| IIEES SC | KRBR | Z | EPn | E | 2023-01-20 12:22:32 | 0.1 | y | 0 | 515 | 72 | ||
| IIEES SC | GHVR | Z | EPn | E | 2023-01-20 12:22:51 | 0.8 | y | 0 | 660 | 356 | ||
| IIEES SC | KBAM | Z | EPn | E | 2023-01-20 12:22:51 | 0.3 | y | 0 | 660 | 84 | ||
| IIEES SC | TABS | Z | EPn | E | 2023-01-20 12:23:03 | -0.6 | y | 0 | 765 | 42 | ||
| IIEES SC | ILBA | Z | EPn | E | 2023-01-20 12:23:04 | 0 | y | 0 | 771 | 317 | ||
