Magnitude |
:3.9 |
| Date & Time (UTC) | 2022-05-12 06:10:54.5 |
| Date & Time (Local) | 1401/2/22 10:40:54.5 |
| Location | Lat:31.843 Lon: 55.951 |
| Region | Yazd Province, 59 km North-East of Bafq |
Nearest Cities |
|
| 8 km of Behabad, Yazd Province | |
| 17 km North West of Benestan, Yazd Province | |
| 19 km North East of Kushk, Yazd Province | |
| 32 km North West of Asfih, Yazd Province | |
| 41 km North of Basab, Yazd Province | |
| Depth | 12 km |
| Agency | |

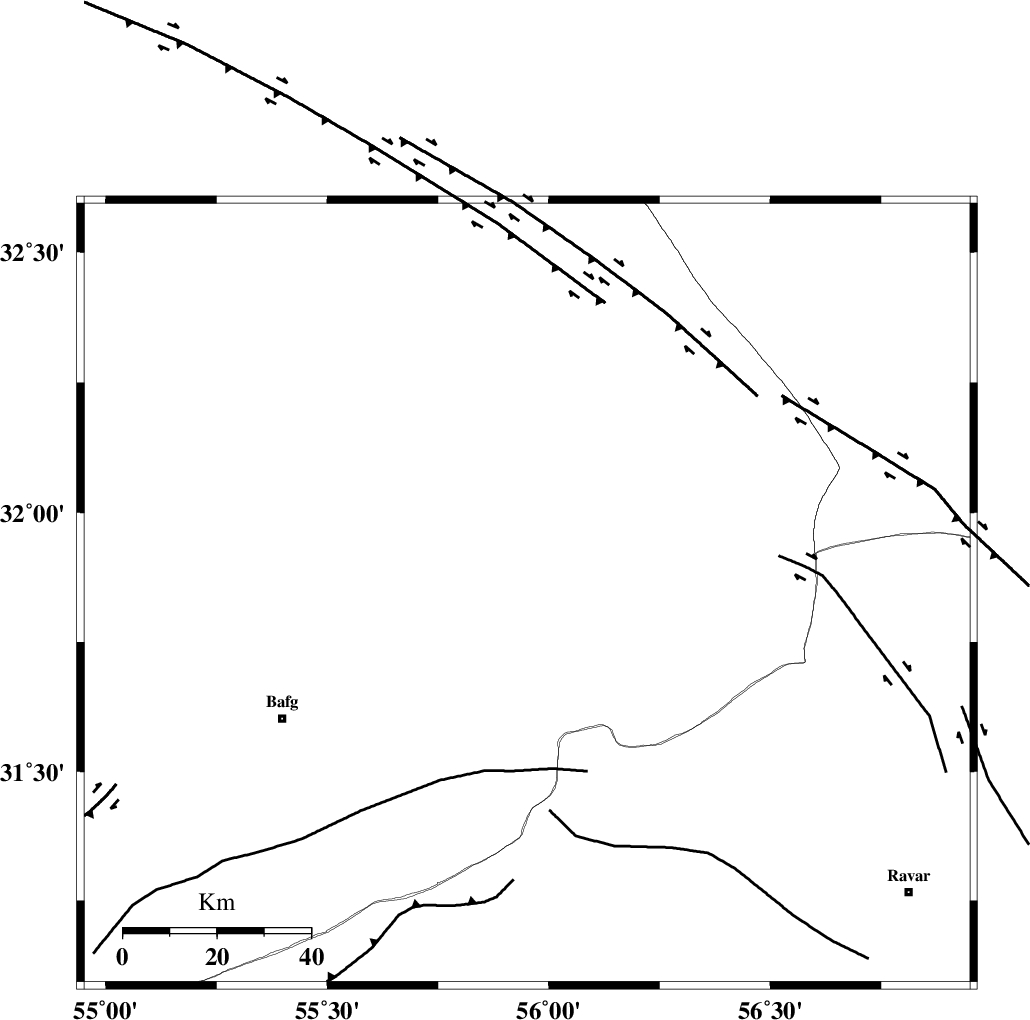

Faults within 150 km: |
|
| KUHBANAN_F (Length: 189 km) , Distance to epicenter: 6 km | |
| JAFARABAD_F (Length: 60 km) , Distance to epicenter: 14 km | |
| SARBALA_F (Length: 92 km) , Distance to epicenter: 33 km | |
| Number of Phases | 23 |
| RMS | 0.5 |
| Number of Stations | 23 |
| Error in Latitude | >1.4 km |
| Error in Longitude | 1.4 km |
| Error in Depth | 11.4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 170153 | IIEES SC | YZKH | Z | 2 | 1 | 2022-05-12 06:11:18 | 2022-05-14 04:10:00 | n |
| 170154 | IIEES SC | KRBR | Z | 7 | 1 | 2022-05-12 06:11:30 | 2022-05-14 04:10:00 | n |
| 170155 | IIEES SC | TABS | Z | 2 | 1 | 2022-05-12 06:11:31 | 2022-05-14 04:10:00 | n |
| 170156 | IIEES SC | BSRN | Z | 0.6 | 1 | 2022-05-12 06:11:39 | 2022-05-14 04:10:00 | n |
| 170157 | IIEES SC | NASN | Z | 0.5 | 1 | 2022-05-12 06:11:41 | 2022-05-14 04:10:00 | n |
| 170158 | IIEES SC | KLNJ | Z | 0.2 | 1 | 2022-05-12 06:11:55 | 2022-05-14 04:10:00 | n |
| 170159 | IIEES SC | SHRT | Z | 0.2 | 1 | 2022-05-12 06:11:59 | 2022-05-14 04:10:00 | n |
| 170160 | IIEES SC | SHRO | Z | 0.3 | 1 | 2022-05-12 06:11:59 | 2022-05-14 04:10:00 | n |
| 170161 | IIEES SC | BNDS | Z | 0.1 | 1 | 2022-05-12 06:12:03 | 2022-05-14 04:10:00 | n |
| 170162 | IIEES SC | GHVR | Z | 0.2 | 1 | 2022-05-12 06:12:08 | 2022-05-14 04:10:00 | n |
| 170163 | IIEES SC | TBJM | Z | 0.5 | 1 | 2022-05-12 06:12:10 | 2022-05-14 04:10:00 | n |
| 170164 | IIEES SC | DAMV | Z | 0.1 | 1 | 2022-05-12 06:12:11 | 2022-05-14 04:10:00 | n |
| 170165 | IIEES SC | KHMZ | Z | 0.06 | 1 | 2022-05-12 06:12:17 | 2022-05-14 04:10:00 | n |
| 170166 | IIEES SC | ASAO | Z | 0.06 | 1 | 2022-05-12 06:12:21 | 2022-05-14 04:10:00 | n |
| 170167 | IIEES SC | MRVT | Z | 0.07 | 1 | 2022-05-12 06:12:23 | 2022-05-14 04:10:00 | n |
| 170168 | IIEES SC | GTMR | Z | 0.05 | 1 | 2022-05-12 06:12:23 | 2022-05-14 04:10:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | MEH | Z | EPg | E | 2022-05-12 06:11:16 | -0.7 | y | 0 | 137 | 248 | ||
| IIEES SC | YZKH | Z | EPg | E | 2022-05-12 06:11:18 | 0.2 | y | 0 | 142 | 295 | ||
| IIEES SC | KRBR | Z | EPn | E | 2022-05-12 06:11:30 | 0.3 | y | 0 | 220 | 159 | ||
| IIEES SC | TABS | Z | EPn | E | 2022-05-12 06:11:31 | 0.4 | y | 0 | 228 | 29 | ||
| IIEES SC | BSRN | Z | EPn | E | 2022-05-12 06:11:39 | -0.7 | y | 0 | 301 | 87 | ||
| IIEES SC | NASN | Z | EPn | E | 2022-05-12 06:11:41 | -0.1 | y | 0 | 314 | 290 | ||
| IIEES SC | KLNJ | Z | EPn | E | 2022-05-12 06:11:55 | -0.1 | y | 0 | 425 | 257 | ||
| IIEES SC | ANJ | Z | EPn | E | 2022-05-12 06:11:57 | 0 | y | 0 | 444 | 335 | ||
| IIEES SC | SHRT | Z | EPn | E | 2022-05-12 06:11:59 | 0.4 | y | 0 | 453 | 64 | ||
| IIEES SC | SHRO | Z | EPn | E | 2022-05-12 06:11:59 | -0.9 | y | 0 | 462 | 1 | ||
| IIEES SC | GHIR | Z | EPn | E | 2022-05-12 06:12:02 | -0.6 | y | 0 | 487 | 216 | ||
| IIEES SC | BNDS | Z | EPn | E | 2022-05-12 06:12:03 | 0.1 | y | 0 | 493 | 178 | ||
| IIEES SC | GHVR | Z | EPn | E | 2022-05-12 06:12:08 | 0.7 | y | 0 | 528 | 304 | ||
| IIEES SC | GLO | Z | EPn | E | 2022-05-12 06:12:11 | -0.2 | y | 0 | 553 | 339 | ||
| IIEES SC | ABGH | Z | EPn | E | 2022-05-12 06:12:11 | 0.6 | y | 0 | 553 | 349 | ||
| IIEES SC | TBJM | Z | EPn | E | 2022-05-12 06:12:10 | -1 | y | 0 | 556 | 47 | ||
| IIEES SC | DAMV | Z | EPn | E | 2022-05-12 06:12:11 | -0.6 | y | 0 | 559 | 319 | ||
| IIEES SC | KHMZ | Z | EPn | E | 2022-05-12 06:12:17 | 0.1 | y | 0 | 599 | 291 | ||
| IIEES SC | ASAO | Z | EPn | E | 2022-05-12 06:12:21 | 1 | y | 0 | 629 | 298 | ||
| IIEES SC | MRVT | Z | EPn | E | 2022-05-12 06:12:23 | 0.7 | y | 0 | 645 | 1 | ||
| IIEES SC | GTMR | Z | EPn | E | 2022-05-12 06:12:23 | 0.5 | y | 0 | 649 | 276 | ||
| IIEES SC | BJRD | Z | EPn | E | 2022-05-12 06:12:25 | 0.7 | y | 0 | 663 | 12 | ||
| IIEES SC | KAGH | Z | EPn | E | 2022-05-12 06:12:27 | 0.9 | y | 0 | 675 | 33 | ||
