Map Region : lat:-  lon:-

  North
West   East
  South
Show Cities
Show Foreign Cities
Show Fault Mechanism
Show Province Boundaries
Show Stations
Map Title

Magnitude
 :3.4
Date & Time (UTC) 2022-05-27 09:10:11.7
Date & Time (Local) 1401/3/6  13:40:11.7

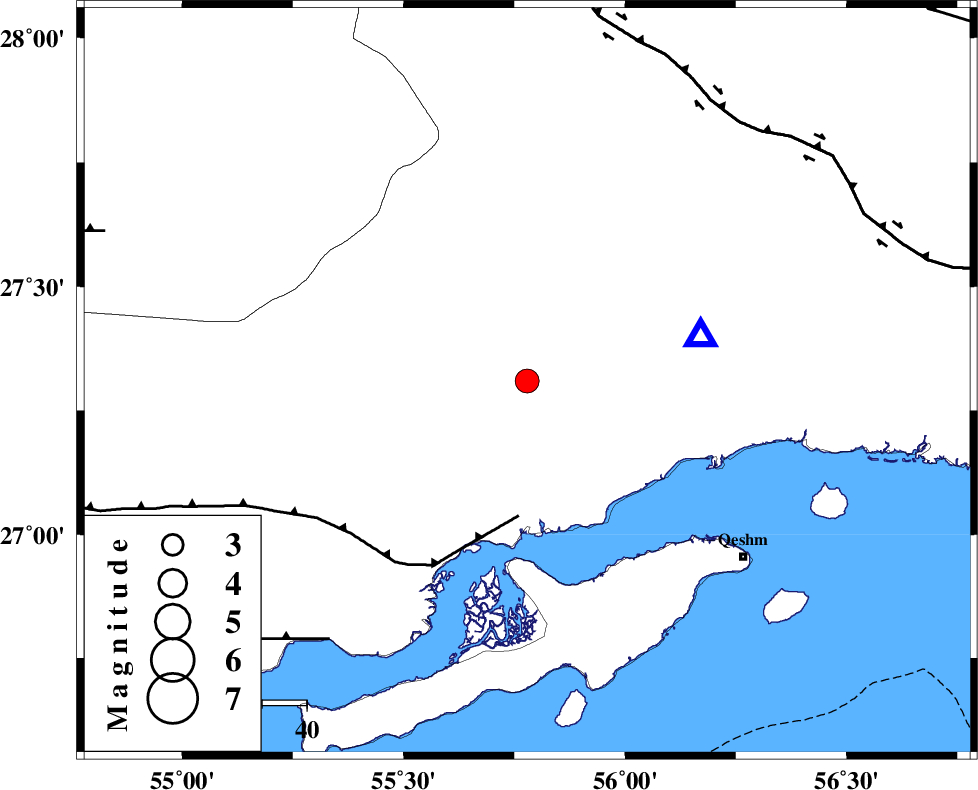

Location Lat:27.31 Lon: 55.779
Region Hormozgan Province, 52 km North-West of Bandar-e abbas
Nearest Cities
38 km South West of Fin, Hormozgan Province
44 km North East of Bandar-e khamir, Hormozgan Province
52 km North West of Bandar-e abbas, Hormozgan Province
62 km North West of Qeshm, Hormozgan Province
65 km North West of Suza, Hormozgan Province
Depth 24 km
Agency
Faults within 150 km:
MFF1 (Length: 180 km) , Distance to epicenter: 30 km
ZFF1 (Length: 165 km) , Distance to epicenter: 73 km
HZF2 (Length: 437 km) , Distance to epicenter: 75 km
Number of Phases 9
RMS 0.5
Number of Stations 9
Error in Latitude >3.6 km
Error in Longitude 3.6 km
Error in Depth 5.9 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here

Amplitude

UIDAgencyStationComponentAmplitudePeriodArrival TimeProccessing TimeSignal Clip
170650IIEES SCBNDSZ 1012022-05-27 09:10:192022-05-28 06:07:00n
170651IIEES SCYZKHZ 0.0312022-05-27 09:11:302022-05-28 06:07:00n
170652IIEES SCBSRNZ 0.0512022-05-27 09:11:342022-05-28 06:07:00n

Phase

AgencyStationComponentPhase TypePhase QualityFirst MotionObserved Arrival TimeTime ResidualLoc. FlagInput WeightDistanceAzimuth
IIEES SCBNDSZ EPg E2022-05-27 09:10:190y04076
IIEES SCJSSHZ EPn E2022-05-27 09:10:45-0.1y0223134
IIEES SCLMD1Z EPn E2022-05-27 09:10:510.7y0259271
IIEES SCGHIRZ EPn E2022-05-27 09:10:54-0.8y0296291
IIEES SCKRBRZ EPn E2022-05-27 09:10:56-0.7y031118
IIEES SCMEHZ EPn E2022-05-27 09:11:16-0.2y0466346
IIEES SCAHRMZ EPn E2022-05-27 09:10:59-19.7n4489291
IIEES SCYZKHZ EPn E2022-05-27 09:11:300.8y0575348
IIEES SCBSRNZ EPn E2022-05-27 09:11:340.7y060932
