Magnitude |
:4 |
| Date & Time (UTC) | 2022-07-03 10:46:59.7 |
| Date & Time (Local) | 1401/4/12 15:16:59.7 |

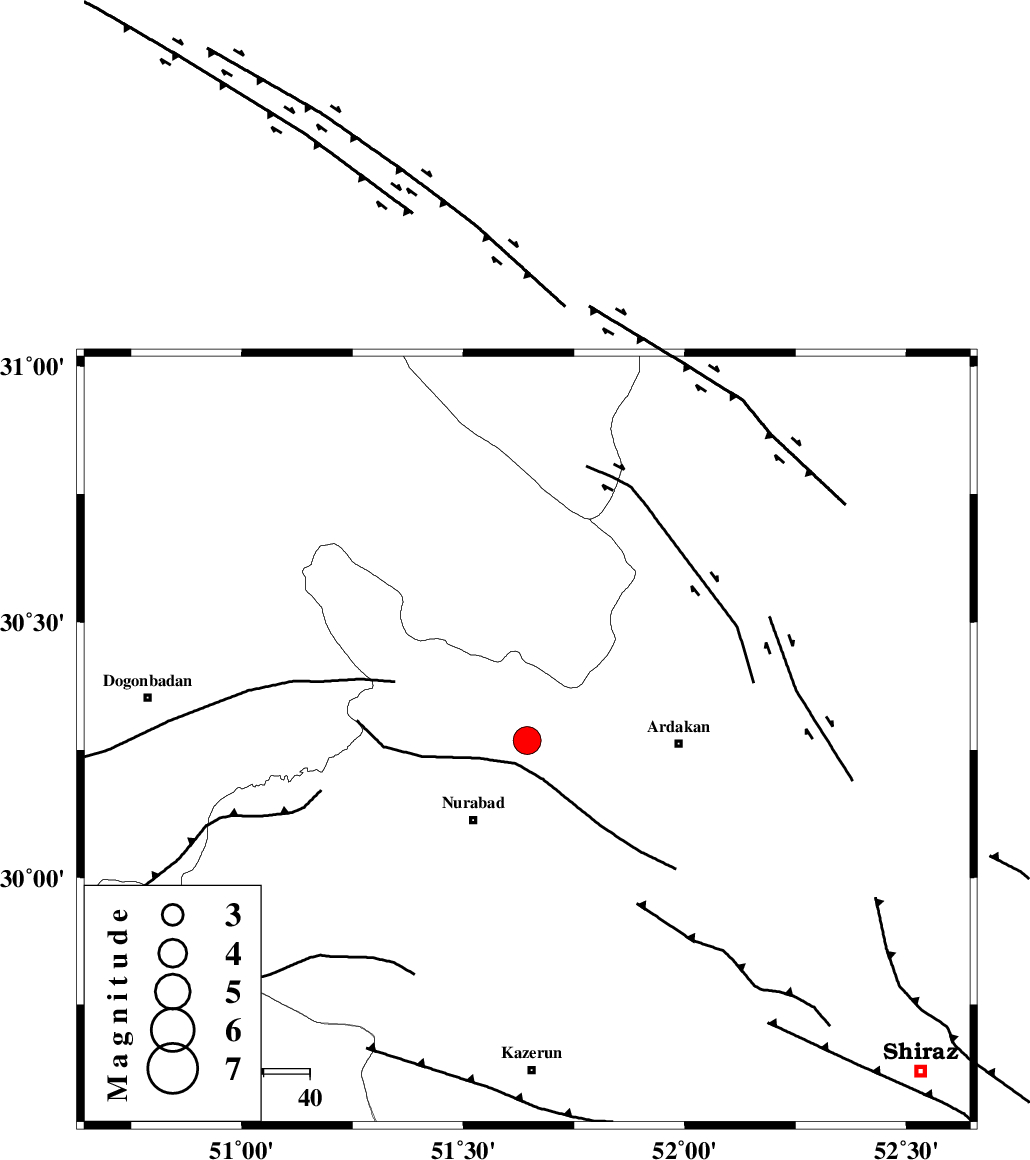

| Location | Lat:30.269 Lon: 51.644 |
| Region | Fars Province, 21 km North-East of Nurabad |
Nearest Cities |
|
| 13 km North East of Masiri, Fars Province | |
| 20 km North East of Fahlian-e olia, Fars Province | |
| 21 km North East of Nurabad, Fars Province | |
| 23 km North East of Gachgaran, Fars Province | |
| 25 km East of Dehnumoqimi, Fars Province | |
| Depth | 12 km |
| Agency | |
Faults within 150 km: |
|
| KAZERUN_F (Length: 96 km) , Distance to epicenter: 13 km | |
| HZF3 (Length: 197 km) , Distance to epicenter: 31 km | |
| MISHAN_F (Length: 76 km) , Distance to epicenter: 35 km | |
| Number of Phases | 17 |
| RMS | 0.4 |
| Number of Stations | 17 |
| Error in Latitude | >1.6 km |
| Error in Longitude | 1.6 km |
| Error in Depth | 7.6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 172132 | IIEES SC | KLNJ | Z | 10 | 1 | 2022-07-03 10:47:13 | 2022-07-05 07:26:00 | n |
| 172133 | IIEES SC | GTMR | Z | 0.9 | 1 | 2022-07-03 10:47:50 | 2022-07-05 07:26:00 | n |
| 172134 | IIEES SC | KHMZ | Z | 0.3 | 1 | 2022-07-03 10:47:59 | 2022-07-05 07:26:00 | n |
| 172135 | IIEES SC | GHVR | Z | 0.2 | 1 | 2022-07-03 10:48:06 | 2022-07-05 07:26:00 | n |
| 172136 | IIEES SC | DAMV | Z | 0.1 | 1 | 2022-07-03 10:48:21 | 2022-07-05 07:26:00 | n |
| 172137 | IIEES SC | CHTH | Z | 0.05 | 1 | 2022-07-03 10:48:25 | 2022-07-05 07:26:00 | n |
| 172138 | IIEES SC | ILBA | Z | 0.09 | 1 | 2022-07-03 10:48:25 | 2022-07-05 07:26:00 | n |
| 172139 | IIEES SC | TABS | Z | 0.08 | 1 | 2022-07-03 10:48:27 | 2022-07-05 07:26:00 | n |
| 172140 | IIEES SC | SNGE | Z | 0.06 | 1 | 2022-07-03 10:48:31 | 2022-07-05 07:26:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | KLNJ | Z | EPg | E | 2022-07-03 10:47:13 | -0.5 | y | 0 | 82 | 357 | ||
| IIEES SC | AHRM | Z | EPg | E | 2022-07-03 10:47:26 | 0.2 | y | 0 | 164 | 198 | ||
| IIEES SC | GHIR | Z | EPn | E | 2022-07-03 10:47:38 | -1 | y | 0 | 256 | 149 | ||
| IIEES SC | NASN | Z | EPn | E | 2022-07-03 10:47:45 | 0.3 | y | 0 | 302 | 22 | ||
| IIEES SC | MEH | Z | EPn | E | 2022-07-03 10:47:46 | 0.3 | y | 0 | 310 | 66 | ||
| IIEES SC | GTMR | Z | EPn | E | 2022-07-03 10:47:50 | 0.2 | y | 0 | 343 | 315 | ||
| IIEES SC | LMD1 | Z | EPn | E | 2022-07-03 10:47:51 | -0.2 | y | 0 | 357 | 155 | ||
| IIEES SC | YZKH | Z | EPn | E | 2022-07-03 10:47:54 | 0.7 | y | 0 | 366 | 50 | ||
| IIEES SC | KHMZ | Z | EPn | E | 2022-07-03 10:47:59 | -0.2 | y | 0 | 416 | 338 | ||
| IIEES SC | GHVR | Z | EPn | E | 2022-07-03 10:48:06 | 0.6 | y | 0 | 468 | 355 | ||
| IIEES SC | KRBR | Z | EPn | E | 2022-07-03 10:48:09 | 0.1 | y | 0 | 494 | 94 | ||
| IIEES SC | DAMV | Z | EPn | E | 2022-07-03 10:48:21 | -0.5 | y | 0 | 595 | 3 | ||
| IIEES SC | CHTH | Z | EPn | E | 2022-07-03 10:48:25 | 0 | y | 0 | 627 | 356 | ||
| IIEES SC | ILBA | Z | EPn | E | 2022-07-03 10:48:25 | -0.8 | y | 0 | 635 | 306 | ||
| IIEES SC | TABS | Z | EPn | E | 2022-07-03 10:48:27 | 0 | y | 0 | 639 | 54 | ||
| IIEES SC | SNGE | Z | EPn | E | 2022-07-03 10:48:31 | 0.6 | y | 0 | 670 | 323 | ||
| IIEES SC | SHRO | Z | EPn | E | 2022-07-03 10:48:37 | -4.3 | n | 4 | 756 | 33 | ||
