Magnitude |
:3.6 |
| Date & Time (UTC) | 2022-07-14 09:41:56.5 |
| Date & Time (Local) | 1401/4/23 14:11:56.5 |

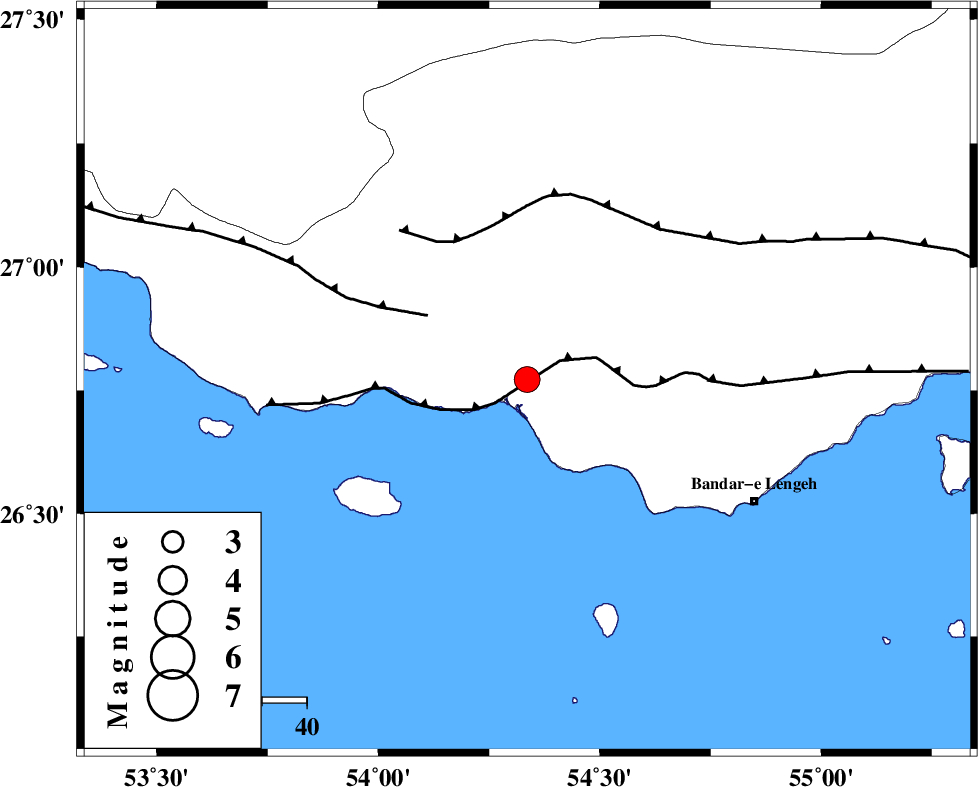

| Location | Lat:26.772 Lon: 54.336 |
| Region | Hormozgan Province, 47 km South of Bastak |
Nearest Cities |
|
| 28 km South of Jenah, Hormozgan Province | |
| 47 km South of Bastak, Hormozgan Province | |
| 58 km North West of Bandar-e lengeh, Hormozgan Province | |
| 74 km South East of Ahl, Fars Province | |
| 86 km South East of Bagh, Fars Province | |
| Depth | 12 km |
| Agency | |
Faults within 150 km: |
|
| ZFF1 (Length: 165 km) , Distance to epicenter: 2 km | |
| MFF3 (Length: 292 km) , Distance to epicenter: 27 km | |
| MFF1 (Length: 180 km) , Distance to epicenter: 35 km | |
| Number of Phases | 8 |
| RMS | 0.2 |
| Number of Stations | 8 |
| Error in Latitude | >3.8 km |
| Error in Longitude | 3.8 km |
| Error in Depth | 9.7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 172454 | IIEES SC | AHRM | Z | 0.06 | 1 | 2022-07-14 09:42:53 | 2022-07-16 05:29:00 | n |
| 172455 | IIEES SC | KLNJ | Z | 0.1 | 1 | 2022-07-14 09:43:11 | 2022-07-16 05:29:00 | n |
| 172456 | IIEES SC | SRVN | Z | 0.02 | 1 | 2022-07-14 09:43:43 | 2022-07-16 05:29:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | LMD1 | Z | EPg | E | 2022-07-14 09:42:19 | 1.1 | n | 4 | 132 | 298 | ||
| IIEES SC | BNDS | Z | EPg | E | 2022-07-14 09:42:28 | 0 | y | 0 | 195 | 69 | ||
| IIEES SC | GHIR | Z | EPn | E | 2022-07-14 09:42:30 | -0.2 | y | 0 | 214 | 322 | ||
| IIEES SC | AHRM | Z | EPn | E | 2022-07-14 09:42:53 | 0.3 | y | 0 | 392 | 306 | ||
| IIEES SC | KRBR | Z | EPn | E | 2022-07-14 09:42:58 | 0.3 | y | 0 | 428 | 34 | ||
| IIEES SC | KLNJ | Z | EPn | E | 2022-07-14 09:43:11 | 0 | y | 0 | 540 | 330 | ||
| IIEES SC | NASN | Z | EPn | E | 2022-07-14 09:43:29 | -0.4 | y | 0 | 684 | 348 | ||
| IIEES SC | SRVN | Z | EPn | E | 2022-07-14 09:43:43 | -0.3 | y | 0 | 803 | 85 | ||
