Magnitude |
:3.6 |
| Date & Time (UTC) | 2022-07-16 19:27:21.1 |
| Date & Time (Local) | 1401/4/25 23:57:21.1 |

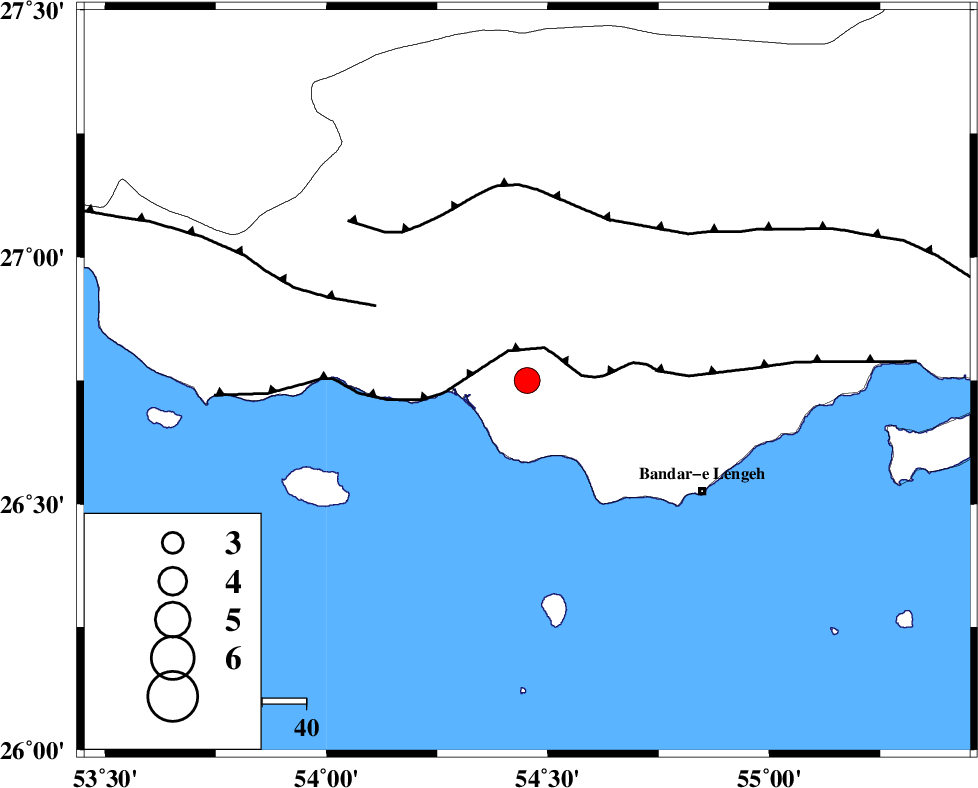

| Location | Lat:26.75 Lon: 54.453 |
| Region | Hormozgan Province, 51 km South of Bastak |
Nearest Cities |
|
| 34 km South East of Jenah, Hormozgan Province | |
| 47 km North West of Bandar-e lengeh, Hormozgan Province | |
| 51 km South of Bastak, Hormozgan Province | |
| 85 km South East of Ahl, Fars Province | |
| 93 km South East of Bagh, Fars Province | |
| Depth | 12 km |
| Agency | |
Faults within 150 km: |
|
| ZFF1 (Length: 165 km) , Distance to epicenter: 8 km | |
| MFF3 (Length: 292 km) , Distance to epicenter: 38 km | |
| MFF1 (Length: 180 km) , Distance to epicenter: 41 km | |
| Number of Phases | 13 |
| RMS | 0.3 |
| Number of Stations | 13 |
| Error in Latitude | >3.3 km |
| Error in Longitude | 3.3 km |
| Error in Depth | 7.1 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 172510 | IIEES SC | LMD1 | Z | 7 | 1 | 2022-07-16 19:27:44 | 2022-07-17 04:07:00 | n |
| 172511 | IIEES SC | BNDS | Z | 0.7 | 1 | 2022-07-16 19:27:51 | 2022-07-17 04:07:00 | n |
| 172512 | IIEES SC | AHRM | Z | 0.07 | 1 | 2022-07-16 19:28:19 | 2022-07-17 04:07:00 | n |
| 172513 | IIEES SC | KRBR | Z | 0.2 | 1 | 2022-07-16 19:28:22 | 2022-07-17 04:07:00 | n |
| 172514 | IIEES SC | MEH | Z | 0.02 | 1 | 2022-07-16 19:28:33 | 2022-07-17 04:07:00 | n |
| 172515 | IIEES SC | KLNJ | Z | 0.1 | 1 | 2022-07-16 19:28:36 | 2022-07-17 04:07:00 | n |
| 172516 | IIEES SC | YZKH | Z | 0.03 | 1 | 2022-07-16 19:28:46 | 2022-07-17 04:07:00 | n |
| 172517 | IIEES SC | BSRN | Z | 0.02 | 1 | 2022-07-16 19:28:59 | 2022-07-17 04:07:00 | n |
| 172518 | IIEES SC | SRVN | Z | 0.03 | 1 | 2022-07-16 19:29:07 | 2022-07-17 04:07:00 | n |
| 172519 | IIEES SC | TABS | Z | 0.02 | 1 | 2022-07-16 19:29:08 | 2022-07-17 04:07:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | LMD1 | Z | EPg | E | 2022-07-16 19:27:44 | -0.3 | y | 0 | 144 | 297 | ||
| IIEES SC | BNDS | Z | EPg | E | 2022-07-16 19:27:51 | 0.3 | y | 0 | 185 | 67 | ||
| IIEES SC | GHIR | Z | EPn | E | 2022-07-16 19:27:57 | 0.5 | y | 0 | 223 | 320 | ||
| IIEES SC | AHRM | Z | EPn | E | 2022-07-16 19:28:19 | 0 | y | 0 | 403 | 306 | ||
| IIEES SC | KRBR | Z | EPn | E | 2022-07-16 19:28:22 | 0.2 | y | 0 | 424 | 32 | ||
| IIEES SC | MEH | Z | EPn | E | 2022-07-16 19:28:33 | 0.4 | y | 0 | 514 | 2 | ||
| IIEES SC | KLNJ | Z | EPn | E | 2022-07-16 19:28:36 | -0.5 | y | 0 | 548 | 329 | ||
| IIEES SC | YZKH | Z | EPn | E | 2022-07-16 19:28:46 | -0.1 | y | 0 | 625 | 1 | ||
| IIEES SC | BSRN | Z | EPn | E | 2022-07-16 19:28:59 | -0.5 | y | 0 | 735 | 38 | ||
| IIEES SC | SRVN | Z | EPn | E | 2022-07-16 19:29:07 | -0.3 | y | 0 | 791 | 85 | ||
| IIEES SC | TABS | Z | EPn | E | 2022-07-16 19:29:08 | -0.4 | y | 0 | 807 | 19 | ||
| IIEES SC | SHRT | Z | EPn | E | 2022-07-16 19:29:27 | 0.3 | y | 0 | 949 | 36 | ||
| IIEES SC | ASAO | Z | EPn | E | 2022-07-16 19:29:29 | 0.2 | y | 0 | 963 | 334 | ||
