Magnitude |
:3.4 |
| Date & Time (UTC) | 2022-07-18 21:47:47.5 |
| Date & Time (Local) | 1401/4/28 02:17:47.5 |

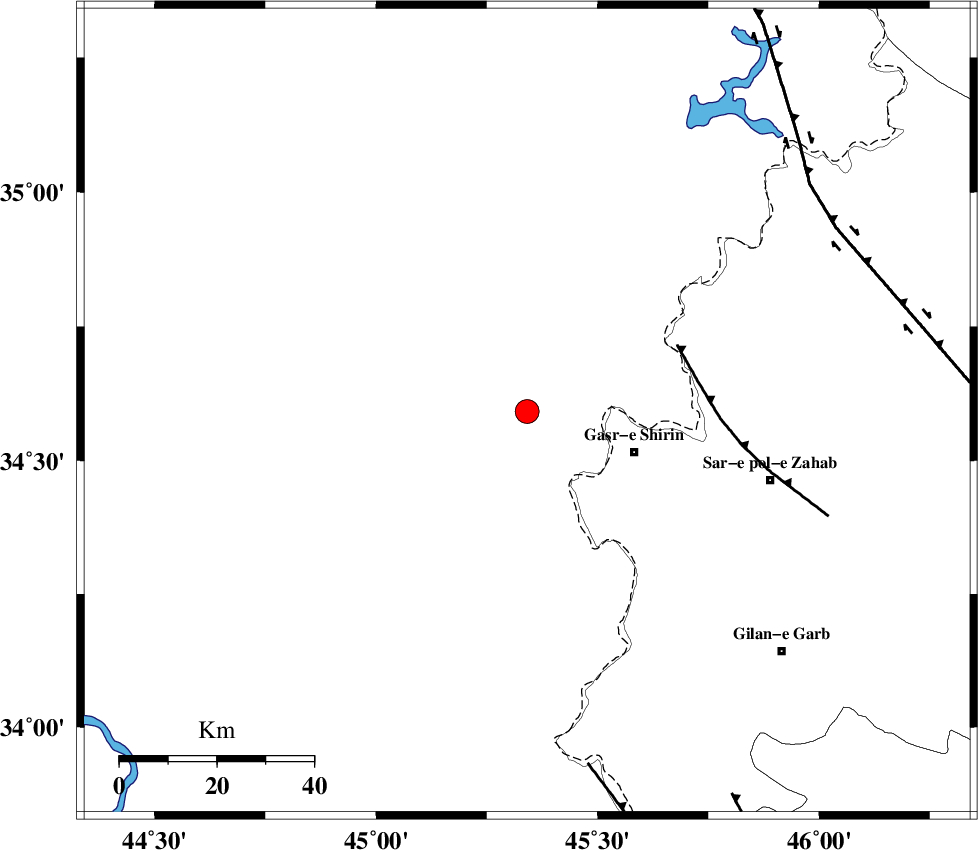

| Location | Lat:34.591 Lon: 45.341 |
| Region | Iraq, 24 km -West of Qasr-E-Shirin |
Nearest Cities |
|
| 24 km North West of Qasr-E-Shirin, Kermanshah Province | |
| 24 km North West of Khosravi, Kermanshah Province | |
| 28 km North West of Seyyed sohrab, Kermanshah Province | |
| 30 km North West of Aqabarar, Kermanshah Province | |
| 39 km North West of Mirmiru, Kermanshah Province | |
| Depth | 12 km |
| Agency | |
Faults within 150 km: |
|
| MFF8 (Length: 48 km) , Distance to epicenter: 34 km | |
| ZFF4 (Length: 128 km) , Distance to epicenter: 74 km | |
| HZF4 (Length: 492 km) , Distance to epicenter: 74 km | |
| Number of Phases | 10 |
| RMS | 0.7 |
| Number of Stations | 10 |
| Error in Latitude | >7.7 km |
| Error in Longitude | 7.7 km |
| Error in Depth | 16.4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 172576 | IIEES SC | SRSL | Z | 0.9 | 1 | 2022-07-18 21:48:17 | 2022-07-19 05:32:00 | n |
| 172577 | IIEES SC | ZNJK | Z | 0.04 | 1 | 2022-07-18 21:48:43 | 2022-07-19 05:32:00 | n |
| 172578 | IIEES SC | GTMR | Z | 0.1 | 1 | 2022-07-18 21:48:46 | 2022-07-19 05:32:00 | n |
| 172579 | IIEES SC | ASAO | Z | 0.07 | 1 | 2022-07-18 21:48:49 | 2022-07-19 05:32:00 | n |
| 172580 | IIEES SC | KHMZ | Z | 0.06 | 1 | 2022-07-18 21:48:50 | 2022-07-19 05:32:00 | n |
| 172581 | IIEES SC | MRD | Z | 0.07 | 1 | 2022-07-18 21:48:52 | 2022-07-19 05:32:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | SRSL | Z | EPg | E | 2022-07-18 21:48:17 | 0.8 | y | 0 | 180 | 3 | ||
| IIEES SC | SNGE | Z | EPg | E | 2022-07-18 21:48:18 | -0.4 | y | 0 | 192 | 73 | ||
| IIEES SC | MAHB | Z | EPn | E | 2022-07-18 21:48:25 | -0.7 | y | 0 | 244 | 8 | ||
| IIEES SC | ZNJK | Z | EPn | E | 2022-07-18 21:48:43 | 0.3 | y | 0 | 381 | 53 | ||
| IIEES SC | GTMR | Z | EPn | E | 2022-07-18 21:48:46 | -0.8 | y | 0 | 422 | 124 | ||
| IIEES SC | ASAO | Z | EPn | E | 2022-07-18 21:48:49 | 0.5 | y | 0 | 430 | 91 | ||
| IIEES SC | KHMZ | Z | EPn | E | 2022-07-18 21:48:50 | 0.6 | y | 0 | 437 | 102 | ||
| IIEES SC | MRD | Z | EPn | E | 2022-07-18 21:48:52 | -0.2 | y | 0 | 459 | 4 | ||
| IIEES SC | GIDE | Z | EPn | E | 2022-07-18 21:48:56 | 0.9 | y | 0 | 481 | 57 | ||
| IIEES SC | GRMI | Z | EPn | E | 2022-07-18 21:48:59 | -0.9 | y | 0 | 521 | 26 | ||
