Magnitude |
:3.3 |
| Date & Time (UTC) | 2022-07-22 05:57:17.6 |
| Date & Time (Local) | 1401/4/31 10:27:17.6 |

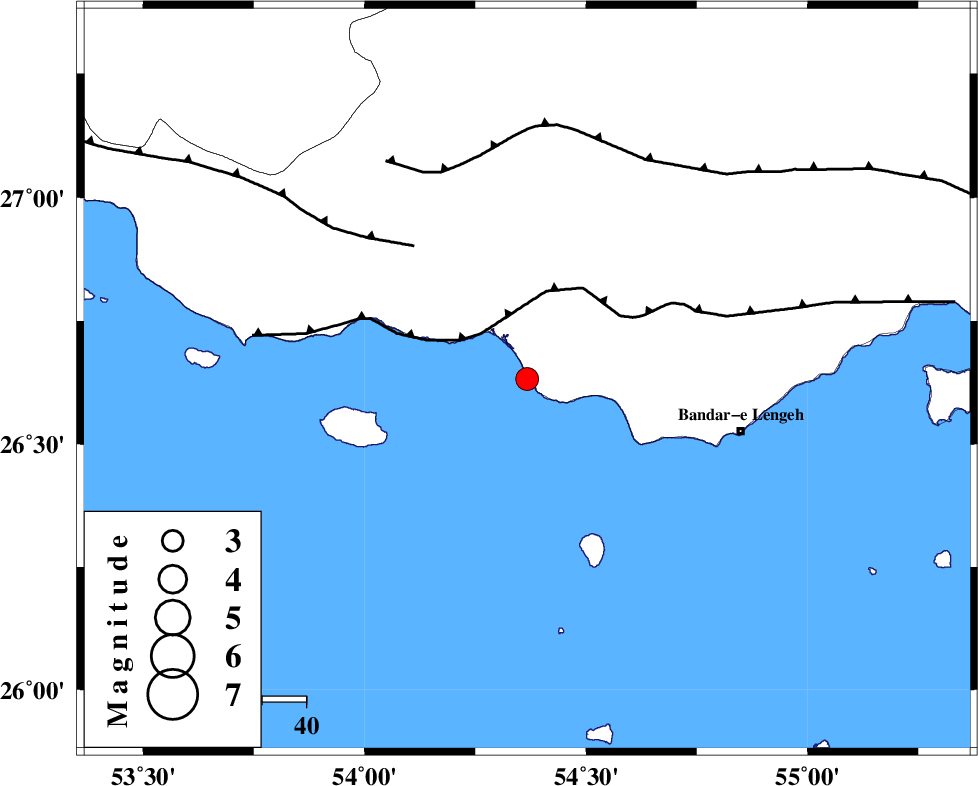

| Location | Lat:26.632 Lon: 54.367 |
| Region | Persian Gulf, 63 km South of Bastak |
Nearest Cities |
|
| 43 km South of Jenah, Hormozgan Province | |
| 49 km North West of Bandar-e lengeh, Hormozgan Province | |
| 63 km South of Bastak, Hormozgan Province | |
| 87 km South East of Ahl, Fars Province | |
| 100 km South East of Ashkenan, Fars Province | |
| Depth | 12 km |
| Agency | |
Faults within 150 km: |
|
| ZFF1 (Length: 165 km) , Distance to epicenter: 15 km | |
| MFF3 (Length: 292 km) , Distance to epicenter: 39 km | |
| MFF1 (Length: 180 km) , Distance to epicenter: 50 km | |
| Number of Phases | 9 |
| RMS | 0.4 |
| Number of Stations | 9 |
| Error in Latitude | >7.4 km |
| Error in Longitude | 7.4 km |
| Error in Depth | 14.8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 172902 | IIEES SC | BNDS | Z | 0.4 | 1 | 2022-07-22 05:57:49 | 2022-08-20 05:36:00 | n |
| 172903 | IIEES SC | KLNJ | Z | 0.05 | 1 | 2022-07-22 05:58:34 | 2022-08-20 05:36:00 | n |
| 172904 | IIEES SC | YZKH | Z | 0.01 | 1 | 2022-07-22 05:58:45 | 2022-08-20 05:36:00 | n |
| 172905 | IIEES SC | ZHSF | Z | 0.01 | 1 | 2022-07-22 05:58:54 | 2022-08-20 05:36:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | LMD1 | Z | EPg | E | 2022-07-22 05:57:43 | 2.6 | n | 4 | 143 | 303 | ||
| IIEES SC | BNDS | Z | EPg | E | 2022-07-22 05:57:49 | 0.1 | y | 0 | 198 | 65 | ||
| IIEES SC | GHIR | Z | EPn | E | 2022-07-22 05:57:54 | 0.3 | y | 0 | 228 | 323 | ||
| IIEES SC | AHRM | Z | EPn | E | 2022-07-22 05:58:15 | -0.6 | y | 0 | 404 | 308 | ||
| IIEES SC | KRBR | Z | EPn | E | 2022-07-22 05:58:19 | -0.5 | y | 0 | 439 | 32 | ||
| IIEES SC | MEH | Z | EPn | E | 2022-07-22 05:58:32 | 0.8 | y | 0 | 528 | 3 | ||
| IIEES SC | KLNJ | Z | EPn | E | 2022-07-22 05:58:34 | -0.1 | y | 0 | 556 | 331 | ||
| IIEES SC | YZKH | Z | EPn | E | 2022-07-22 05:58:45 | 0.2 | y | 0 | 639 | 2 | ||
| IIEES SC | ZHSF | Z | EPn | E | 2022-07-22 05:58:54 | 0.2 | y | 0 | 710 | 62 | ||
