Magnitude |
:4.1 |
| Date & Time (UTC) | 2022-07-23 20:46:12.6 |
| Date & Time (Local) | 1401/5/2 01:16:12.6 |

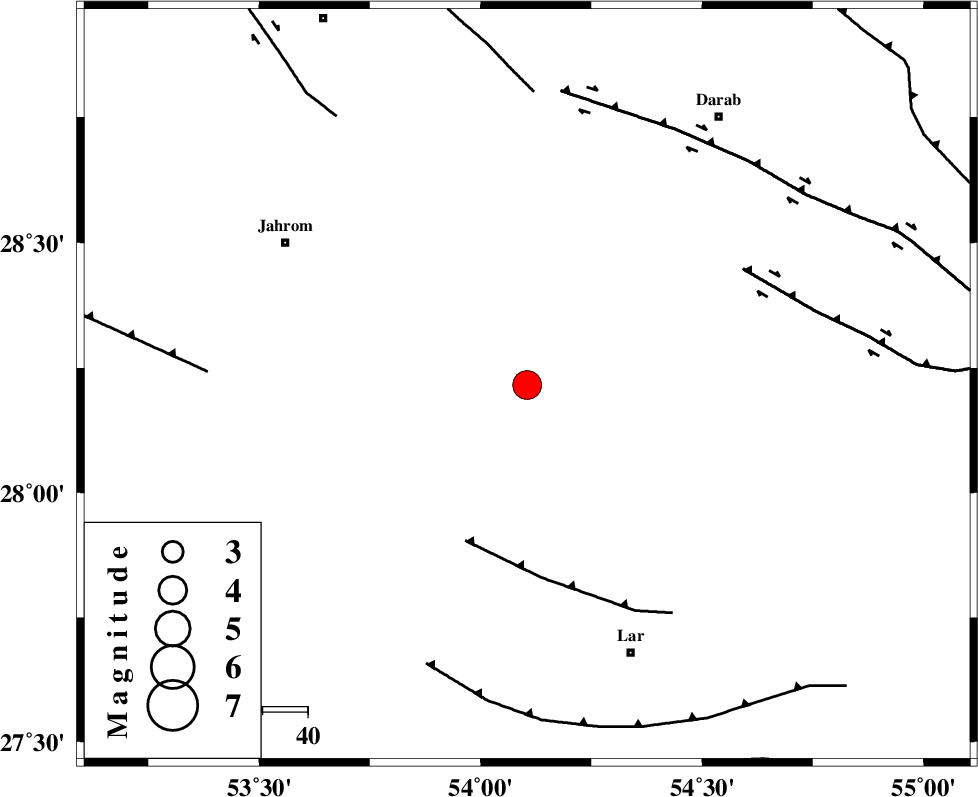

| Location | Lat:28.216 Lon: 54.105 |
| Region | Fars Province, 64 km North-West of Lar |
Nearest Cities |
|
| 23 km North East of Juyam, Fars Province | |
| 23 km South of Dabiran, Fars Province | |
| 26 km West of Shahr-e pir, Fars Province | |
| 35 km South West of Hajiabad, Fars Province | |
| 44 km North East of Kureh, Fars Province | |
| Depth | 12 km |
| Agency | |
Faults within 150 km: |
|
| BERIZ_F (Length: 49 km) , Distance to epicenter: 37 km | |
| HZF2 (Length: 437 km) , Distance to epicenter: 54 km | |
| BAKHTEGAN_F (Length: 94 km) , Distance to epicenter: 65 km | |
| Number of Phases | 23 |
| RMS | 0.6 |
| Number of Stations | 23 |
| Error in Latitude | >2.9 km |
| Error in Longitude | 2.9 km |
| Error in Depth | 643.5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 172929 | IIEES SC | KRBR | Z | 2 | 1 | 2022-07-23 20:47:00 | 2022-08-23 04:08:00 | n |
| 172930 | IIEES SC | KLNJ | Z | 0.4 | 1 | 2022-07-23 20:47:10 | 2022-08-23 04:08:00 | n |
| 172931 | IIEES SC | YZKH | Z | 0.2 | 1 | 2022-07-23 20:47:18 | 2022-08-23 04:08:00 | n |
| 172932 | IIEES SC | BSRN | Z | 0.06 | 1 | 2022-07-23 20:47:40 | 2022-08-23 04:08:00 | n |
| 172933 | IIEES SC | GTMR | Z | 0.1 | 1 | 2022-07-23 20:47:43 | 2022-08-23 04:08:00 | n |
| 172934 | IIEES SC | KHMZ | Z | 0.08 | 1 | 2022-07-23 20:47:51 | 2022-08-23 04:08:00 | n |
| 172935 | IIEES SC | GHVR | Z | 0.06 | 1 | 2022-07-23 20:47:52 | 2022-08-23 04:08:00 | n |
| 172936 | IIEES SC | ASAO | Z | 0.07 | 1 | 2022-07-23 20:48:00 | 2022-08-23 04:08:00 | n |
| 172937 | IIEES SC | SRVN | Z | 0.02 | 1 | 2022-07-23 20:48:02 | 2022-08-23 04:08:00 | n |
| 172938 | IIEES SC | SHRT | Z | 0.03 | 1 | 2022-07-23 20:48:05 | 2022-08-23 04:08:00 | n |
| 172939 | IIEES SC | DAMV | Z | 0.04 | 1 | 2022-07-23 20:48:06 | 2022-08-23 04:08:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | BNDS | Z | EPn | E | 2022-07-23 20:46:48 | 0.3 | y | 0 | 223 | 114 | ||
| IIEES SC | AHRM | Z | EPn | E | 2022-07-23 20:47:06 | 8.3 | n | 4 | 300 | 284 | ||
| IIEES SC | KRBR | Z | EPn | E | 2022-07-23 20:47:00 | -1 | y | 0 | 324 | 53 | ||
| IIEES SC | MEH | Z | EPn | E | 2022-07-23 20:47:06 | 1.6 | n | 4 | 355 | 8 | ||
| IIEES SC | KLNJ | Z | EPn | E | 2022-07-23 20:47:10 | 1.1 | y | 0 | 394 | 322 | ||
| IIEES SC | YZKH | Z | EPn | E | 2022-07-23 20:47:18 | 0.4 | y | 0 | 465 | 6 | ||
| IIEES SC | BSRN | Z | EPn | E | 2022-07-23 20:47:40 | 0.9 | y | 0 | 638 | 49 | ||
| IIEES SC | TABS | Z | EPn | E | 2022-07-23 20:47:43 | -0.3 | y | 0 | 668 | 26 | ||
| IIEES SC | ZHSF | Z | EPn | E | 2022-07-23 20:47:43 | -0.4 | y | 0 | 668 | 77 | ||
| IIEES SC | GTMR | Z | EPn | E | 2022-07-23 20:47:43 | -0.3 | y | 0 | 673 | 314 | ||
| IIEES SC | KHMZ | Z | EPn | E | 2022-07-23 20:47:51 | 0 | y | 0 | 729 | 327 | ||
| IIEES SC | GHVR | Z | EPn | E | 2022-07-23 20:47:52 | -0.7 | y | 0 | 746 | 339 | ||
| IIEES SC | ASAO | Z | EPn | E | 2022-07-23 20:48:00 | 0.5 | y | 0 | 802 | 331 | ||
| IIEES SC | SRVN | Z | EPn | E | 2022-07-23 20:48:02 | -0.1 | y | 0 | 822 | 96 | ||
| IIEES SC | SHRT | Z | EPn | E | 2022-07-23 20:48:05 | 0.2 | y | 0 | 844 | 44 | ||
| IIEES SC | DAMV | Z | EPn | E | 2022-07-23 20:48:06 | 0.4 | y | 0 | 846 | 346 | ||
| IIEES SC | SHRO | Z | EPn | E | 2022-07-23 20:48:04 | -6.2 | n | 4 | 883 | 12 | ||
| IIEES SC | CHTH | Z | EPn | E | 2022-07-23 20:48:11 | -0.3 | y | 0 | 898 | 342 | ||
| IIEES SC | GLO | Z | EPn | E | 2022-07-23 20:48:14 | 0 | y | 0 | 919 | 358 | ||
| IIEES SC | ABGH | Z | EPn | E | 2022-07-23 20:48:18 | 0.7 | y | 0 | 947 | 4 | ||
| IIEES SC | ILBA | Z | EPn | E | 2022-07-23 20:48:19 | -0.7 | y | 0 | 964 | 308 | ||
| IIEES SC | SNGE | Z | EPn | E | 2022-07-23 20:48:23 | -0.8 | y | 0 | 996 | 320 | ||
| IIEES SC | SRSL | Z | EPn | E | 2022-07-23 20:48:50 | 0.2 | y | 0 | 1206 | 317 | ||
