Magnitude |
:3.7 |
| Date & Time (UTC) | 2022-09-03 08:06:38.0 |
| Date & Time (Local) | 1401/6/12 12:36:38.0 |

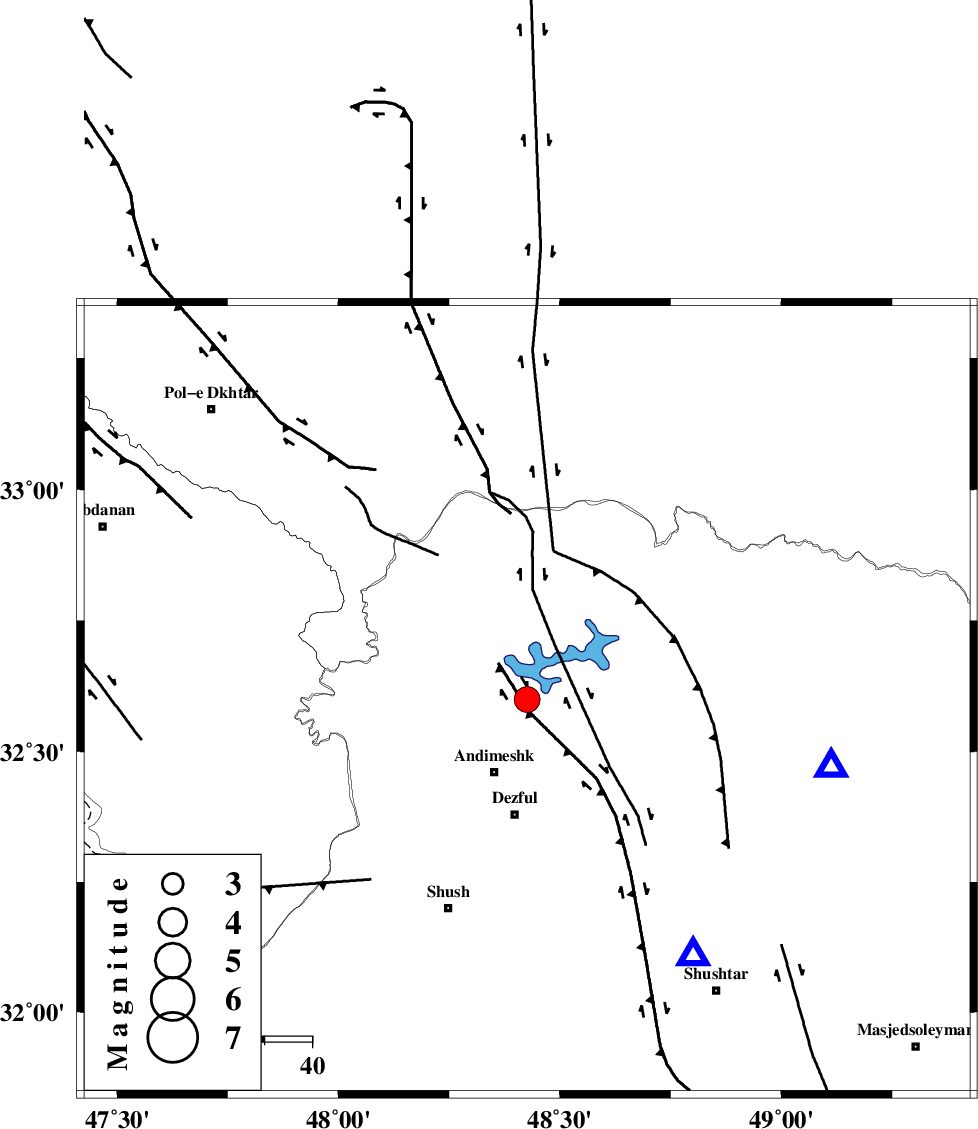

| Location | Lat:32.599 Lon: 48.426 |
| Region | Khoozestan Province, 17 km North of Andimeshk |
Nearest Cities |
|
| 17 km North of Andimeshk, Khoozestan Province | |
| 19 km East of Hoseinieh, Khoozestan Province | |
| 22 km South of Sorkhakan, Khoozestan Province | |
| 25 km North of Dezful, Khoozestan Province | |
| 25 km South East of Bidruyeh, Khoozestan Province | |
| Depth | 12 km |
| Agency | |
Faults within 150 km: |
|
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 8 km | |
| BALARUD_F_Z3 (Length: 53 km) , Distance to epicenter: 19 km | |
| BALARUD_F_Z2 (Length: 58 km) , Distance to epicenter: 23 km | |
| Number of Phases | 18 |
| RMS | 0.4 |
| Number of Stations | 18 |
| Error in Latitude | >1.5 km |
| Error in Longitude | 1.5 km |
| Error in Depth | 8.7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 173184 | IIEES SC | KHMZ | Z | 2 | 1 | 2022-09-03 08:07:09 | 2022-09-03 09:25:00 | n |
| 173185 | IIEES SC | ILBA | Z | 0.4 | 1 | 2022-09-03 08:07:15 | 2022-09-03 09:25:00 | n |
| 173186 | IIEES SC | GHVR | Z | 0.5 | 1 | 2022-09-03 08:07:28 | 2022-09-03 09:25:00 | n |
| 173187 | IIEES SC | CHTH | Z | 0.1 | 1 | 2022-09-03 08:07:40 | 2022-09-03 09:25:00 | n |
| 173188 | IIEES SC | DAMV | Z | 0.2 | 1 | 2022-09-03 08:07:43 | 2022-09-03 09:25:00 | n |
| 173189 | IIEES SC | SRSL | Z | 0.3 | 1 | 2022-09-03 08:07:45 | 2022-09-03 09:25:00 | n |
| 173190 | IIEES SC | AHRM | Z | 0.05 | 1 | 2022-09-03 08:07:46 | 2022-09-03 09:25:00 | n |
| 173191 | IIEES SC | GIDE | Z | 0.05 | 1 | 2022-09-03 08:07:47 | 2022-09-03 09:25:00 | n |
| 173192 | IIEES SC | MAHB | Z | 0.2 | 1 | 2022-09-03 08:07:51 | 2022-09-03 09:25:00 | n |
| 173193 | IIEES SC | YZKH | Z | 0.04 | 1 | 2022-09-03 08:07:57 | 2022-09-03 09:25:00 | n |
| 173194 | IIEES SC | GRMI | Z | 0.02 | 1 | 2022-09-03 08:08:11 | 2022-09-03 09:25:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | GTMR | Z | EPg | E | 2022-09-03 08:06:49 | 0.1 | y | 0 | 66 | 102 | ||
| IIEES SC | KHMZ | Z | EPg | E | 2022-09-03 08:07:09 | 0 | y | 0 | 191 | 49 | ||
| IIEES SC | ILBA | Z | EPn | E | 2022-09-03 08:07:15 | 0 | y | 0 | 236 | 299 | ||
| IIEES SC | SNGE | Z | EPn | E | 2022-09-03 08:07:23 | 1 | y | 0 | 294 | 340 | ||
| IIEES SC | GHVR | Z | EPn | E | 2022-09-03 08:07:28 | 0.9 | y | 0 | 335 | 51 | ||
| IIEES SC | KLNJ | Z | EPn | E | 2022-09-03 08:07:30 | 0.7 | y | 0 | 348 | 120 | ||
| IIEES SC | CHTH | Z | EPn | E | 2022-09-03 08:07:40 | -0.6 | y | 0 | 443 | 34 | ||
| IIEES SC | ZNJK | Z | EPn | E | 2022-09-03 08:07:36 | -5.4 | n | 4 | 452 | 3 | ||
| IIEES SC | DAMV | Z | EPn | E | 2022-09-03 08:07:43 | -0.8 | y | 0 | 469 | 44 | ||
| IIEES SC | SRSL | Z | EPn | E | 2022-09-03 08:07:45 | -1 | y | 0 | 486 | 326 | ||
| IIEES SC | AHRM | Z | EPn | E | 2022-09-03 08:07:46 | -0.1 | y | 0 | 488 | 148 | ||
| IIEES SC | GIDE | Z | EPn | E | 2022-09-03 08:07:47 | 0.1 | y | 0 | 496 | 15 | ||
| IIEES SC | MAHB | Z | EPn | E | 2022-09-03 08:07:51 | 0.4 | y | 0 | 525 | 332 | ||
| IIEES SC | YZKH | Z | EPn | E | 2022-09-03 08:07:57 | -0.5 | y | 0 | 580 | 92 | ||
| IIEES SC | AZR | Z | EPn | E | 2022-09-03 08:08:01 | -0.2 | y | 0 | 606 | 338 | ||
| IIEES SC | GLO | Z | EPn | E | 2022-09-03 08:08:08 | 0.4 | y | 0 | 658 | 49 | ||
| IIEES SC | GRMI | Z | EPn | E | 2022-09-03 08:08:11 | -0.1 | y | 0 | 691 | 356 | ||
| IIEES SC | SHRO | Z | EPn | E | 2022-09-03 08:08:09 | -15.7 | n | 4 | 794 | 62 | ||
