Magnitude
 :3
Date & Time (UTC) 2022-09-10 16:00:28.0
Date & Time (Local) 1401/6/19  20:30:28.0

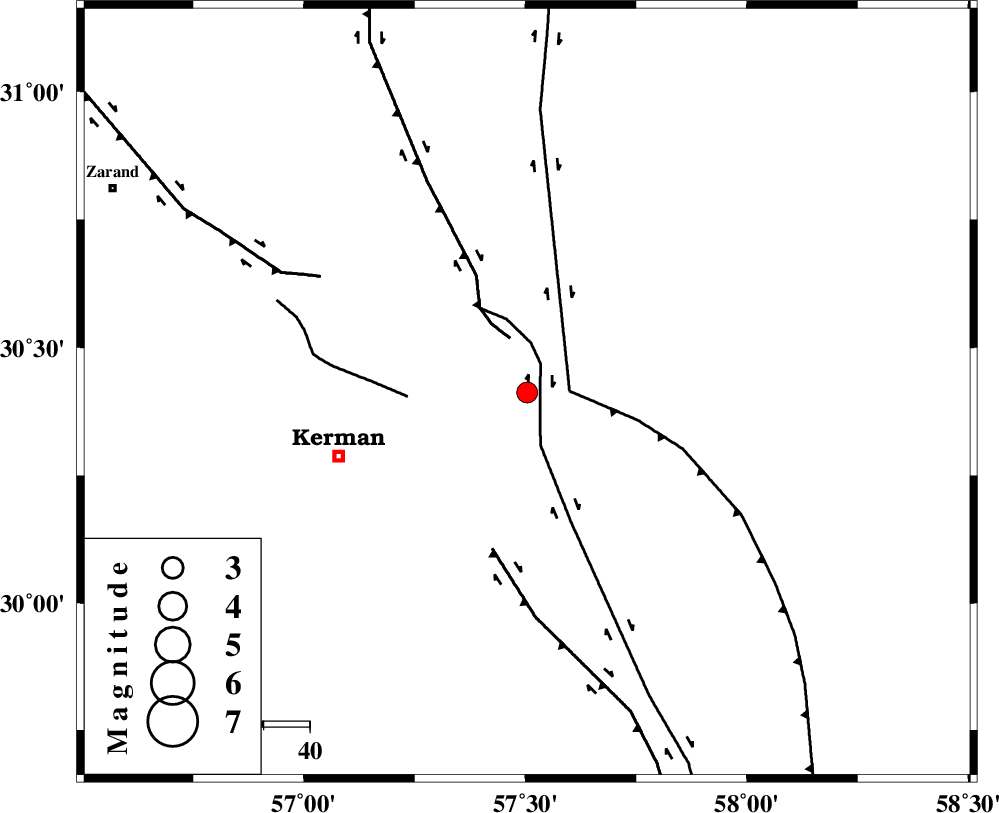

Location Lat:30.412 Lon: 57.504
Region Kerman Province, 43 km North-East of Kerman
Nearest Cities
19 km West of Shahdad, Kerman Province
24 km East of Dehlulu, Kerman Province
25 km North of Sirch, Kerman Province
33 km West of Estehkam, Kerman Province
36 km North West of Jushan, Kerman Province
Depth 12 km
Agency
Faults within 150 km:
GOLBAF_SIRCH_F (Length: 114 km) , Distance to epicenter: 3 km
SHAHDAD_F (Length: 108 km) , Distance to epicenter: 9 km
NAYBAND_F (Length: 258 km) , Distance to epicenter: 9 km
Number of Phases 8
RMS 0.6
Number of Stations 8
Error in Latitude >4 km
Error in Longitude 4 km
Error in Depth 15.5 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here

Amplitude

UIDAgencyStationComponentAmplitudePeriodArrival TimeProccessing TimeSignal Clip
173377IIEES SCBSRNZ 0.212022-09-10 16:01:042022-09-11 04:13:00n
173378IIEES SCBSRNZ 0.212022-09-10 16:01:312022-09-11 04:13:00n
173379IIEES SCYZKHZ 0.0812022-09-10 16:01:202022-09-11 04:13:00n
173380IIEES SCSHRTZ 0.0212022-09-10 16:01:302022-09-11 04:13:00n

Phase

AgencyStationComponentPhase TypePhase QualityFirst MotionObserved Arrival TimeTime ResidualLoc. FlagInput WeightDistanceAzimuth
IIEES SCKRBRZ EPg E2022-09-10 16:00:42-0.6y086236
IIEES SCBSRNZ EPn E2022-09-10 16:01:04-0.8y023142
IIEES SCBSRNZ ES E2022-09-10 16:01:31-0.2y023142
IIEES SCZHSFZ EPn E2022-09-10 16:01:170.5y0327106
IIEES SCYZKHZ EPn E2022-09-10 16:01:200.7y0353308
IIEES SCBNDSZ EPn E2022-09-10 16:01:19-0.6y0358201
IIEES SCTABSZ EPn E2022-09-10 16:01:20-0.6y0361354
IIEES SCSHRTZ EPn E2022-09-10 16:01:30-0.7y044536
