Magnitude |
:4 |
| Date & Time (UTC) | 2022-09-11 07:35:25.2 |
| Date & Time (Local) | 1401/6/20 12:05:25.2 |

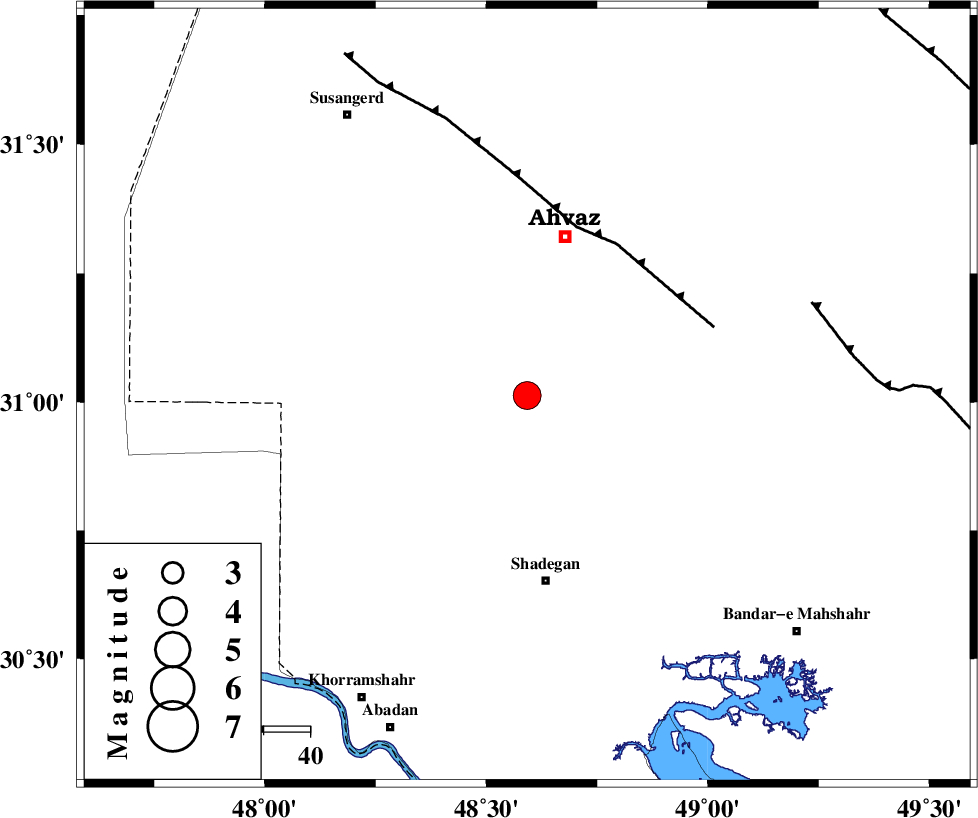

| Location | Lat:31.013 Lon: 48.592 |
| Region | Khoozestan Province, 35 km South of Ahvaz |
Nearest Cities |
|
| 14 km South of Abunangeh, Khoozestan Province | |
| 19 km South of Bahr, Khoozestan Province | |
| 31 km North West of Gharibeh, Khoozestan Province | |
| 34 km North East of Darkhovin, Khoozestan Province | |
| 35 km South of Ahvaz, Khoozestan Province | |
| Depth | 12 km |
| Agency | |
Faults within 150 km: |
|
| AHVAZ_F (Length: 99 km) , Distance to epicenter: 38 km | |
| AGHAJARI_F (Length: 88 km) , Distance to epicenter: 64 km | |
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 112 km | |
| Number of Phases | 15 |
| RMS | 0.4 |
| Number of Stations | 15 |
| Error in Latitude | >2.5 km |
| Error in Longitude | 2.5 km |
| Error in Depth | 11.5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 173398 | IIEES SC | GTMR | Z | 5 | 1 | 2022-09-11 07:35:53 | 2022-09-11 08:02:00 | n |
| 173399 | IIEES SC | KLNJ | Z | 1 | 1 | 2022-09-11 07:36:09 | 2022-09-11 08:02:00 | n |
| 173400 | IIEES SC | KHMZ | Z | 0.5 | 1 | 2022-09-11 07:36:14 | 2022-09-11 08:02:00 | n |
| 173401 | IIEES SC | ILBA | Z | 0.5 | 1 | 2022-09-11 07:36:18 | 2022-09-11 08:02:00 | n |
| 173402 | IIEES SC | ASAO | Z | 0.3 | 1 | 2022-09-11 07:36:25 | 2022-09-11 08:02:00 | n |
| 173403 | IIEES SC | GHVR | Z | 0.4 | 1 | 2022-09-11 07:36:30 | 2022-09-11 08:02:00 | n |
| 173404 | IIEES SC | SNGE | Z | 0.2 | 1 | 2022-09-11 07:36:31 | 2022-09-11 08:02:00 | n |
| 173405 | IIEES SC | YZKH | Z | 0.08 | 1 | 2022-09-11 07:36:46 | 2022-09-11 08:02:00 | n |
| 173406 | IIEES SC | CHTH | Z | 0.07 | 1 | 2022-09-11 07:36:46 | 2022-09-11 08:02:00 | n |
| 173407 | IIEES SC | SRSL | Z | 0.2 | 1 | 2022-09-11 07:36:52 | 2022-09-11 08:02:00 | n |
| 173408 | IIEES SC | KRBR | Z | 0.05 | 1 | 2022-09-11 07:37:11 | 2022-09-11 08:02:00 | n |
| 173409 | IIEES SC | TABS | Z | 0.02 | 1 | 2022-09-11 07:37:18 | 2022-09-11 08:02:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | GTMR | Z | EPg | E | 2022-09-11 07:35:53 | 0.1 | y | 0 | 169 | 17 | ||
| IIEES SC | KLNJ | Z | EPn | E | 2022-09-11 07:36:09 | 0.1 | y | 0 | 286 | 90 | ||
| IIEES SC | KHMZ | Z | EPn | E | 2022-09-11 07:36:14 | 0.7 | y | 0 | 329 | 23 | ||
| IIEES SC | AHRM | Z | EPn | E | 2022-09-11 07:36:15 | 0 | y | 0 | 342 | 134 | ||
| IIEES SC | ILBA | Z | EPn | E | 2022-09-11 07:36:18 | 0.3 | y | 0 | 366 | 322 | ||
| IIEES SC | ASAO | Z | EPn | E | 2022-09-11 07:36:25 | 0.2 | y | 0 | 414 | 19 | ||
| IIEES SC | GHVR | Z | EPn | E | 2022-09-11 07:36:30 | 0.4 | y | 0 | 458 | 33 | ||
| IIEES SC | SNGE | Z | EPn | E | 2022-09-11 07:36:31 | 0.1 | y | 0 | 467 | 346 | ||
| IIEES SC | GHIR | Z | EPn | E | 2022-09-11 07:36:38 | 0.1 | y | 0 | 522 | 125 | ||
| IIEES SC | YZKH | Z | EPn | E | 2022-09-11 07:36:46 | -0.5 | y | 0 | 589 | 75 | ||
| IIEES SC | CHTH | Z | EPn | E | 2022-09-11 07:36:46 | -0.7 | y | 0 | 592 | 23 | ||
| IIEES SC | SRSL | Z | EPn | E | 2022-09-11 07:36:52 | -1.1 | y | 0 | 647 | 333 | ||
| IIEES SC | KRBR | Z | EPn | E | 2022-09-11 07:37:11 | -0.3 | y | 0 | 792 | 98 | ||
| IIEES SC | BNDS | Z | EPn | E | 2022-09-11 07:37:32 | 15.1 | n | 4 | 839 | 119 | ||
| IIEES SC | TABS | Z | EPn | E | 2022-09-11 07:37:18 | -0.4 | y | 0 | 854 | 70 | ||
