Magnitude |
:3.4 |
| Date & Time (UTC) | 2022-09-11 07:43:32.3 |
| Date & Time (Local) | 1401/6/20 12:13:32.3 |

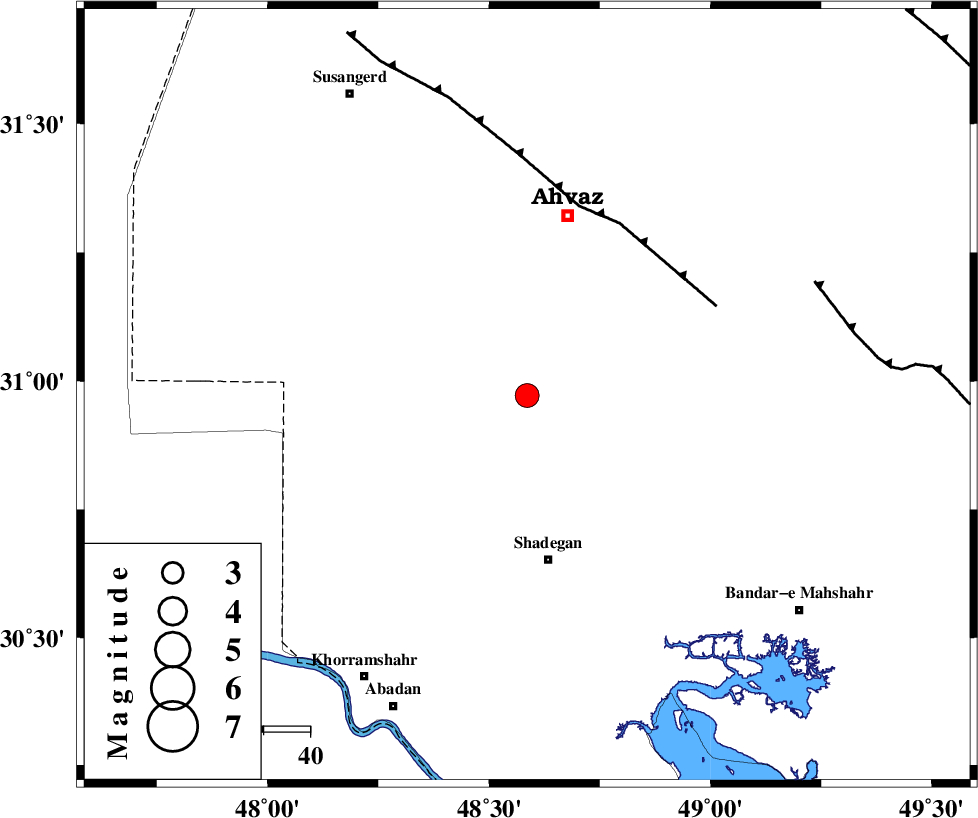

| Location | Lat:30.972 Lon: 48.586 |
| Region | Khoozestan Province, 36 km North of Shadegan |
Nearest Cities |
|
| 19 km South of Abunangeh, Khoozestan Province | |
| 23 km South of Bahr, Khoozestan Province | |
| 28 km North West of Gharibeh, Khoozestan Province | |
| 30 km North East of Darkhovin, Khoozestan Province | |
| 36 km North of Shadegan, Khoozestan Province | |
| Depth | 12 km |
| Agency | |
Faults within 150 km: |
|
| AHVAZ_F (Length: 99 km) , Distance to epicenter: 42 km | |
| AGHAJARI_F (Length: 88 km) , Distance to epicenter: 67 km | |
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 116 km | |
| Number of Phases | 8 |
| RMS | 0.2 |
| Number of Stations | 8 |
| Error in Latitude | >2.8 km |
| Error in Longitude | 2.8 km |
| Error in Depth | 9.2 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 173410 | IIEES SC | GTMR | Z | 1 | 1 | 2022-09-11 07:44:00 | 2022-09-11 08:27:00 | n |
| 173411 | IIEES SC | ILBA | Z | 0.09 | 1 | 2022-09-11 07:44:26 | 2022-09-11 08:27:00 | n |
| 173412 | IIEES SC | ASAO | Z | 0.06 | 1 | 2022-09-11 07:44:32 | 2022-09-11 08:27:00 | n |
| 173413 | IIEES SC | GHVR | Z | 0.07 | 1 | 2022-09-11 07:44:37 | 2022-09-11 08:27:00 | n |
| 173414 | IIEES SC | SNGE | Z | 0.07 | 1 | 2022-09-11 07:44:39 | 2022-09-11 08:27:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | GTMR | Z | EPg | E | 2022-09-11 07:44:00 | -0.1 | y | 0 | 173 | 17 | ||
| IIEES SC | KLNJ | Z | EPn | E | 2022-09-11 07:44:16 | 0 | y | 0 | 287 | 89 | ||
| IIEES SC | KHMZ | Z | EPn | E | 2022-09-11 07:44:22 | 0.5 | y | 0 | 333 | 23 | ||
| IIEES SC | ILBA | Z | EPn | E | 2022-09-11 07:44:26 | 0.2 | y | 0 | 370 | 323 | ||
| IIEES SC | ASAO | Z | EPn | E | 2022-09-11 07:44:32 | -0.3 | y | 0 | 419 | 19 | ||
| IIEES SC | GHVR | Z | EPn | E | 2022-09-11 07:44:37 | 0 | y | 0 | 462 | 33 | ||
| IIEES SC | SNGE | Z | EPn | E | 2022-09-11 07:44:39 | 0 | y | 0 | 471 | 346 | ||
| IIEES SC | SRSL | Z | EPn | E | 2022-09-11 07:45:00 | -1.1 | y | 0 | 651 | 333 | ||
