Magnitude |
:3.4 |
| Date & Time (UTC) | 2022-09-13 18:24:49.5 |
| Date & Time (Local) | 1401/6/22 22:54:49.5 |

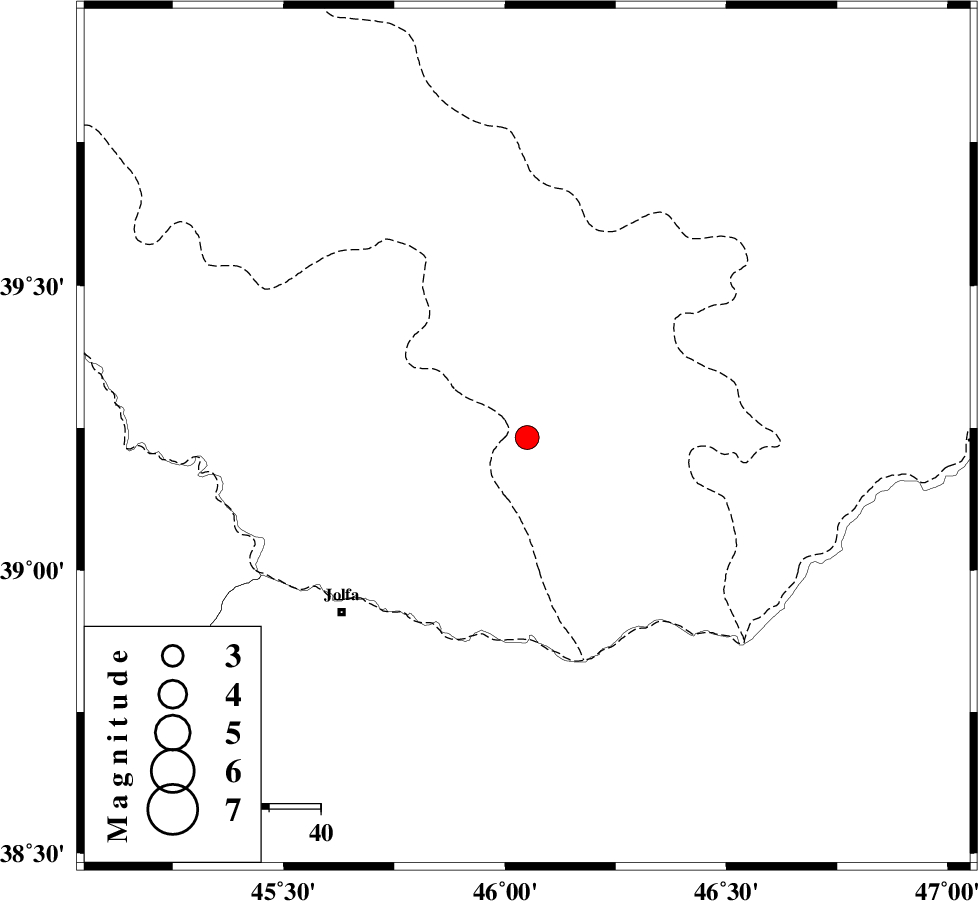

| Location | Lat:39.233 Lon: 46.05 |
| Region | Azerbaijan, 55 km -East of Nakhicevan |
Nearest Cities |
|
| 49 km North East of Daran, Azarbaijan Sharghi Province | |
| 50 km North East of Jolfa, Azarbaijan Sharghi Province | |
| 52 km North East of Orsi, Azarbaijan Sharghi Province | |
| 52 km North East of Shojae, Azarbaijan Sharghi Province | |
| 55 km North East of Nakhicevan, Azerbaijan Province | |
| Depth | 12 km |
| Agency | |
Faults within 150 km: |
|
| DASHT_E_MOGHAN__ (Length: 104 km) , Distance to epicenter: 86 km | |
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 104 km | |
| N_TABRIZ_F3 (Length: 66 km) , Distance to epicenter: 104 km | |
| Number of Phases | 13 |
| RMS | 0.4 |
| Number of Stations | 13 |
| Error in Latitude | >1.4 km |
| Error in Longitude | 1.4 km |
| Error in Depth | 6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 173519 | IIEES SC | MRD | Z | 8 | 1 | 2022-09-13 18:25:01 | 2022-09-14 05:25:00 | n |
| 173520 | IIEES SC | MRD | Z | 8 | 1 | 2022-09-13 18:25:09 | 2022-09-14 05:25:00 | n |
| 173521 | IIEES SC | MAKU | Z | 0.9 | 1 | 2022-09-13 18:25:09 | 2022-09-14 05:25:00 | n |
| 173522 | IIEES SC | MAKU | Z | 0.9 | 1 | 2022-09-13 18:25:24 | 2022-09-14 05:25:00 | n |
| 173523 | IIEES SC | GRMI | Z | 0.7 | 1 | 2022-09-13 18:25:36 | 2022-09-14 05:25:00 | n |
| 173524 | IIEES SC | GRMI | Z | 0.7 | 1 | 2022-09-13 18:25:15 | 2022-09-14 05:25:00 | n |
| 173525 | IIEES SC | AZR | Z | 3 | 1 | 2022-09-13 18:25:18 | 2022-09-14 05:25:00 | n |
| 173526 | IIEES SC | MAHB | Z | 0.3 | 1 | 2022-09-13 18:25:32 | 2022-09-14 05:25:00 | n |
| 173527 | IIEES SC | SRSL | Z | 0.08 | 1 | 2022-09-13 18:25:41 | 2022-09-14 05:25:00 | n |
| 173528 | IIEES SC | SNGE | Z | 0.06 | 1 | 2022-09-13 18:25:56 | 2022-09-14 05:25:00 | n |
| 173529 | IIEES SC | ASAO | Z | 0.01 | 1 | 2022-09-13 18:26:15 | 2022-09-14 05:25:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | MRD | Z | EPg | E | 2022-09-13 18:25:01 | 0.1 | y | 0 | 65 | 208 | ||
| IIEES SC | MRD | Z | ESg | E | 2022-09-13 18:25:09 | -0.5 | y | 0 | 65 | 208 | ||
| IIEES SC | MAKU | Z | EPg | E | 2022-09-13 18:25:09 | 0.2 | y | 0 | 119 | 277 | ||
| IIEES SC | MAKU | Z | ESg | E | 2022-09-13 18:25:24 | -0.2 | y | 0 | 119 | 277 | ||
| IIEES SC | GRMI | Z | EPg | E | 2022-09-13 18:25:15 | -0.9 | y | 0 | 166 | 106 | ||
| IIEES SC | GRMI | Z | ESg | E | 2022-09-13 18:25:36 | -0.1 | y | 0 | 166 | 106 | ||
| IIEES SC | AZR | Z | EPg | E | 2022-09-13 18:25:18 | 0.6 | y | 0 | 173 | 182 | ||
| IIEES SC | MAHB | Z | EPn | E | 2022-09-13 18:25:32 | 0.3 | y | 0 | 276 | 186 | ||
| IIEES SC | SRSL | Z | EPn | E | 2022-09-13 18:25:41 | 1.4 | y | 0 | 340 | 189 | ||
| IIEES SC | ZNJK | Z | EPn | E | 2022-09-13 18:25:40 | -2.5 | n | 4 | 367 | 141 | ||
| IIEES SC | GIDE | Z | EPn | E | 2022-09-13 18:25:49 | 0.1 | y | 0 | 419 | 128 | ||
| IIEES SC | SNGE | Z | EPn | E | 2022-09-13 18:25:56 | 0.1 | y | 0 | 474 | 166 | ||
| IIEES SC | ASAO | Z | EPn | E | 2022-09-13 18:26:15 | -0.1 | y | 0 | 629 | 146 | ||
