Magnitude |
:3.2 |
| Date & Time (UTC) | 2022-09-17 23:50:23.4 |
| Date & Time (Local) | 1401/6/27 04:20:23.4 |
| Location | Lat:27.753 Lon: 54.208 |
| Region | Fars Province, 15 km -West of Lar |
Nearest Cities |
|
| 12 km North of Grash, Fars Province | |
| 15 km North West of Lar, Fars Province | |
| 18 km North West of Latifi, Fars Province | |
| 19 km East of Avaz, Fars Province | |
| 24 km West of Dehkuyeh, Fars Province | |
| Depth | 12 km |
| Agency | |

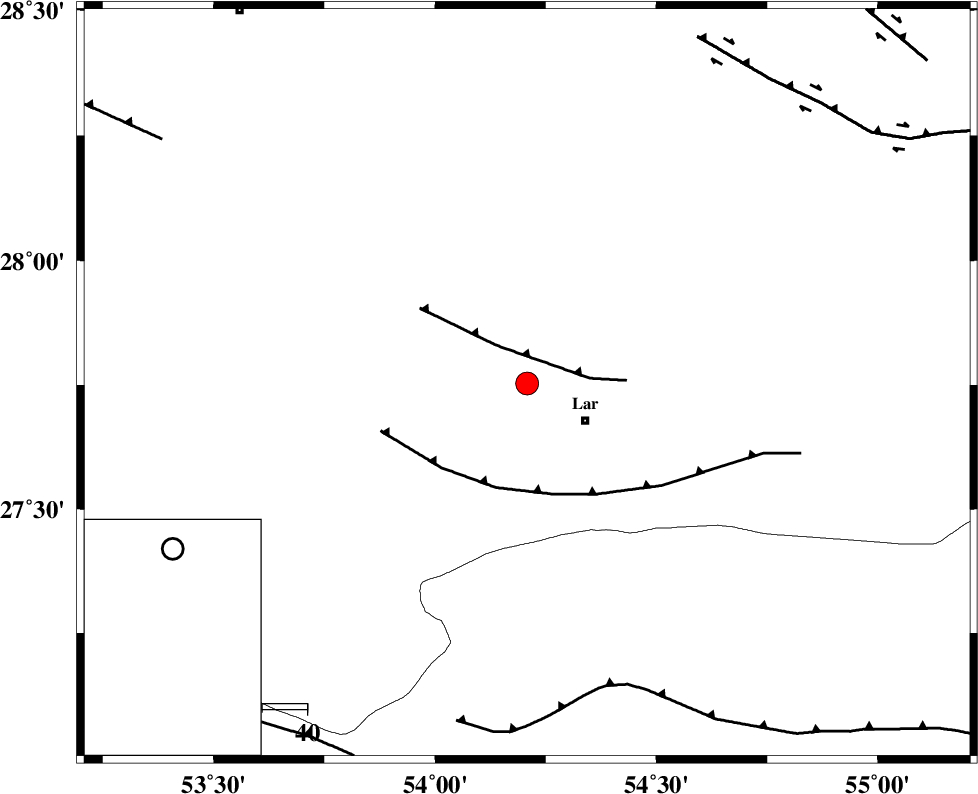

Faults within 150 km: |
|
| BERIZ_F (Length: 49 km) , Distance to epicenter: 11 km | |
| LAR_F (Length: 99 km) , Distance to epicenter: 24 km | |
| MFF1 (Length: 180 km) , Distance to epicenter: 70 km | |
| Number of Phases | 13 |
| RMS | 0.4 |
| Number of Stations | 13 |
| Error in Latitude | >2.1 km |
| Error in Longitude | 2.1 km |
| Error in Depth | 9.6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 173551 | IIEES SC | LMD1 | Z | 2 | 1 | 2022-09-17 23:50:42 | 2022-09-19 04:27:00 | n |
| 173552 | IIEES SC | KRBR | Z | 0.2 | 1 | 2022-09-17 23:51:14 | 2022-09-19 04:27:00 | n |
| 173553 | IIEES SC | UOSS | Z | 0.04 | 1 | 2022-09-17 23:51:17 | 2022-09-19 04:27:00 | n |
| 173554 | IIEES SC | JSSH | Z | 0.08 | 1 | 2022-09-17 23:51:18 | 2022-09-19 04:27:00 | n |
| 173555 | IIEES SC | KLNJ | Z | 0.08 | 1 | 2022-09-17 23:51:25 | 2022-09-19 04:27:00 | n |
| 173556 | IIEES SC | YZKH | Z | 0.02 | 1 | 2022-09-17 23:51:35 | 2022-09-19 04:27:00 | n |
| 173557 | IIEES SC | BSRN | Z | 0.01 | 1 | 2022-09-17 23:51:54 | 2022-09-19 04:27:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | LMD1 | Z | EPg | E | 2022-09-17 23:50:42 | -0.2 | y | 0 | 113 | 246 | ||
| IIEES SC | GHIR | Z | EPg | E | 2022-09-17 23:50:46 | 0.8 | y | 0 | 134 | 296 | ||
| IIEES SC | BNDS | Z | EPg | E | 2022-09-17 23:50:55 | 0.1 | y | 0 | 198 | 101 | ||
| IIEES SC | AHRM | Z | EPn | E | 2022-09-17 23:51:10 | 0.6 | y | 0 | 311 | 293 | ||
| IIEES SC | KRBR | Z | EPn | E | 2022-09-17 23:51:14 | -0.4 | y | 0 | 351 | 45 | ||
| IIEES SC | UOSS | Z | EPn | E | 2022-09-17 23:51:17 | 0.5 | y | 0 | 369 | 147 | ||
| IIEES SC | JSSH | Z | EPn | E | 2022-09-17 23:51:18 | 0.4 | y | 0 | 376 | 123 | ||
| IIEES SC | KLNJ | Z | EPn | E | 2022-09-17 23:51:25 | -0.6 | y | 0 | 441 | 325 | ||
| IIEES SC | KBAM | Z | EPn | E | 2022-09-17 23:51:28 | 1.7 | n | 4 | 443 | 70 | ||
| IIEES SC | YZKH | Z | EPn | E | 2022-09-17 23:51:35 | -0.2 | y | 0 | 515 | 4 | ||
| IIEES SC | NASN | Z | EPn | E | 2022-09-17 23:51:39 | -3.4 | n | 4 | 575 | 346 | ||
| IIEES SC | BSRN | Z | EPn | E | 2022-09-17 23:51:54 | 0.3 | y | 0 | 666 | 46 | ||
| IIEES SC | CHBR | Z | EPn | E | 2022-09-17 23:51:53 | -0.8 | y | 0 | 669 | 111 | ||
