Magnitude |
:3 |
| Date & Time (UTC) | 2022-09-28 19:30:26.6 |
| Date & Time (Local) | 1401/7/6 23:00:26.6 |

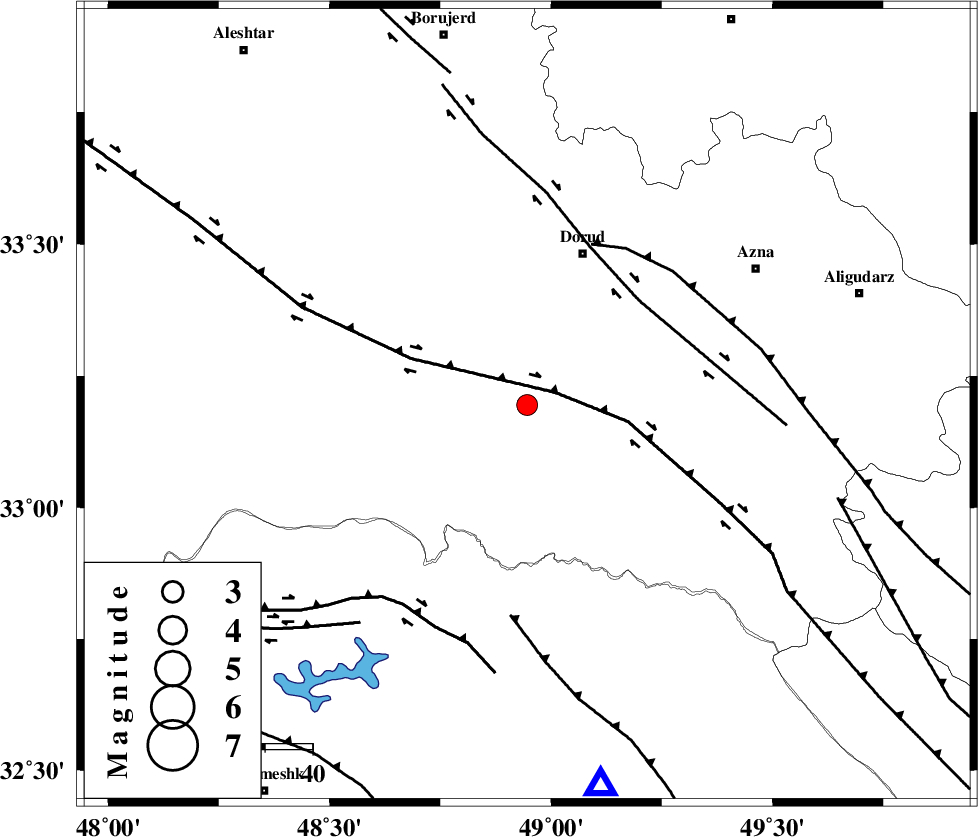

| Location | Lat:33.195 Lon: 48.946 |
| Region | Lorestan Province, 34 km South-West of Dorud |
Nearest Cities |
|
| 8 km of Sartang barzeh, Lorestan Province | |
| 13 km North East of Chamsangar, Lorestan Province | |
| 17 km North of Bargsar, Lorestan Province | |
| 21 km North West of Shulabad, Lorestan Province | |
| 34 km South West of Dorud, Lorestan Province | |
| Depth | 8 km |
| Agency | |
Faults within 150 km: |
|
| HZF4 (Length: 492 km) , Distance to epicenter: 6 km | |
| DORUD (Length: 100 km) , Distance to epicenter: 32 km | |
| MAIN_ZAGROS_R_F (Length: 1106 km) , Distance to epicenter: 36 km | |
| Number of Phases | 15 |
| RMS | 0.5 |
| Number of Stations | 15 |
| Error in Latitude | >2.5 km |
| Error in Longitude | 2.5 km |
| Error in Depth | 15.3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 173860 | IIEES SC | ASAO | Z | 0.3 | 1 | 2022-09-28 19:30:55 | 2022-10-01 06:22:00 | n |
| 173861 | IIEES SC | KCHF | Z | 0.2 | 1 | 2022-09-28 19:31:02 | 2022-10-01 06:22:00 | n |
| 173862 | IIEES SC | HGHA | Z | 0.4 | 1 | 2022-09-28 19:31:07 | 2022-10-01 06:22:00 | n |
| 173863 | IIEES SC | GHVR | Z | 0.2 | 1 | 2022-09-28 19:31:07 | 2022-10-01 06:22:00 | n |
| 173864 | IIEES SC | KLNJ | Z | 0.07 | 1 | 2022-09-28 19:31:18 | 2022-10-01 06:22:00 | n |
| 173865 | IIEES SC | CHTH | Z | 0.03 | 1 | 2022-09-28 19:31:20 | 2022-10-01 06:22:00 | n |
| 173866 | IIEES SC | NASN | Z | 0.03 | 1 | 2022-09-28 19:31:19 | 2022-10-01 06:22:00 | n |
| 173867 | IIEES SC | DAMV | Z | 0.06 | 1 | 2022-09-28 19:31:22 | 2022-10-01 06:22:00 | n |
| 173868 | IIEES SC | GIDE | Z | 0.02 | 1 | 2022-09-28 19:31:27 | 2022-10-01 06:22:00 | n |
| 173869 | IIEES SC | SRSL | Z | 0.03 | 1 | 2022-09-28 19:31:33 | 2022-10-01 06:22:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | GTMR | Z | EPg | E | 2022-09-28 19:30:39 | -1.1 | n | 4 | 82 | 169 | ||
| IIEES SC | KHMZ | Z | EPg | E | 2022-09-28 19:30:43 | -2.7 | n | 4 | 112 | 57 | ||
| IIEES SC | ASAO | Z | EPg | E | 2022-09-28 19:30:55 | -1 | y | 0 | 180 | 34 | ||
| IIEES SC | KCHF | Z | EPn | E | 2022-09-28 19:31:02 | 0.6 | y | 0 | 213 | 304 | ||
| IIEES SC | HGHA | Z | EPn | E | 2022-09-28 19:31:07 | 0.3 | y | 0 | 254 | 358 | ||
| IIEES SC | GHVR | Z | EPn | E | 2022-09-28 19:31:07 | 0.9 | y | 0 | 256 | 56 | ||
| IIEES SC | ILBA | Z | EPn | E | 2022-09-28 19:31:06 | -0.5 | y | 0 | 259 | 281 | ||
| IIEES SC | KLNJ | Z | EPn | E | 2022-09-28 19:31:18 | 0.2 | y | 0 | 348 | 134 | ||
| IIEES SC | CHTH | Z | EPn | E | 2022-09-28 19:31:20 | 0 | y | 0 | 361 | 34 | ||
| IIEES SC | NASN | Z | EPn | E | 2022-09-28 19:31:19 | -0.7 | y | 0 | 364 | 97 | ||
| IIEES SC | ZNJK | Z | EPn | E | 2022-09-28 19:31:26 | 3.3 | n | 4 | 386 | 356 | ||
| IIEES SC | DAMV | Z | EPn | E | 2022-09-28 19:31:22 | -0.6 | y | 0 | 388 | 46 | ||
| IIEES SC | GIDE | Z | EPn | E | 2022-09-28 19:31:27 | 0.4 | y | 0 | 421 | 11 | ||
| IIEES SC | SRSL | Z | EPn | E | 2022-09-28 19:31:33 | 1.1 | y | 0 | 464 | 316 | ||
| IIEES SC | SHRO | Z | EPn | E | 2022-09-28 19:31:44 | -19.9 | n | 4 | 720 | 64 | ||
