Magnitude |
:3.5 |
| Date & Time (UTC) | 2022-10-01 21:19:57.7 |
| Date & Time (Local) | 1401/7/10 00:49:57.7 |

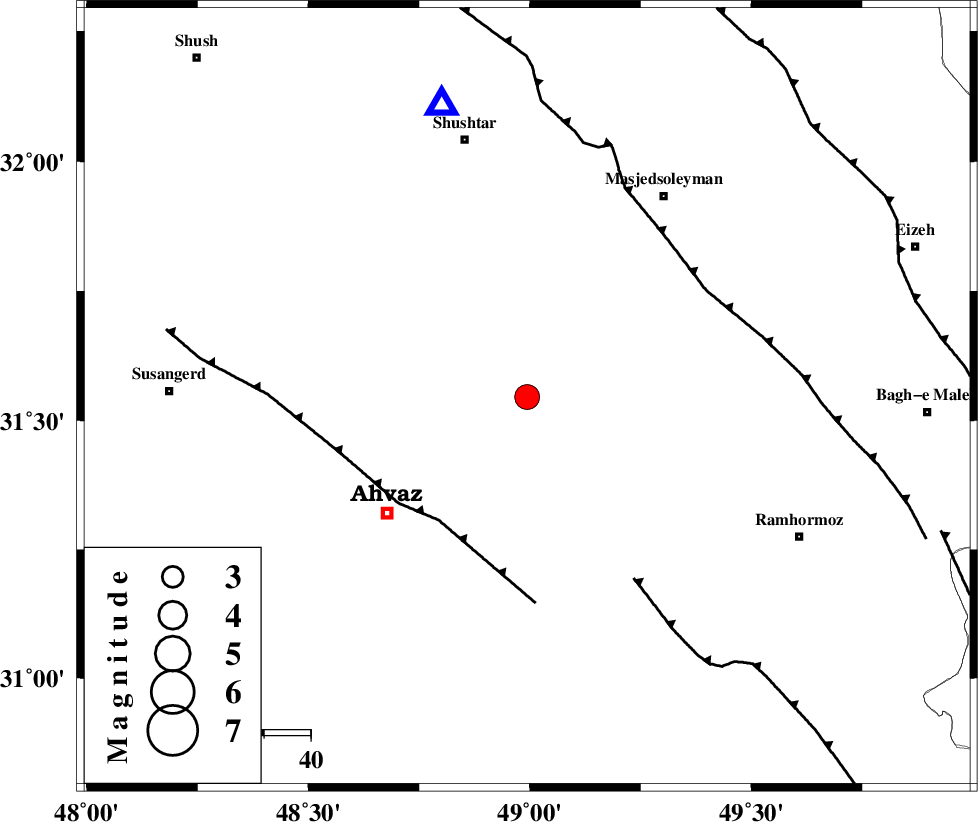

| Location | Lat:31.545 Lon: 48.994 |
| Region | Khoozestan Province, 39 km North-East of Ahvaz |
Nearest Cities |
|
| 8 km of Talieh, Khoozestan Province | |
| 12 km East of Mollasani, Khoozestan Province | |
| 13 km North East of Veys, Khoozestan Province | |
| 33 km South East of Arabhasan, Khoozestan Province | |
| 37 km West of Gazin, Khoozestan Province | |
| Depth | 13 km |
| Agency | |
Faults within 150 km: |
|
| AHVAZ_F (Length: 99 km) , Distance to epicenter: 33 km | |
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 45 km | |
| AGHAJARI_F (Length: 88 km) , Distance to epicenter: 45 km | |
| Number of Phases | 19 |
| RMS | 0.3 |
| Number of Stations | 19 |
| Error in Latitude | >1.3 km |
| Error in Longitude | 1.3 km |
| Error in Depth | 2.4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 173897 | IIEES SC | AHWZ | Z | 40 | 1 | 2022-10-01 21:20:05 | 2022-10-02 04:27:00 | n |
| 173898 | IIEES SC | GTMR | Z | 1 | 1 | 2022-10-01 21:20:15 | 2022-10-02 04:27:00 | n |
| 173899 | IIEES SC | KLNJ | Z | 0.9 | 1 | 2022-10-01 21:20:37 | 2022-10-02 04:27:00 | n |
| 173900 | IIEES SC | KHMZ | Z | 0.3 | 1 | 2022-10-01 21:20:38 | 2022-10-02 04:27:00 | n |
| 173901 | IIEES SC | ASAO | Z | 0.2 | 1 | 2022-10-01 21:20:48 | 2022-10-02 04:27:00 | n |
| 173902 | IIEES SC | ILBA | Z | 0.1 | 1 | 2022-10-01 21:20:48 | 2022-10-02 04:27:00 | n |
| 173903 | IIEES SC | KCHF | Z | 0.1 | 1 | 2022-10-01 21:20:50 | 2022-10-02 04:27:00 | n |
| 173904 | IIEES SC | AHRM | Z | 0.2 | 1 | 2022-10-01 21:20:51 | 2022-10-02 04:27:00 | n |
| 173905 | IIEES SC | NASN | Z | 0.1 | 1 | 2022-10-01 21:20:54 | 2022-10-02 04:27:00 | n |
| 173906 | IIEES SC | GHVR | Z | 0.2 | 1 | 2022-10-01 21:20:53 | 2022-10-02 04:27:00 | n |
| 173907 | IIEES SC | CHTH | Z | 0.03 | 1 | 2022-10-01 21:21:10 | 2022-10-02 04:27:00 | n |
| 173908 | IIEES SC | DAMV | Z | 0.07 | 1 | 2022-10-01 21:21:11 | 2022-10-02 04:27:00 | n |
| 173909 | IIEES SC | YZKH | Z | 0.04 | 1 | 2022-10-01 21:21:12 | 2022-10-02 04:27:00 | n |
| 173910 | IIEES SC | ABGH | Z | 0.02 | 1 | 2022-10-01 21:21:43 | 2022-10-02 04:27:00 | n |
| 173911 | IIEES SC | TABS | Z | 0.02 | 1 | 2022-10-01 21:21:44 | 2022-10-02 04:27:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | AHWZ | Z | EPg | E | 2022-10-01 21:20:05 | 0.1 | y | 0 | 41 | 234 | ||
| IIEES SC | GTMR | Z | EPg | E | 2022-10-01 21:20:15 | -0.2 | y | 0 | 103 | 6 | ||
| IIEES SC | KLNJ | Z | EPn | E | 2022-10-01 21:20:37 | 0.1 | y | 0 | 254 | 104 | ||
| IIEES SC | KHMZ | Z | EPn | E | 2022-10-01 21:20:38 | 0.8 | y | 0 | 260 | 21 | ||
| IIEES SC | ASAO | Z | EPn | E | 2022-10-01 21:20:48 | 0.1 | y | 0 | 347 | 16 | ||
| IIEES SC | ILBA | Z | EPn | E | 2022-10-01 21:20:48 | -0.5 | y | 0 | 349 | 311 | ||
| IIEES SC | KCHF | Z | EPn | E | 2022-10-01 21:20:50 | 0.7 | y | 0 | 354 | 329 | ||
| IIEES SC | AHRM | Z | EPn | E | 2022-10-01 21:20:51 | -0.3 | y | 0 | 371 | 143 | ||
| IIEES SC | NASN | Z | EPn | E | 2022-10-01 21:20:54 | 0.7 | y | 0 | 386 | 69 | ||
| IIEES SC | GHVR | Z | EPn | E | 2022-10-01 21:20:53 | 0.2 | y | 0 | 388 | 33 | ||
| IIEES SC | SNGE | Z | EPn | E | 2022-10-01 21:20:58 | 0 | y | 0 | 422 | 339 | ||
| IIEES SC | CHTH | Z | EPn | E | 2022-10-01 21:21:10 | -0.1 | y | 0 | 523 | 22 | ||
| IIEES SC | DAMV | Z | EPn | E | 2022-10-01 21:21:11 | -0.2 | y | 0 | 531 | 31 | ||
| IIEES SC | YZKH | Z | EPn | E | 2022-10-01 21:21:12 | 0.1 | y | 0 | 537 | 80 | ||
| IIEES SC | GLO | Z | EPn | E | 2022-10-01 21:21:34 | 0.7 | y | 0 | 708 | 39 | ||
| IIEES SC | ABGH | Z | EPn | E | 2022-10-01 21:21:43 | -0.2 | y | 0 | 786 | 43 | ||
| IIEES SC | TABS | Z | EPn | E | 2022-10-01 21:21:44 | -0.1 | y | 0 | 798 | 73 | ||
| IIEES SC | KKHK | Z | EPn | E | 2022-10-01 21:22:02 | -0.7 | y | 0 | 947 | 72 | ||
| IIEES SC | RAYN | Z | EPn | E | 2022-10-01 21:21:59 | -4.4 | n | 4 | 954 | 201 | ||
