Map Region : lat:-  lon:-

  North
West   East
  South
Show Cities
Show Foreign Cities
Show Fault Mechanism
Show Province Boundaries
Show Stations
Map Title

Magnitude
 :3
Date & Time (UTC) 2022-10-07 08:16:08.7
Date & Time (Local) 1401/7/15  11:46:08.7

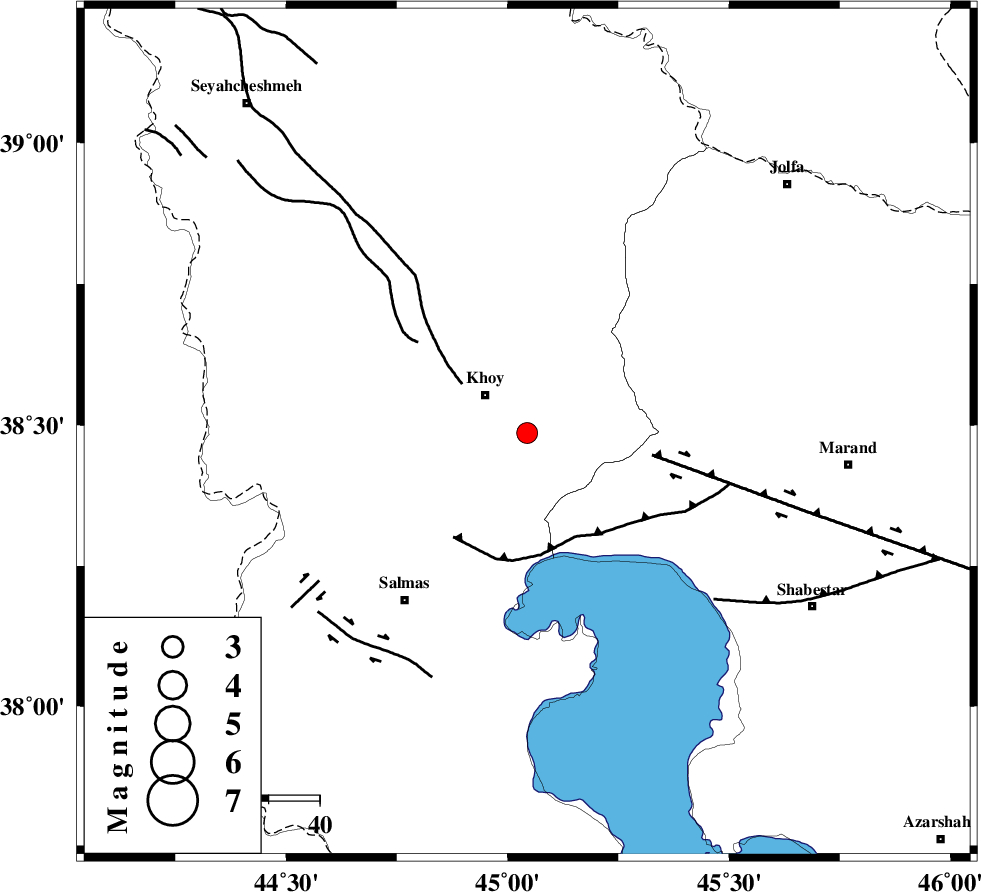

Location Lat:38.486 Lon: 45.044
Region Azarbaijan Gharbi Province, 11 km of Khoy
Nearest Cities
3 km North of Dizaj diz, Azarbaijan Gharbi Province
9 km of Saeedabad, Azarbaijan Gharbi Province
11 km of Khoy, Azarbaijan Gharbi Province
11 km North East of Quruq, Azarbaijan Gharbi Province
20 km South of Dizaj, Azarbaijan Gharbi Province
Depth 12 km
Agency
Faults within 150 km:
KHOY (Length: 100 km) , Distance to epicenter: 16 km
N_TABRIZ_F3 (Length: 66 km) , Distance to epicenter: 22 km
N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 25 km
Number of Phases 9
RMS 0.5
Number of Stations 9
Error in Latitude >2.5 km
Error in Longitude 2.5 km
Error in Depth 6 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here

Amplitude

UIDAgencyStationComponentAmplitudePeriodArrival TimeProccessing TimeSignal Clip
174067IIEES SCGNIZ 0.812022-10-07 08:16:392022-10-09 05:11:00n
174068IIEES SCGRMIZ 0.212022-10-07 08:16:482022-10-09 05:11:00n
174069IIEES SCSRSLZ 0.0912022-10-07 08:16:482022-10-09 05:11:00n
174070IIEES SCSNGEZ 0.0212022-10-07 08:17:092022-10-09 05:11:00n

Phase

AgencyStationComponentPhase TypePhase QualityFirst MotionObserved Arrival TimeTime ResidualLoc. FlagInput WeightDistanceAzimuth
IIEES SCMRDZ EPg E2022-10-07 08:16:19-0.3y06366
IIEES SCMAKUZ EPg E2022-10-07 08:16:25-0.6y0101342
IIEES SCAZRZ EPg E2022-10-07 08:16:28-0.4y0122137
IIEES SCGNIZ EPg E2022-10-07 08:16:390.3y0186352
IIEES SCGRMIZ EPn E2022-10-07 08:16:480.8y025182
IIEES SCSRSLZ EPn E2022-10-07 08:16:480.4y0255172
IIEES SCGUROZ EPn E2022-10-07 08:16:490.1y0263272
IIEES SCZNJKZ EPn E2022-10-07 08:16:54-9.3n4380122
IIEES SCSNGEZ EPn E2022-10-07 08:17:09-0.6y0429151
