Magnitude |
:3.6 |
| Date & Time (UTC) | 2022-10-10 22:18:10.2 |
| Date & Time (Local) | 1401/7/19 01:48:10.2 |

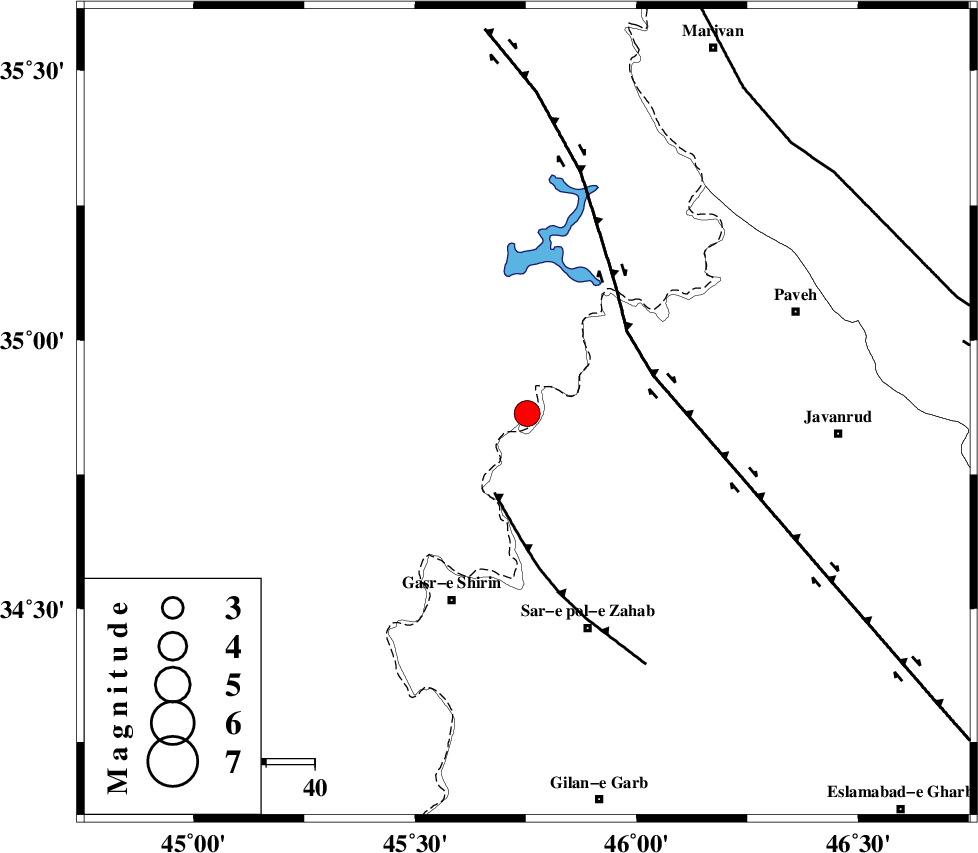

| Location | Lat:34.864 Lon: 45.753 |
| Region | Iraq, 13 km North of Tazehabad |
Nearest Cities |
|
| 12 km North of Tappeh rash, Kermanshah Province | |
| 13 km North of Tazehabad, Kermanshah Province | |
| 18 km North of Gardehnu, Kermanshah Province | |
| 20 km North West of Dehsheykh, Kermanshah Province | |
| 29 km South West of Markhil, Kermanshah Province | |
| Depth | 10 km |
| Agency | |
Faults within 150 km: |
|
| MFF8 (Length: 48 km) , Distance to epicenter: 18 km | |
| HZF4 (Length: 492 km) , Distance to epicenter: 27 km | |
| PIRANSHAHR_F (Length: 253 km) , Distance to epicenter: 78 km | |
| Number of Phases | 21 |
| RMS | 0.5 |
| Number of Stations | 21 |
| Error in Latitude | >1.8 km |
| Error in Longitude | 1.8 km |
| Error in Depth | 5.5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 174201 | IIEES SC | KCHF | Z | 3 | 1 | 2022-10-10 22:18:32 | 2022-10-11 06:49:00 | n |
| 174202 | IIEES SC | KCHF | Z | 3 | 1 | 2022-10-10 22:18:49 | 2022-10-11 06:49:00 | n |
| 174203 | IIEES SC | ILBA | Z | 2 | 1 | 2022-10-10 22:18:33 | 2022-10-11 06:49:00 | n |
| 174204 | IIEES SC | ILBA | Z | 2 | 1 | 2022-10-10 22:18:51 | 2022-10-11 06:49:00 | n |
| 174205 | IIEES SC | SRSL | Z | 0.9 | 1 | 2022-10-10 22:18:35 | 2022-10-11 06:49:00 | n |
| 174206 | IIEES SC | MAHB | Z | 0.8 | 1 | 2022-10-10 22:18:43 | 2022-10-11 06:49:00 | n |
| 174207 | IIEES SC | HGHA | Z | 0.6 | 1 | 2022-10-10 22:18:55 | 2022-10-11 06:49:00 | n |
| 174208 | IIEES SC | ASAO | Z | 0.1 | 1 | 2022-10-10 22:19:07 | 2022-10-11 06:49:00 | n |
| 174209 | IIEES SC | KHMZ | Z | 0.1 | 1 | 2022-10-10 22:19:08 | 2022-10-11 06:49:00 | n |
| 174210 | IIEES SC | MRD | Z | 0.1 | 1 | 2022-10-10 22:19:11 | 2022-10-11 06:49:00 | n |
| 174211 | IIEES SC | GRMI | Z | 0.04 | 1 | 2022-10-10 22:19:18 | 2022-10-11 06:49:00 | n |
| 174212 | IIEES SC | GHVR | Z | 0.1 | 1 | 2022-10-10 22:19:20 | 2022-10-11 06:49:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | KCHF | Z | EPg | E | 2022-10-10 22:18:32 | -0.2 | y | 0 | 135 | 119 | ||
| IIEES SC | KCHF | Z | ESg | E | 2022-10-10 22:18:49 | 0.3 | y | 0 | 135 | 119 | ||
| IIEES SC | ILBA | Z | EPg | E | 2022-10-10 22:18:33 | -0.8 | y | 0 | 144 | 163 | ||
| IIEES SC | ILBA | Z | ESg | E | 2022-10-10 22:18:51 | 0.3 | y | 0 | 144 | 163 | ||
| IIEES SC | SNGE | Z | EPg | E | 2022-10-10 22:18:35 | 0.2 | y | 0 | 148 | 80 | ||
| IIEES SC | SRSL | Z | EPg | E | 2022-10-10 22:18:35 | -0.5 | y | 0 | 152 | 349 | ||
| IIEES SC | MAHB | Z | EPn | E | 2022-10-10 22:18:43 | -0.7 | y | 0 | 211 | 359 | ||
| IIEES SC | HGHA | Z | EPn | E | 2022-10-10 22:18:55 | 0.3 | y | 0 | 291 | 76 | ||
| IIEES SC | AZR | Z | EPn | E | 2022-10-10 22:18:58 | 0.7 | y | 0 | 313 | 4 | ||
| IIEES SC | ZNJK | Z | EPn | E | 2022-10-10 22:18:43 | -16.1 | n | 4 | 332 | 53 | ||
| IIEES SC | ASAO | Z | EPn | E | 2022-10-10 22:19:07 | 0.3 | y | 0 | 393 | 95 | ||
| IIEES SC | KHMZ | Z | EPn | E | 2022-10-10 22:19:08 | -0.4 | y | 0 | 407 | 108 | ||
| IIEES SC | GTMR | Z | EPn | E | 2022-10-10 22:19:08 | -0.8 | y | 0 | 409 | 130 | ||
| IIEES SC | MRD | Z | EPn | E | 2022-10-10 22:19:11 | -0.4 | y | 0 | 427 | 359 | ||
| IIEES SC | GRMI | Z | EPn | E | 2022-10-10 22:19:18 | 0.4 | y | 0 | 478 | 24 | ||
| IIEES SC | CHTH | Z | EPn | E | 2022-10-10 22:19:21 | 0.9 | y | 0 | 502 | 77 | ||
| IIEES SC | GHVR | Z | EPn | E | 2022-10-10 22:19:20 | -0.5 | y | 0 | 505 | 95 | ||
| IIEES SC | MAKU | Z | EPn | E | 2022-10-10 22:19:22 | 0.7 | y | 0 | 507 | 349 | ||
| IIEES SC | GURO | Z | EPn | E | 2022-10-10 22:19:22 | -1.9 | n | 4 | 527 | 321 | ||
| IIEES SC | NASN | Z | EPn | E | 2022-10-10 22:19:44 | 0.4 | y | 0 | 692 | 109 | ||
| IIEES SC | KLNJ | Z | EPn | E | 2022-10-10 22:19:41 | -2.9 | n | 4 | 694 | 128 | ||
