Magnitude |
:3.4 |
| Date & Time (UTC) | 2022-10-17 08:16:06.4 |
| Date & Time (Local) | 1401/7/25 11:46:06.4 |

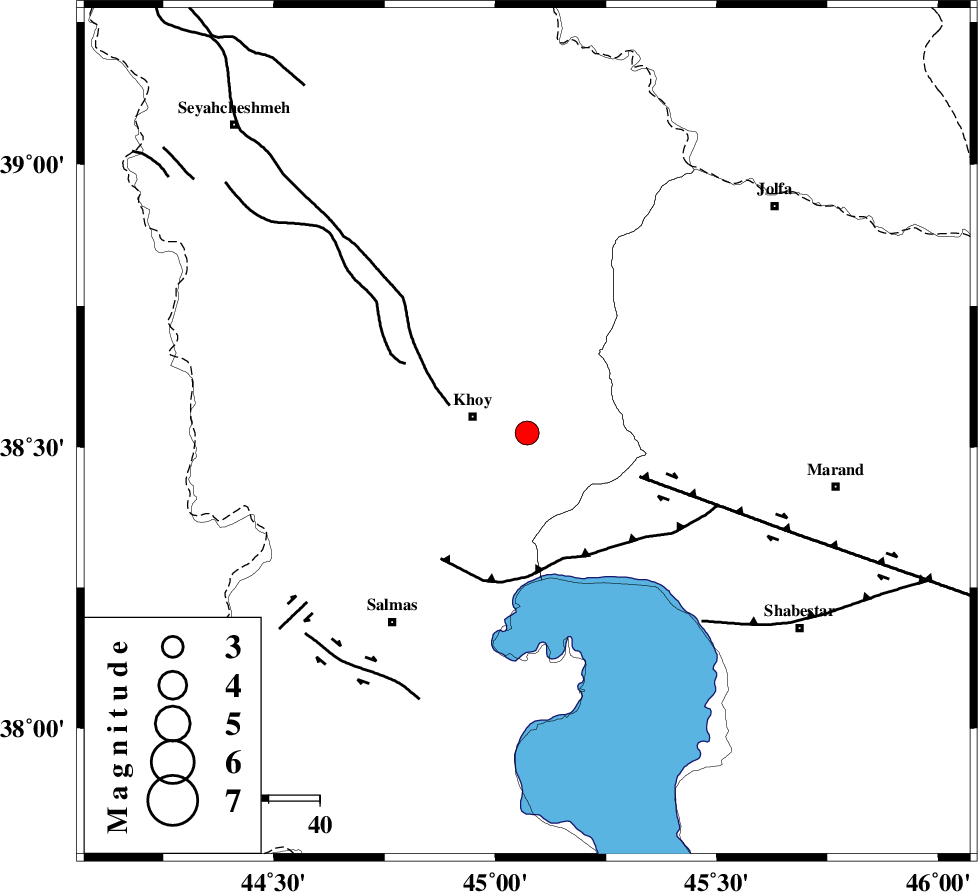

| Location | Lat:38.525 Lon: 45.072 |
| Region | Azarbaijan Gharbi Province, 11 km -East of Khoy |
Nearest Cities |
|
| 6 km of Saeedabad, Azarbaijan Gharbi Province | |
| 8 km North of Dizaj diz, Azarbaijan Gharbi Province | |
| 11 km East of Khoy, Azarbaijan Gharbi Province | |
| 16 km North East of Quruq, Azarbaijan Gharbi Province | |
| 17 km South East of Dizaj, Azarbaijan Gharbi Province | |
| Depth | 12 km |
| Agency | |
Faults within 150 km: |
|
| KHOY (Length: 100 km) , Distance to epicenter: 16 km | |
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 24 km | |
| N_TABRIZ_F3 (Length: 66 km) , Distance to epicenter: 26 km | |
| Number of Phases | 10 |
| RMS | 0.4 |
| Number of Stations | 10 |
| Error in Latitude | >2.3 km |
| Error in Longitude | 2.3 km |
| Error in Depth | 7.2 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 174323 | IIEES SC | MAHB | Z | 0.6 | 1 | 2022-10-17 08:16:38 | 2022-10-17 11:17:00 | n |
| 174324 | IIEES SC | GRMI | Z | 0.5 | 1 | 2022-10-17 08:17:13 | 2022-10-17 11:17:00 | n |
| 174325 | IIEES SC | GRMI | Z | 0.5 | 1 | 2022-10-17 08:16:45 | 2022-10-17 11:17:00 | n |
| 174326 | IIEES SC | SRSL | Z | 0.3 | 1 | 2022-10-17 08:16:45 | 2022-10-17 11:17:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | GNI | Z | EPg | E | 2022-10-17 08:16:35 | -0.2 | y | 0 | 182 | 351 | ||
| IIEES SC | MAHB | Z | EPn | E | 2022-10-17 08:16:38 | -0.6 | y | 0 | 203 | 164 | ||
| IIEES SC | GRMI | Z | EPn | E | 2022-10-17 08:16:45 | 0.7 | y | 0 | 248 | 83 | ||
| IIEES SC | GRMI | Z | ES | E | 2022-10-17 08:17:13 | -0.2 | y | 0 | 248 | 83 | ||
| IIEES SC | SRSL | Z | EPn | E | 2022-10-17 08:16:45 | -0.7 | y | 0 | 259 | 173 | ||
| IIEES SC | GURO | Z | EPn | E | 2022-10-17 08:16:47 | 0.1 | y | 0 | 265 | 271 | ||
| IIEES SC | BGD | Z | EPn | E | 2022-10-17 08:16:55 | 0.2 | y | 0 | 329 | 337 | ||
| IIEES SC | SNGE | Z | EPn | E | 2022-10-17 08:17:12 | 4.2 | n | 4 | 432 | 152 | ||
| IIEES SC | ILBA | Z | EPn | E | 2022-10-17 08:17:24 | 1 | y | 0 | 553 | 169 | ||
| IIEES SC | GTMR | Z | EPn | E | 2022-10-17 08:17:12 | -37.1 | n | 4 | 765 | 151 | ||
