Magnitude |
:4.5 |
| Date & Time (UTC) | 2022-10-23 01:55:26.5 |
| Date & Time (Local) | 1401/8/1 05:25:26.5 |

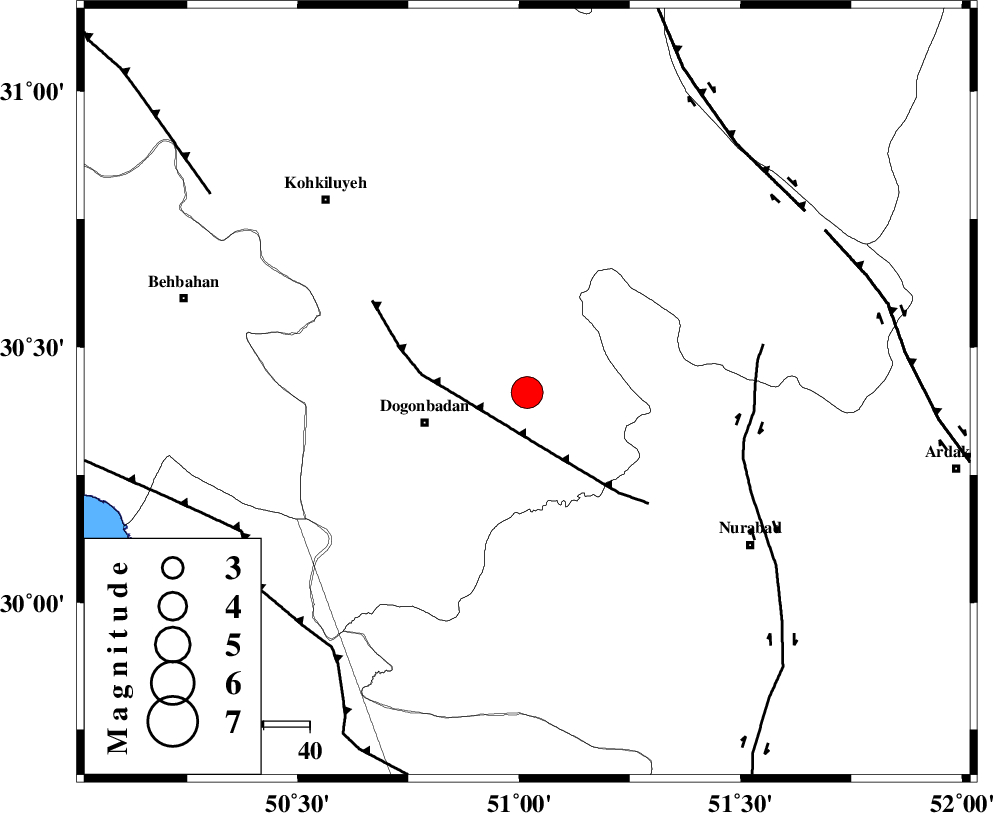

| Location | Lat:30.411 Lon: 51.018 |
| Region | Kohkiluieh va boyerahmad Province, 23 km -East of Dogonbadan |
Nearest Cities |
|
| 5 km of Abdehgah, Kohkiluieh va boyerahmad Province | |
| 15 km North West of Basht, Kohkiluieh va boyerahmad Province | |
| 23 km North East of Dogonbadan, Kohkiluieh va boyerahmad Province | |
| 28 km North West of Kopon olia, Fars Province | |
| 34 km North West of Chehar taq, Fars Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| MISHAN_F (Length: 76 km) , Distance to epicenter: 13 km | |
| KAZERUN_F (Length: 96 km) , Distance to epicenter: 48 km | |
| RAG_E_SEFID_F (Length: 84 km) , Distance to epicenter: 69 km | |
| Number of Phases | 35 |
| RMS | 0.4 |
| Number of Stations | 35 |
| Error in Latitude | >1.2 km |
| Error in Longitude | 1.2 km |
| Error in Depth | 4.3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 174394 | IIEES SC | KLNJ | Z | 20 | 1 | 2022-10-23 01:55:41 | 2022-10-23 03:52:00 | n |
| 174395 | IIEES SC | KHRK | Z | 30 | 1 | 2022-10-23 01:55:50 | 2022-10-23 03:52:00 | n |
| 174396 | IIEES SC | GTMR | Z | 4 | 1 | 2022-10-23 01:56:09 | 2022-10-23 03:52:00 | n |
| 174397 | IIEES SC | NASN | Z | 0.9 | 1 | 2022-10-23 01:56:14 | 2022-10-23 03:52:00 | n |
| 174398 | IIEES SC | TAFT | Z | 0.9 | 1 | 2022-10-23 01:56:16 | 2022-10-23 03:52:00 | n |
| 174399 | IIEES SC | KHMZ | Z | 0.8 | 1 | 2022-10-23 01:56:22 | 2022-10-23 03:52:00 | n |
| 174400 | IIEES SC | LMD1 | Z | 2 | 1 | 2022-10-23 01:56:24 | 2022-10-23 03:52:00 | n |
| 174401 | IIEES SC | YZKH | Z | 0.4 | 1 | 2022-10-23 01:56:25 | 2022-10-23 03:52:00 | n |
| 174402 | IIEES SC | GHVR | Z | 1 | 1 | 2022-10-23 01:56:30 | 2022-10-23 03:52:00 | n |
| 174403 | IIEES SC | ASAO | Z | 1 | 1 | 2022-10-23 01:56:32 | 2022-10-23 03:52:00 | n |
| 174404 | IIEES SC | KRBR | Z | 0.4 | 1 | 2022-10-23 01:56:43 | 2022-10-23 03:52:00 | n |
| 174405 | IIEES SC | KCHF | Z | 0.4 | 1 | 2022-10-23 01:56:44 | 2022-10-23 03:52:00 | n |
| 174406 | IIEES SC | HGHA | Z | 0.4 | 1 | 2022-10-23 01:56:48 | 2022-10-23 03:52:00 | n |
| 174407 | IIEES SC | TABS | Z | 0.2 | 1 | 2022-10-23 01:56:58 | 2022-10-23 03:52:00 | n |
| 174408 | IIEES SC | GLO | Z | 0.5 | 1 | 2022-10-23 01:57:05 | 2022-10-23 03:52:00 | n |
| 174409 | IIEES SC | BSRN | Z | 0.09 | 1 | 2022-10-23 01:57:11 | 2022-10-23 03:52:00 | n |
| 174410 | IIEES SC | KKHK | Z | 0.2 | 1 | 2022-10-23 01:57:16 | 2022-10-23 03:52:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | KLNJ | Z | EPg | E | 2022-10-23 01:55:41 | 0.5 | y | 0 | 86 | 40 | ||
| IIEES SC | KHRK | Z | EPg | E | 2022-10-23 01:55:50 | 0.1 | y | 0 | 145 | 208 | ||
| IIEES SC | AHRM | Z | EPg | E | 2022-10-23 01:55:54 | -0.1 | y | 0 | 174 | 171 | ||
| IIEES SC | AHWZ | Z | EPn | E | 2022-10-23 01:56:00 | -4.8 | n | 4 | 249 | 294 | ||
| IIEES SC | GTMR | Z | EPn | E | 2022-10-23 01:56:09 | -0.4 | y | 0 | 292 | 322 | ||
| IIEES SC | GHIR | Z | EPn | E | 2022-10-23 01:56:11 | -0.9 | y | 0 | 303 | 141 | ||
| IIEES SC | NASN | Z | EPn | E | 2022-10-23 01:56:14 | 0.8 | y | 0 | 315 | 33 | ||
| IIEES SC | TAFT | Z | EPn | E | 2022-10-23 01:56:16 | 1.1 | y | 0 | 334 | 64 | ||
| IIEES SC | KHMZ | Z | EPn | E | 2022-10-23 01:56:22 | 0.3 | y | 0 | 382 | 345 | ||
| IIEES SC | LMD1 | Z | EPn | E | 2022-10-23 01:56:24 | 0.3 | y | 0 | 400 | 148 | ||
| IIEES SC | YZKH | Z | EPn | E | 2022-10-23 01:56:25 | 0.6 | y | 0 | 404 | 57 | ||
| IIEES SC | GHVR | Z | EPn | E | 2022-10-23 01:56:30 | 0.6 | y | 0 | 452 | 3 | ||
| IIEES SC | ASAO | Z | EPn | E | 2022-10-23 01:56:32 | 0.2 | y | 0 | 468 | 349 | ||
| IIEES SC | KRBR | Z | EPn | E | 2022-10-23 01:56:43 | -0.3 | y | 0 | 555 | 95 | ||
| IIEES SC | KCHF | Z | EPn | E | 2022-10-23 01:56:44 | -0.5 | y | 0 | 569 | 319 | ||
| IIEES SC | ILBA | Z | EPn | E | 2022-10-23 01:56:43 | -2 | n | 4 | 578 | 308 | ||
| IIEES SC | HGHA | Z | EPn | E | 2022-10-23 01:56:48 | -0.6 | y | 0 | 598 | 340 | ||
| IIEES SC | BNDS | Z | EPn | E | 2022-10-23 01:56:46 | -2.9 | n | 4 | 603 | 124 | ||
| IIEES SC | SNGE | Z | EPn | E | 2022-10-23 01:56:49 | -1.9 | n | 4 | 623 | 326 | ||
| IIEES SC | TABS | Z | EPn | E | 2022-10-23 01:56:58 | 0 | y | 0 | 679 | 58 | ||
| IIEES SC | GLO | Z | EPn | E | 2022-10-23 01:57:05 | 0.9 | y | 0 | 724 | 21 | ||
| IIEES SC | ABGH | Z | EPn | E | 2022-10-23 01:57:12 | 0.6 | y | 0 | 784 | 27 | ||
| IIEES SC | BSRN | Z | EPn | E | 2022-10-23 01:57:11 | -0.8 | y | 0 | 792 | 77 | ||
| IIEES SC | UOSS | Z | EPn | E | 2022-10-23 01:57:09 | -3.1 | n | 4 | 793 | 140 | ||
| IIEES SC | DARN | Z | EPn | E | 2022-10-23 01:57:12 | -0.9 | y | 0 | 799 | 49 | ||
| IIEES SC | JSSH | Z | EPn | E | 2022-10-23 01:57:11 | -1.7 | n | 4 | 800 | 129 | ||
| IIEES SC | SRSL | Z | EPn | E | 2022-10-23 01:57:15 | -2 | n | 4 | 827 | 321 | ||
| IIEES SC | KKHK | Z | EPn | E | 2022-10-23 01:57:16 | -1 | y | 0 | 828 | 60 | ||
| IIEES SC | MAHB | Z | EPn | E | 2022-10-23 01:57:19 | -1.5 | n | 4 | 860 | 325 | ||
| IIEES SC | MRVT | Z | EPn | E | 2022-10-23 01:57:29 | 0.2 | y | 0 | 930 | 30 | ||
| IIEES SC | RAYN | Z | EPn | E | 2022-10-23 01:57:25 | -5.6 | n | 4 | 939 | 216 | ||
| IIEES SC | SHRT | Z | EPn | E | 2022-10-23 01:57:32 | 0.3 | y | 0 | 947 | 68 | ||
| IIEES SC | BJRD | Z | EPn | E | 2022-10-23 01:57:38 | 0.2 | y | 0 | 1001 | 36 | ||
| IIEES SC | TBJM | Z | EPn | E | 2022-10-23 01:57:41 | 0 | y | 0 | 1025 | 58 | ||
| IIEES SC | KAGH | Z | EPn | E | 2022-10-23 01:57:51 | 0.6 | y | 0 | 1101 | 49 | ||
