Magnitude |
:3.4 |
| Date & Time (UTC) | 2022-10-28 18:33:28.1 |
| Date & Time (Local) | 1401/8/6 22:03:28.1 |

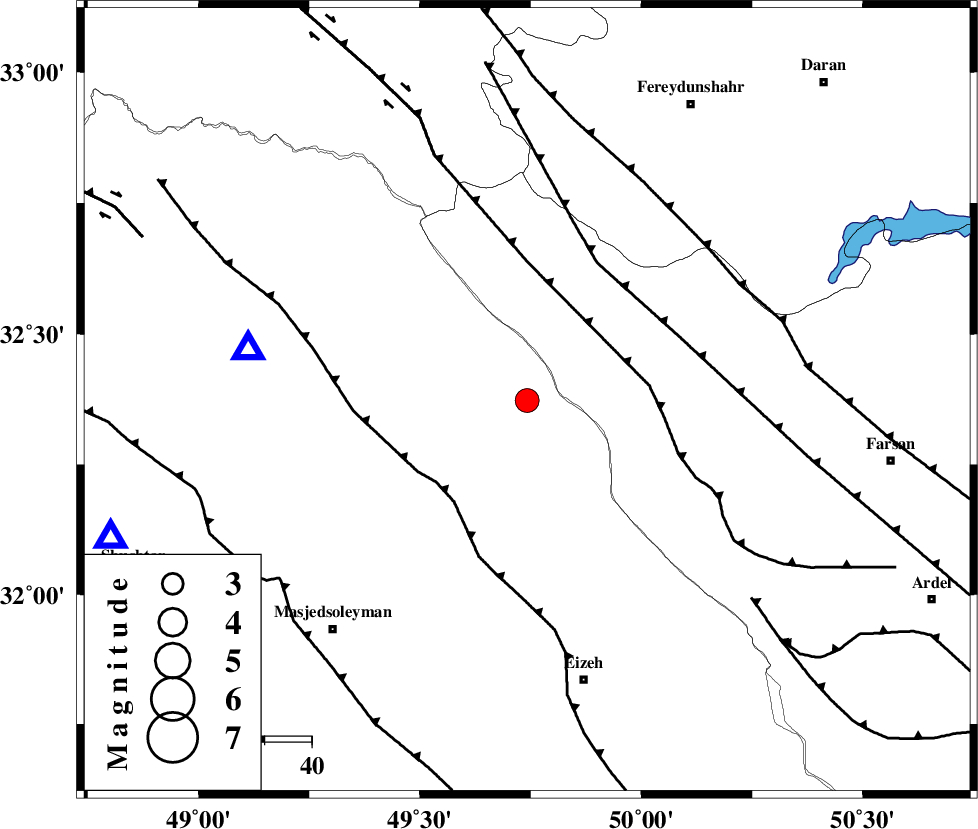

| Location | Lat:32.372 Lon: 49.742 |
| Region | Khoozestan Province, 37 km -West of Chelgard |
Nearest Cities |
|
| 19 km North East of Paabshalal, Khoozestan Province | |
| 34 km North East of Qale-yekhvaju, Khoozestan Province | |
| 37 km West of Chelgard, Chaharmahal Bakhtiari Province | |
| 38 km South West of Durak, Chaharmahal Bakhtiari Province | |
| 42 km North of Torshak, Khoozestan Province | |
| Depth | 12 km |
| Agency | |
Faults within 150 km: |
|
| MFF2 (Length: 205 km) , Distance to epicenter: 26 km | |
| ZARDKUH_F (Length: 139 km) , Distance to epicenter: 26 km | |
| ARDAL_F (Length: 170 km) , Distance to epicenter: 33 km | |
| Number of Phases | 22 |
| RMS | 0.5 |
| Number of Stations | 22 |
| Error in Latitude | >1.6 km |
| Error in Longitude | 1.6 km |
| Error in Depth | 3.7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 174542 | IIEES SC | GTMR | Z | 10 | 1 | 2022-10-28 18:33:46 | 2022-10-29 04:49:00 | n |
| 174543 | IIEES SC | GTMR | Z | 10 | 1 | 2022-10-28 18:33:38 | 2022-10-29 04:49:00 | n |
| 174544 | IIEES SC | KHMZ | Z | 0.9 | 1 | 2022-10-28 18:33:53 | 2022-10-29 04:49:00 | n |
| 174545 | IIEES SC | KLNJ | Z | 0.3 | 1 | 2022-10-28 18:34:04 | 2022-10-29 04:49:00 | n |
| 174546 | IIEES SC | ASAO | Z | 0.6 | 1 | 2022-10-28 18:34:34 | 2022-10-29 04:49:00 | n |
| 174547 | IIEES SC | ASAO | Z | 0.6 | 1 | 2022-10-28 18:34:07 | 2022-10-29 04:49:00 | n |
| 174548 | IIEES SC | NASN | Z | 0.2 | 1 | 2022-10-28 18:34:12 | 2022-10-29 04:49:00 | n |
| 174549 | IIEES SC | KCHF | Z | 0.3 | 1 | 2022-10-28 18:34:16 | 2022-10-29 04:49:00 | n |
| 174550 | IIEES SC | ILBA | Z | 0.2 | 1 | 2022-10-28 18:34:19 | 2022-10-29 04:49:00 | n |
| 174551 | IIEES SC | CHTH | Z | 0.09 | 1 | 2022-10-28 18:34:28 | 2022-10-29 04:49:00 | n |
| 174552 | IIEES SC | AHRM | Z | 0.04 | 1 | 2022-10-28 18:34:27 | 2022-10-29 04:49:00 | n |
| 174553 | IIEES SC | TAFT | Z | 0.04 | 1 | 2022-10-28 18:34:28 | 2022-10-29 04:49:00 | n |
| 174554 | IIEES SC | YZKH | Z | 0.07 | 1 | 2022-10-28 18:34:33 | 2022-10-29 04:49:00 | n |
| 174555 | IIEES SC | MEH | Z | 0.02 | 1 | 2022-10-28 18:34:34 | 2022-10-29 04:49:00 | n |
| 174556 | IIEES SC | SRSL | Z | 0.1 | 1 | 2022-10-28 18:34:47 | 2022-10-29 04:49:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | GTMR | Z | EPg | E | 2022-10-28 18:33:38 | -0.4 | y | 0 | 60 | 280 | ||
| IIEES SC | GTMR | Z | ESg | E | 2022-10-28 18:33:46 | -0.1 | y | 0 | 60 | 280 | ||
| IIEES SC | KHMZ | Z | EPg | E | 2022-10-28 18:33:53 | 0.2 | y | 0 | 153 | 8 | ||
| IIEES SC | AHWZ | Z | EPg | E | 2022-10-28 18:33:54 | 1 | y | 0 | 155 | 222 | ||
| IIEES SC | KLNJ | Z | EPn | E | 2022-10-28 18:34:04 | -0.3 | y | 0 | 232 | 131 | ||
| IIEES SC | ASAO | Z | EPn | E | 2022-10-28 18:34:07 | 1.3 | y | 0 | 243 | 6 | ||
| IIEES SC | ASAO | Z | ES | E | 2022-10-28 18:34:34 | -0.1 | y | 0 | 243 | 6 | ||
| IIEES SC | GHVR | Z | EPn | E | 2022-10-28 18:34:11 | 1.9 | n | 4 | 272 | 31 | ||
| IIEES SC | NASN | Z | EPn | E | 2022-10-28 18:34:12 | 0.1 | y | 0 | 292 | 81 | ||
| IIEES SC | KCHF | Z | EPn | E | 2022-10-28 18:34:16 | -0.2 | y | 0 | 328 | 310 | ||
| IIEES SC | HGHA | Z | EPn | E | 2022-10-28 18:34:20 | 0.1 | y | 0 | 355 | 347 | ||
| IIEES SC | ILBA | Z | EPn | E | 2022-10-28 18:34:19 | -1 | y | 0 | 358 | 293 | ||
| IIEES SC | SNGE | Z | EPn | E | 2022-10-28 18:34:22 | -0.2 | y | 0 | 375 | 324 | ||
| IIEES SC | CHTH | Z | EPn | E | 2022-10-28 18:34:28 | 0.7 | y | 0 | 412 | 18 | ||
| IIEES SC | AHRM | Z | EPn | E | 2022-10-28 18:34:27 | 0.1 | y | 0 | 416 | 159 | ||
| IIEES SC | TAFT | Z | EPn | E | 2022-10-28 18:34:28 | -0.1 | y | 0 | 424 | 100 | ||
| IIEES SC | YZKH | Z | EPn | E | 2022-10-28 18:34:33 | 0.1 | y | 0 | 456 | 90 | ||
| IIEES SC | MEH | Z | EPn | E | 2022-10-28 18:34:34 | -0.5 | y | 0 | 474 | 103 | ||
| IIEES SC | ZNJK | Z | EPn | E | 2022-10-28 18:34:32 | -4.3 | n | 4 | 487 | 348 | ||
| IIEES SC | SRSL | Z | EPn | E | 2022-10-28 18:34:47 | -0.8 | y | 0 | 582 | 317 | ||
| IIEES SC | GLO | Z | EPn | E | 2022-10-28 18:34:54 | 4.2 | n | 4 | 593 | 39 | ||
| IIEES SC | BNDS | Z | EPn | E | 2022-10-28 18:35:22 | 3 | n | 4 | 830 | 132 | ||
