Magnitude |
:3 |
| Date & Time (UTC) | 2022-10-05 00:59:11.5 |
| Date & Time (Local) | 1401/7/13 04:29:11.5 |

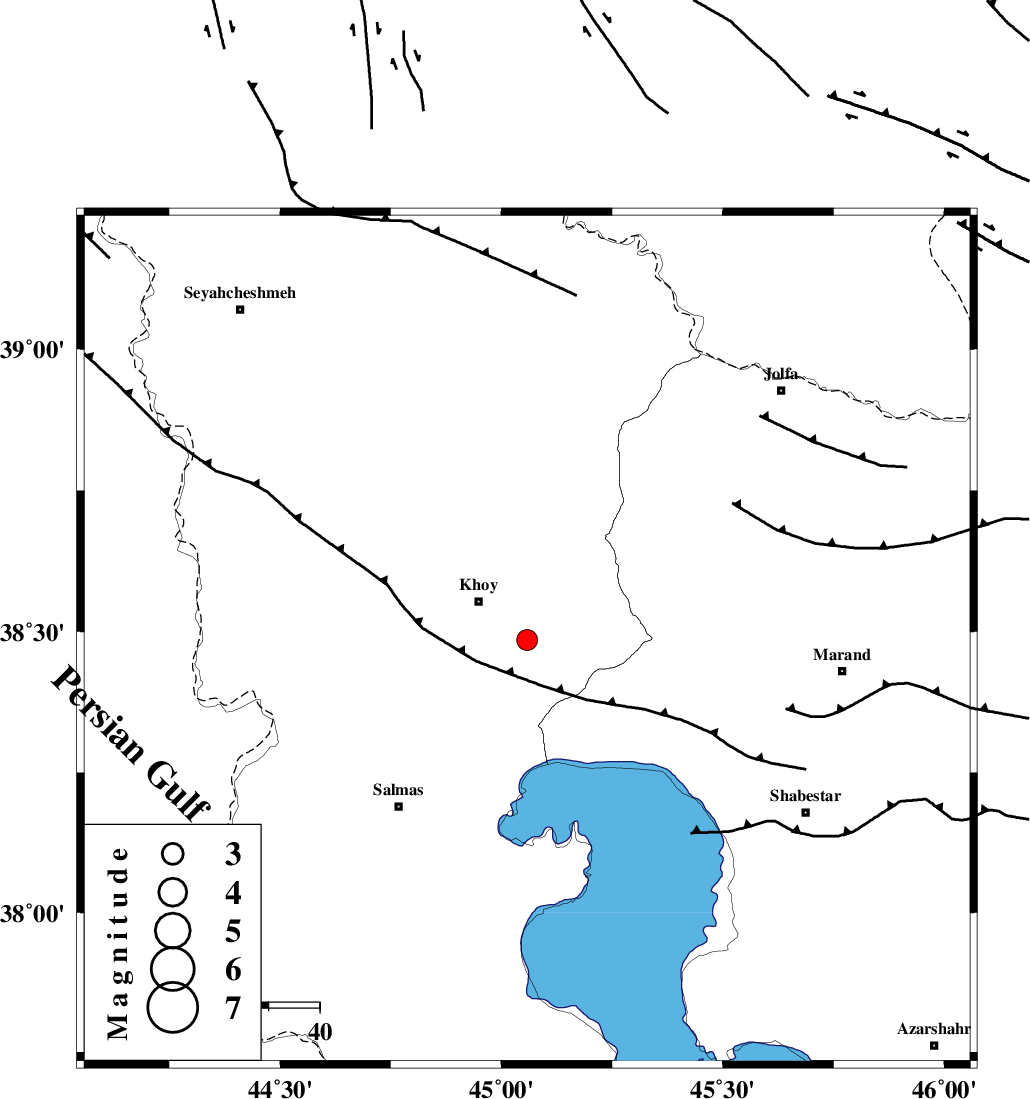

| Location | Lat:38.485 Lon: 45.058 |
| Region | Azarbaijan Gharbi Province, 12 km -East of Khoy |
Nearest Cities |
|
| 4 km North of Dizaj diz, Azarbaijan Gharbi Province | |
| 9 km of Saeedabad, Azarbaijan Gharbi Province | |
| 12 km East of Khoy, Azarbaijan Gharbi Province | |
| 13 km North East of Quruq, Azarbaijan Gharbi Province | |
| 20 km South East of Dizaj, Azarbaijan Gharbi Province | |
| Depth | 8 km |
| Agency | |
Faults within 150 km: |
|
| KHOY (Length: 100 km) , Distance to epicenter: 17 km | |
| N_TABRIZ_F3 (Length: 66 km) , Distance to epicenter: 22 km | |
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 24 km | |
| Number of Phases | 9 |
| RMS | 0.5 |
| Number of Stations | 9 |
| Error in Latitude | >2.1 km |
| Error in Longitude | 2.1 km |
| Error in Depth | 4.8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 174720 | IIEES SC | MRD | Z | 2 | 1 | 2022-10-05 00:59:22 | 2022-10-31 05:56:00 | n |
| 174721 | IIEES SC | MRD | Z | 2 | 1 | 2022-10-05 00:59:31 | 2022-10-31 05:56:00 | n |
| 174722 | IIEES SC | GNI | Z | 0.4 | 1 | 2022-10-05 00:59:42 | 2022-10-31 05:56:00 | n |
| 174723 | IIEES SC | GRMI | Z | 0.1 | 1 | 2022-10-05 01:00:19 | 2022-10-31 05:56:00 | n |
| 174724 | IIEES SC | GRMI | Z | 0.1 | 1 | 2022-10-05 00:59:51 | 2022-10-31 05:56:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | MRD | Z | EPg | E | 2022-10-05 00:59:22 | 0.1 | y | 0 | 62 | 66 | ||
| IIEES SC | MRD | Z | ESg | E | 2022-10-05 00:59:31 | 0.5 | y | 0 | 62 | 66 | ||
| IIEES SC | MAKU | Z | EPg | E | 2022-10-05 00:59:28 | -0.9 | y | 0 | 102 | 341 | ||
| IIEES SC | AZR | Z | EPg | E | 2022-10-05 00:59:31 | -0.6 | y | 0 | 121 | 138 | ||
| IIEES SC | GNI | Z | EPg | E | 2022-10-05 00:59:42 | -0.2 | y | 0 | 187 | 352 | ||
| IIEES SC | GRMI | Z | EPn | E | 2022-10-05 00:59:51 | 0.7 | y | 0 | 249 | 82 | ||
| IIEES SC | GRMI | Z | ES | E | 2022-10-05 01:00:19 | -0.1 | y | 0 | 249 | 82 | ||
| IIEES SC | SRSL | Z | EPn | E | 2022-10-05 00:59:51 | 0.1 | y | 0 | 254 | 172 | ||
| IIEES SC | GURO | Z | EPn | E | 2022-10-05 00:59:53 | 0.5 | y | 0 | 264 | 272 | ||
