Magnitude |
:3.6 |
| Date & Time (UTC) | 2022-11-14 10:59:27.0 |
| Date & Time (Local) | 1401/8/23 14:29:27.0 |

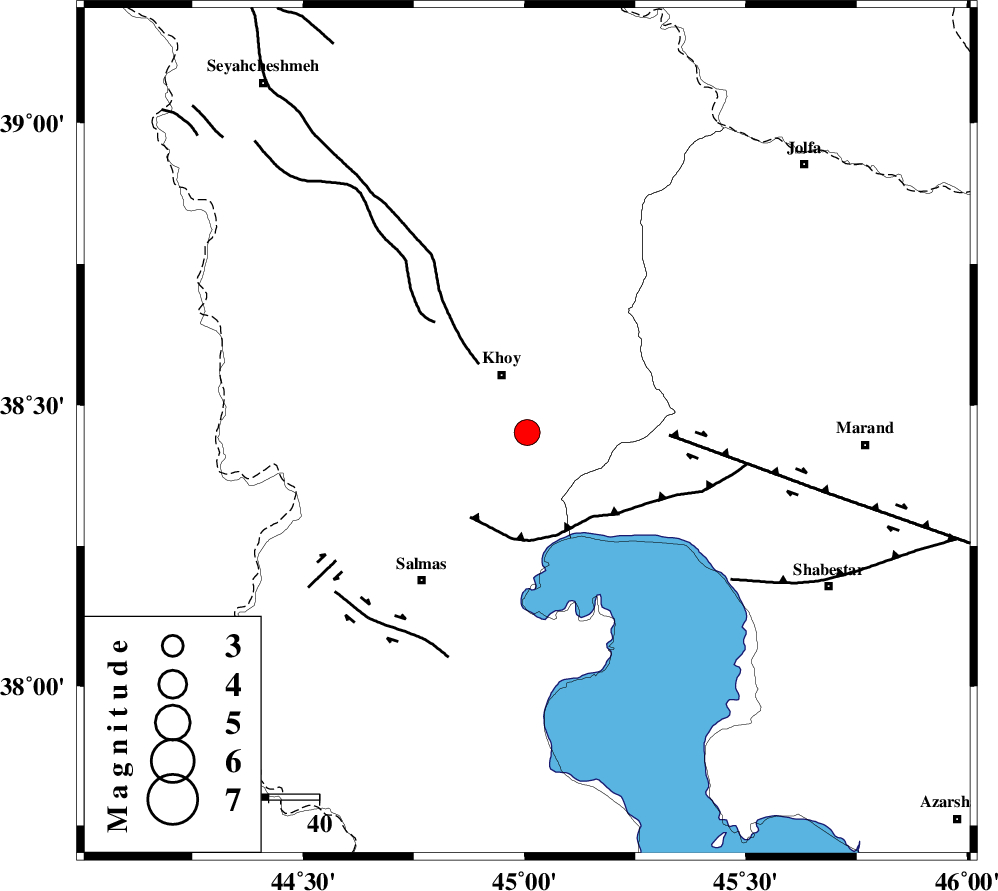

| Location | Lat:38.452 Lon: 45.006 |
| Region | Azarbaijan Gharbi Province, 12 km South of Khoy |
Nearest Cities |
|
| 2 km of Dizaj diz, Azarbaijan Gharbi Province | |
| 7 km North of Quruq, Azarbaijan Gharbi Province | |
| 12 km South of Khoy, Azarbaijan Gharbi Province | |
| 13 km South of Saeedabad, Azarbaijan Gharbi Province | |
| 21 km East of Beyk sofla, Azarbaijan Gharbi Province | |
| Depth | 10 km |
| Agency | |
Faults within 150 km: |
|
| KHOY (Length: 100 km) , Distance to epicenter: 16 km | |
| N_TABRIZ_F3 (Length: 66 km) , Distance to epicenter: 20 km | |
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 28 km | |
| Number of Phases | 10 |
| RMS | 0.5 |
| Number of Stations | 10 |
| Error in Latitude | >3 km |
| Error in Longitude | 3 km |
| Error in Depth | 6.7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 175078 | IIEES SC | MRD | Z | 20 | 1 | 2022-11-14 10:59:38 | 2022-11-15 04:30:00 | n |
| 175079 | IIEES SC | MAKU | Z | 2 | 1 | 2022-11-14 10:59:44 | 2022-11-15 04:30:00 | n |
| 175080 | IIEES SC | GNI | Z | 3 | 1 | 2022-11-14 10:59:58 | 2022-11-15 04:30:00 | n |
| 175081 | IIEES SC | MAHB | Z | 1 | 1 | 2022-11-14 10:59:58 | 2022-11-15 04:30:00 | n |
| 175082 | IIEES SC | SRSL | Z | 0.5 | 1 | 2022-11-14 11:00:07 | 2022-11-15 04:30:00 | n |
| 175083 | IIEES SC | GRMI | Z | 0.4 | 1 | 2022-11-14 11:00:07 | 2022-11-15 04:30:00 | n |
| 175084 | IIEES SC | ILBA | Z | 0.03 | 1 | 2022-11-14 11:00:42 | 2022-11-15 04:30:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | MRD | Z | EPg | E | 2022-11-14 10:59:38 | -0.3 | y | 0 | 67 | 64 | ||
| IIEES SC | MAKU | Z | EPg | E | 2022-11-14 10:59:44 | -0.4 | y | 0 | 104 | 344 | ||
| IIEES SC | AZR | Z | EPg | E | 2022-11-14 10:59:47 | -0.7 | y | 0 | 122 | 135 | ||
| IIEES SC | GNI | Z | EPg | E | 2022-11-14 10:59:58 | 0.4 | y | 0 | 190 | 353 | ||
| IIEES SC | MAHB | Z | EPg | E | 2022-11-14 10:59:58 | -0.2 | y | 0 | 197 | 162 | ||
| IIEES SC | SRSL | Z | EPn | E | 2022-11-14 11:00:07 | 0.6 | y | 0 | 252 | 171 | ||
| IIEES SC | GRMI | Z | EPn | E | 2022-11-14 11:00:07 | 0.9 | y | 0 | 255 | 81 | ||
| IIEES SC | ZNJK | Z | EPn | E | 2022-11-14 11:00:17 | -5.2 | n | 4 | 380 | 121 | ||
| IIEES SC | SNGE | Z | EPn | E | 2022-11-14 11:00:29 | 1.2 | y | 0 | 427 | 151 | ||
| IIEES SC | ILBA | Z | EPn | E | 2022-11-14 11:00:42 | -0.3 | y | 0 | 546 | 169 | ||
