Magnitude |
:3.7 |
| Date & Time (UTC) | 2022-12-24 07:35:42.6 |
| Date & Time (Local) | 1401/10/3 11:05:42.6 |

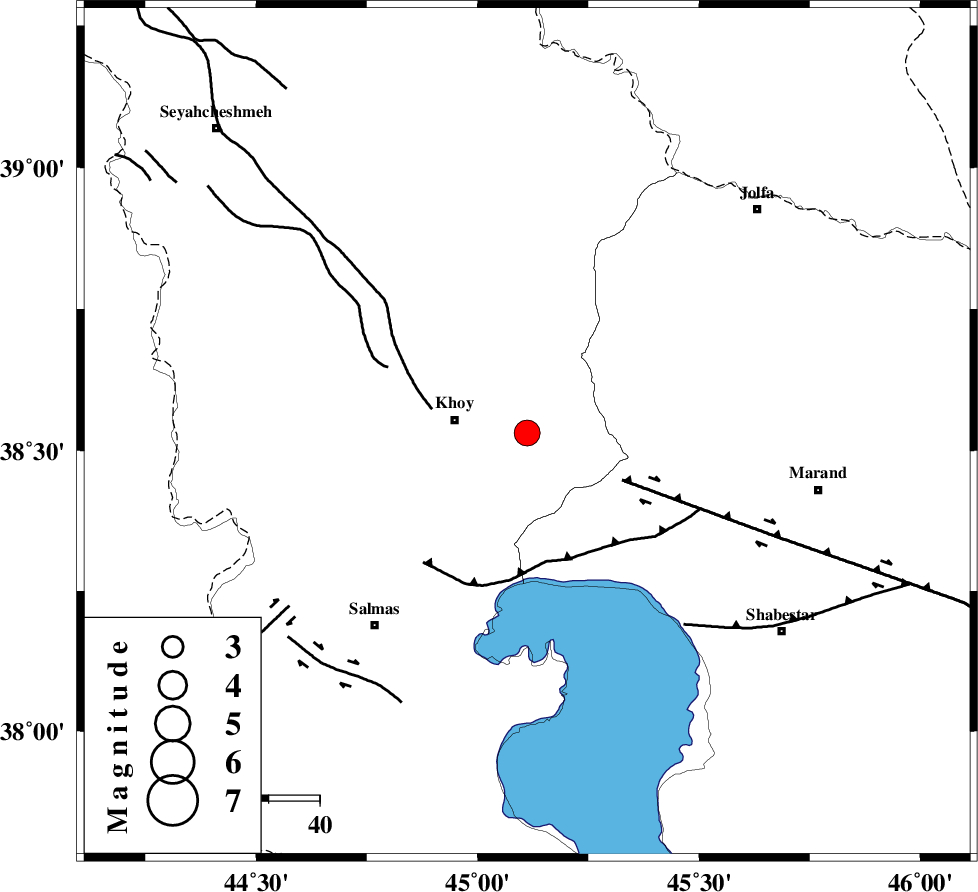

| Location | Lat:38.531 Lon: 45.112 |
| Region | Azarbaijan Gharbi Province, 14 km -East of Khoy |
Nearest Cities |
|
| 8 km of Saeedabad, Azarbaijan Gharbi Province | |
| 10 km North of Dizaj diz, Azarbaijan Gharbi Province | |
| 14 km East of Khoy, Azarbaijan Gharbi Province | |
| 19 km South East of Dizaj, Azarbaijan Gharbi Province | |
| 19 km North East of Quruq, Azarbaijan Gharbi Province | |
| Depth | 8 km |
| Agency | |
Faults within 150 km: |
|
| KHOY (Length: 100 km) , Distance to epicenter: 19 km | |
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 21 km | |
| N_TABRIZ_F3 (Length: 66 km) , Distance to epicenter: 26 km | |
| Number of Phases | 13 |
| RMS | 0.3 |
| Number of Stations | 13 |
| Error in Latitude | >1.6 km |
| Error in Longitude | 1.6 km |
| Error in Depth | 4.5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 176877 | IIEES SC | MRD | Z | 20 | 1 | 2022-12-24 07:35:52 | 2022-12-24 08:55:00 | n |
| 176878 | IIEES SC | GNI | Z | 5 | 1 | 2022-12-24 07:36:12 | 2022-12-24 08:55:00 | n |
| 176879 | IIEES SC | MAHB | Z | 2 | 1 | 2022-12-24 07:36:15 | 2022-12-24 08:55:00 | n |
| 176880 | IIEES SC | GRMI | Z | 1 | 1 | 2022-12-24 07:36:21 | 2022-12-24 08:55:00 | n |
| 176881 | IIEES SC | GURO | Z | 0.2 | 1 | 2022-12-24 07:36:24 | 2022-12-24 08:55:00 | n |
| 176882 | IIEES SC | DHR | Z | 0.2 | 1 | 2022-12-24 07:36:46 | 2022-12-24 08:55:00 | n |
| 176883 | IIEES SC | GIDE | Z | 0.05 | 1 | 2022-12-24 07:36:48 | 2022-12-24 08:55:00 | n |
| 176884 | IIEES SC | ILBA | Z | 0.09 | 1 | 2022-12-24 07:36:59 | 2022-12-24 08:55:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | MRD | Z | EPg | E | 2022-12-24 07:35:52 | 0.2 | y | 0 | 55 | 69 | ||
| IIEES SC | AZR | Z | EPg | E | 2022-12-24 07:36:02 | -0.6 | y | 0 | 122 | 141 | ||
| IIEES SC | GNI | Z | EPg | E | 2022-12-24 07:36:12 | -0.2 | y | 0 | 182 | 350 | ||
| IIEES SC | MAHB | Z | EPn | E | 2022-12-24 07:36:15 | -0.6 | y | 0 | 203 | 165 | ||
| IIEES SC | GRMI | Z | EPn | E | 2022-12-24 07:36:21 | -0.2 | y | 0 | 244 | 83 | ||
| IIEES SC | GURO | Z | EPn | E | 2022-12-24 07:36:24 | 0.2 | y | 0 | 268 | 270 | ||
| IIEES SC | BGD | Z | EPn | E | 2022-12-24 07:36:33 | 1.6 | n | 4 | 330 | 337 | ||
| IIEES SC | ZNJK | Z | EPn | E | 2022-12-24 07:36:30 | -7.4 | n | 4 | 377 | 123 | ||
| IIEES SC | SNGE | Z | EPn | E | 2022-12-24 07:36:44 | 0.2 | y | 0 | 431 | 152 | ||
| IIEES SC | DHR | Z | EPn | E | 2022-12-24 07:36:46 | 0.2 | y | 0 | 440 | 165 | ||
| IIEES SC | GIDE | Z | EPn | E | 2022-12-24 07:36:48 | 0.7 | y | 0 | 452 | 113 | ||
| IIEES SC | HGHA | Z | EPn | E | 2022-12-24 07:36:41 | -8.4 | n | 4 | 474 | 135 | ||
| IIEES SC | ILBA | Z | EPn | E | 2022-12-24 07:36:59 | -0.2 | y | 0 | 553 | 170 | ||
