Magnitude |
:3.5 |
| Date & Time (UTC) | 2022-05-31 22:17:47.7 |
| Date & Time (Local) | 1401/3/11 02:47:47.7 |

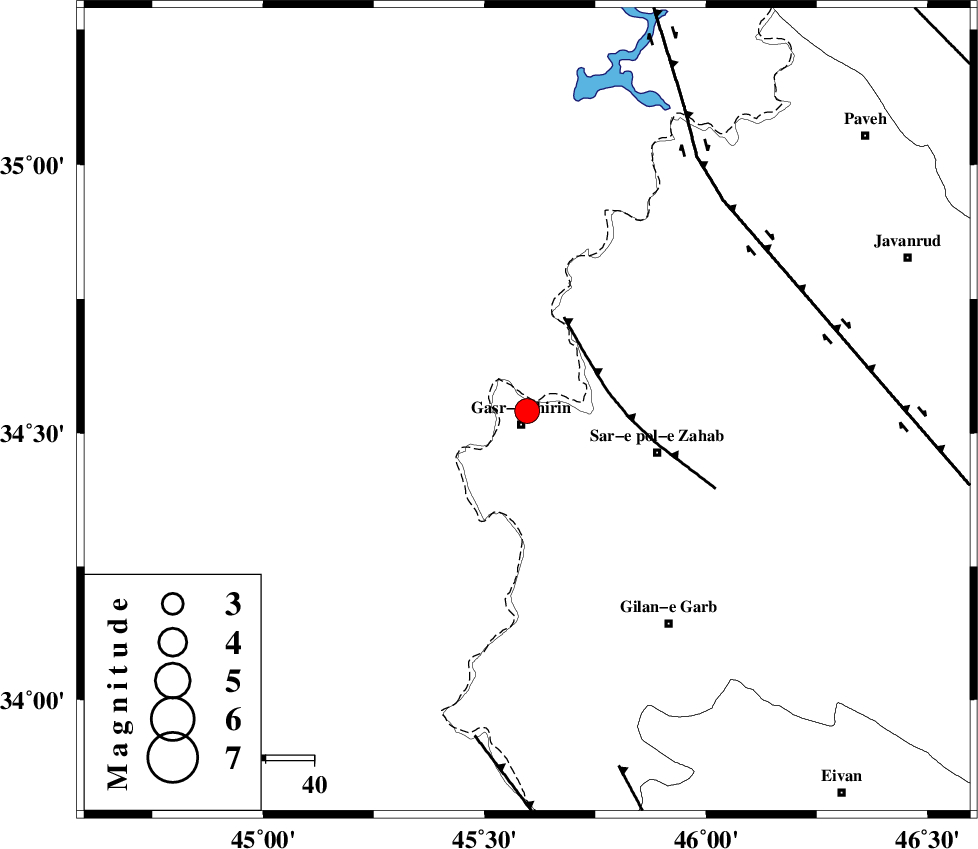

| Location | Lat:34.541 Lon: 45.596 |
| Region | Kermanshah Province, 3 km of Qasr-E-Shirin |
Nearest Cities |
|
| 3 km North of Qasr-E-Shirin, Kermanshah Province | |
| 6 km of Aqabarar, Kermanshah Province | |
| 11 km North of Seyyed sohrab, Kermanshah Province | |
| 16 km West of Mirmiru, Kermanshah Province | |
| 18 km North West of Qareh belagh, Kermanshah Province | |
| Depth | 12 km |
| Agency | |
Faults within 150 km: |
|
| MFF8 (Length: 48 km) , Distance to epicenter: 17 km | |
| HZF4 (Length: 492 km) , Distance to epicenter: 59 km | |
| ZFF4 (Length: 128 km) , Distance to epicenter: 68 km | |
| Number of Phases | 22 |
| RMS | 0.6 |
| Number of Stations | 22 |
| Error in Latitude | >1.3 km |
| Error in Longitude | 1.3 km |
| Error in Depth | 7.5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 179438 | IIEES SC | MAHB | Z | 1 | 1 | 2022-05-31 22:18:26 | 2023-02-27 06:27:00 | n |
| 179439 | IIEES SC | ZNJK | Z | 0.07 | 1 | 2022-05-31 22:18:40 | 2023-02-27 06:27:00 | n |
| 179440 | IIEES SC | GTMR | Z | 0.1 | 1 | 2022-05-31 22:18:45 | 2023-02-27 06:27:00 | n |
| 179441 | IIEES SC | ASAO | Z | 0.1 | 1 | 2022-05-31 22:18:46 | 2023-02-27 06:27:00 | n |
| 179442 | IIEES SC | KHMZ | Z | 0.08 | 1 | 2022-05-31 22:18:47 | 2023-02-27 06:27:00 | n |
| 179443 | IIEES SC | MRD | Z | 0.1 | 1 | 2022-05-31 22:18:52 | 2023-02-27 06:27:00 | n |
| 179444 | IIEES SC | GRMI | Z | 0.03 | 1 | 2022-05-31 22:18:59 | 2023-02-27 06:27:00 | n |
| 179445 | IIEES SC | GHVR | Z | 0.07 | 1 | 2022-05-31 22:18:59 | 2023-02-27 06:27:00 | n |
| 179446 | IIEES SC | KLNJ | Z | 0.03 | 1 | 2022-05-31 22:19:19 | 2023-02-27 06:27:00 | n |
| 179447 | IIEES SC | NASN | Z | 0.02 | 1 | 2022-05-31 22:19:21 | 2023-02-27 06:27:00 | n |
| 179448 | IIEES SC | ANAR | Z | 0.008 | 1 | 2022-05-31 22:19:30 | 2023-02-27 06:27:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | DHR | Z | EPg | E | 2022-05-31 22:18:01 | 0.5 | y | 0 | 75 | 76 | ||
| IIEES SC | DHR | Z | ESg | E | 2022-05-31 22:18:11 | 0.9 | y | 0 | 75 | 76 | ||
| IIEES SC | ILBA | Z | EPg | E | 2022-05-31 22:18:08 | 1 | y | 0 | 116 | 151 | ||
| IIEES SC | ILBA | Z | ESg | E | 2022-05-31 22:18:22 | 0.5 | y | 0 | 116 | 151 | ||
| IIEES SC | SNGE | Z | EPg | E | 2022-05-31 22:18:16 | 0.4 | y | 0 | 172 | 69 | ||
| IIEES SC | SRSL | Z | EPg | E | 2022-05-31 22:18:19 | 1 | y | 0 | 186 | 355 | ||
| IIEES SC | MAHB | Z | EPn | E | 2022-05-31 22:18:26 | 0.1 | y | 0 | 247 | 2 | ||
| IIEES SC | KAR2 | Z | EPn | E | 2022-05-31 22:18:28 | 0 | y | 0 | 266 | 213 | ||
| IIEES SC | HGHA | Z | EPn | E | 2022-05-31 22:18:32 | -2.5 | n | 4 | 316 | 71 | ||
| IIEES SC | NSR4 | Z | EPn | E | 2022-05-31 22:18:38 | 0.6 | y | 0 | 338 | 170 | ||
| IIEES SC | ZNJK | Z | EPn | E | 2022-05-31 22:18:40 | -0.9 | y | 0 | 366 | 50 | ||
| IIEES SC | GTMR | Z | EPn | E | 2022-05-31 22:18:45 | 0.1 | y | 0 | 399 | 125 | ||
| IIEES SC | ASAO | Z | EPn | E | 2022-05-31 22:18:46 | -0.4 | y | 0 | 407 | 90 | ||
| IIEES SC | KHMZ | Z | EPn | E | 2022-05-31 22:18:47 | 0.1 | y | 0 | 413 | 102 | ||
| IIEES SC | MRD | Z | EPn | E | 2022-05-31 22:18:52 | -1.2 | y | 0 | 463 | 1 | ||
| IIEES SC | GRMI | Z | EPn | E | 2022-05-31 22:18:59 | -0.1 | y | 0 | 516 | 23 | ||
| IIEES SC | GHVR | Z | EPn | E | 2022-05-31 22:18:59 | -0.7 | y | 0 | 519 | 91 | ||
| IIEES SC | MAKU | Z | EPn | E | 2022-05-31 22:19:03 | 0.2 | y | 0 | 540 | 351 | ||
| IIEES SC | KLNJ | Z | EPn | E | 2022-05-31 22:19:19 | -1.4 | y | 0 | 685 | 125 | ||
| IIEES SC | NASN | Z | EPn | E | 2022-05-31 22:19:21 | -1.3 | y | 0 | 696 | 106 | ||
| IIEES SC | ANAR | Z | EPn | E | 2022-05-31 22:19:30 | -1 | y | 0 | 767 | 101 | ||
| IIEES SC | GHIR | Z | EPn | E | 2022-05-31 22:19:56 | -1.8 | y | 0 | 987 | 135 | ||
