Magnitude |
:5.3 |
| Date & Time (UTC) | 2023-03-16 18:32:53.1 |
| Date & Time (Local) | 1401/12/25 22:02:53.1 |

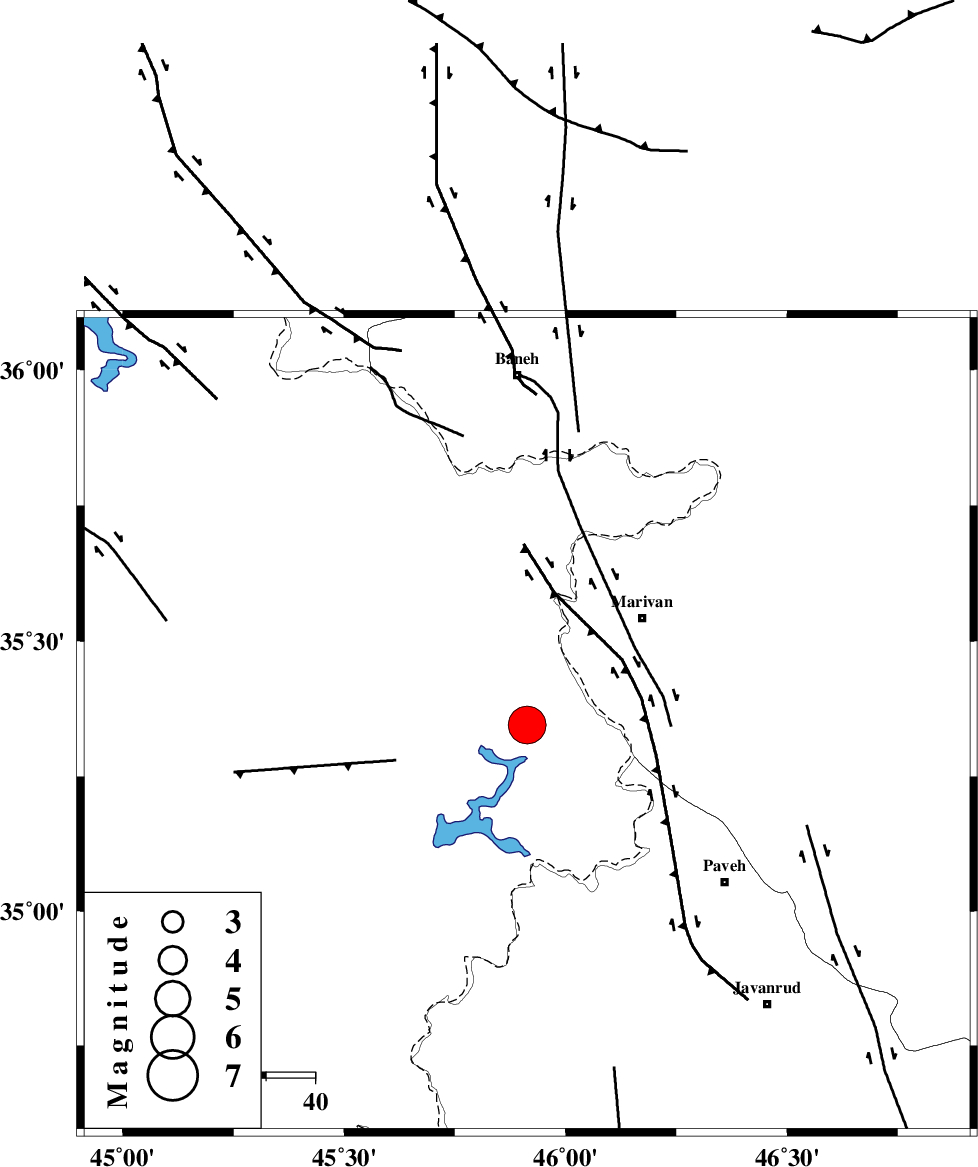

| Location | Lat:35.345 Lon: 45.913 |
| Region | Iraq, 32 km South-West of Marivan |
Nearest Cities |
|
| 24 km South West of Ney, Kurdistan Province | |
| 28 km South West of Kanidinar, Kurdistan Province | |
| 31 km North of Markhil, Kermanshah Province | |
| 32 km West of Qaleh ji, Kurdistan Province | |
| 32 km South West of Bardeh rasheh, Kurdistan Province | |
| Depth | 7 km |
| Agency | |
Faults within 150 km: |
|
| HZF4 (Length: 492 km) , Distance to epicenter: 5 km | |
| PIRANSHAHR_F (Length: 253 km) , Distance to epicenter: 33 km | |
| MFF8 (Length: 48 km) , Distance to epicenter: 73 km | |
| Number of Phases | 36 |
| RMS | 0.5 |
| Number of Stations | 36 |
| Error in Latitude | >1.4 km |
| Error in Longitude | 1.4 km |
| Error in Depth | 3.2 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 179916 | IIEES SC | DHR | Z | 200 | 1 | 2023-03-16 18:33:07 | 2023-03-18 06:26:00 | n |
| 179917 | IIEES SC | SRSL | Z | 100 | 1 | 2023-03-16 18:33:11 | 2023-03-18 06:26:00 | n |
| 179918 | IIEES SC | KCHF | Z | 200 | 1 | 2023-03-16 18:33:19 | 2023-03-18 06:26:00 | n |
| 179919 | IIEES SC | MAHB | Z | 80 | 1 | 2023-03-16 18:33:19 | 2023-03-18 06:26:00 | n |
| 179920 | IIEES SC | ILBA | Z | 50 | 1 | 2023-03-16 18:33:25 | 2023-03-18 06:26:00 | n |
| 179921 | IIEES SC | HGHA | Z | 30 | 1 | 2023-03-16 18:33:35 | 2023-03-18 06:26:00 | n |
| 179922 | IIEES SC | MRD | Z | 20 | 1 | 2023-03-16 18:33:48 | 2023-03-18 06:26:00 | n |
| 179923 | IIEES SC | ASAO | Z | 8 | 1 | 2023-03-16 18:33:50 | 2023-03-18 06:26:00 | n |
| 179924 | IIEES SC | GRMI | Z | 4 | 1 | 2023-03-16 18:33:54 | 2023-03-18 06:26:00 | n |
| 179925 | IIEES SC | GTMR | Z | 7 | 1 | 2023-03-16 18:33:55 | 2023-03-18 06:26:00 | n |
| 179926 | IIEES SC | GURO | Z | 3 | 1 | 2023-03-16 18:34:02 | 2023-03-18 06:26:00 | n |
| 179927 | IIEES SC | GHVR | Z | 6 | 1 | 2023-03-16 18:34:03 | 2023-03-18 06:26:00 | n |
| 179928 | IIEES SC | GNI | Z | 4 | 1 | 2023-03-16 18:34:09 | 2023-03-18 06:26:00 | n |
| 179929 | IIEES SC | NASN | Z | 1 | 1 | 2023-03-16 18:34:27 | 2023-03-18 06:26:00 | n |
| 179930 | IIEES SC | GLO | Z | 3 | 1 | 2023-03-16 18:34:32 | 2023-03-18 06:26:00 | n |
| 179931 | IIEES SC | YZKH | Z | 0.4 | 1 | 2023-03-16 18:34:48 | 2023-03-18 06:26:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | DHR | Z | EPg | E | 2023-03-16 18:33:07 | 0 | y | 0 | 84 | 149 | ||
| IIEES SC | SRSL | Z | EPg | E | 2023-03-16 18:33:11 | 0 | y | 0 | 106 | 336 | ||
| IIEES SC | SNGE | Z | EPg | E | 2023-03-16 18:33:15 | 0 | y | 0 | 134 | 102 | ||
| IIEES SC | KCHF | Z | EPg | E | 2023-03-16 18:33:19 | 0 | y | 0 | 157 | 139 | ||
| IIEES SC | MAHB | Z | EPg | E | 2023-03-16 18:33:19 | -0.5 | y | 0 | 159 | 353 | ||
| IIEES SC | ILBA | Z | EPg | E | 2023-03-16 18:33:25 | 0.6 | y | 0 | 193 | 172 | ||
| IIEES SC | AZR | Z | EPn | E | 2023-03-16 18:33:34 | 0.5 | y | 0 | 259 | 1 | ||
| IIEES SC | HGHA | Z | EPn | E | 2023-03-16 18:33:35 | 0.2 | y | 0 | 268 | 87 | ||
| IIEES SC | ZNJK | Z | EPn | E | 2023-03-16 18:33:35 | -1.9 | n | 4 | 290 | 60 | ||
| IIEES SC | MRD | Z | EPn | E | 2023-03-16 18:33:48 | 0.3 | y | 0 | 374 | 357 | ||
| IIEES SC | ASAO | Z | EPn | E | 2023-03-16 18:33:50 | 0.9 | y | 0 | 386 | 103 | ||
| IIEES SC | GIDE | Z | EPn | E | 2023-03-16 18:33:51 | 0.7 | y | 0 | 393 | 64 | ||
| IIEES SC | GRMI | Z | EPn | E | 2023-03-16 18:33:54 | 0.1 | y | 0 | 423 | 25 | ||
| IIEES SC | GTMR | Z | EPn | E | 2023-03-16 18:33:55 | -0.2 | y | 0 | 435 | 137 | ||
| IIEES SC | MAKU | Z | EPn | E | 2023-03-16 18:33:58 | 0.3 | y | 0 | 458 | 346 | ||
| IIEES SC | GURO | Z | EPn | E | 2023-03-16 18:34:02 | -0.8 | y | 0 | 496 | 316 | ||
| IIEES SC | GHVR | Z | EPn | E | 2023-03-16 18:34:03 | 0 | y | 0 | 497 | 101 | ||
| IIEES SC | AHWZ | Z | EPn | E | 2023-03-16 18:34:04 | -0.5 | y | 0 | 513 | 150 | ||
| IIEES SC | GNI | Z | EPn | E | 2023-03-16 18:34:09 | 0.4 | y | 0 | 543 | 349 | ||
| IIEES SC | BGD | Z | EPn | E | 2023-03-16 18:34:29 | 2.3 | n | 4 | 688 | 343 | ||
| IIEES SC | NASN | Z | EPn | E | 2023-03-16 18:34:27 | -1 | y | 0 | 696 | 114 | ||
| IIEES SC | KLNJ | Z | EPn | E | 2023-03-16 18:34:27 | -3.1 | n | 4 | 715 | 132 | ||
| IIEES SC | GLO | Z | EPn | E | 2023-03-16 18:34:32 | 0.4 | y | 0 | 726 | 80 | ||
| IIEES SC | ANJ | Z | EPn | E | 2023-03-16 18:34:31 | -0.5 | y | 0 | 727 | 89 | ||
| IIEES SC | ARPR | Z | EPn | E | 2023-03-16 18:34:40 | 0.5 | y | 0 | 791 | 302 | ||
| IIEES SC | TAFT | Z | EPn | E | 2023-03-16 18:34:46 | -2.6 | n | 4 | 866 | 118 | ||
| IIEES SC | YZKH | Z | EPn | E | 2023-03-16 18:34:48 | -0.8 | y | 0 | 867 | 112 | ||
| IIEES SC | AHRM | Z | EPn | E | 2023-03-16 18:34:48 | -2.6 | n | 4 | 880 | 145 | ||
| IIEES SC | MEH | Z | EPn | E | 2023-03-16 18:34:57 | 0.8 | y | 0 | 921 | 118 | ||
| IIEES SC | MRVT | Z | EPn | E | 2023-03-16 18:34:58 | -0.5 | y | 0 | 947 | 74 | ||
| IIEES SC | KIV | Z | EPn | E | 2023-03-16 18:35:08 | 2.7 | n | 4 | 995 | 344 | ||
| IIEES SC | GHIR | Z | EPn | E | 2023-03-16 18:35:04 | -4.8 | n | 4 | 1030 | 139 | ||
| IIEES SC | TABS | Z | EPn | E | 2023-03-16 18:35:10 | -0.8 | y | 0 | 1046 | 100 | ||
| IIEES SC | DARN | Z | EPn | E | 2023-03-16 18:35:10 | -1.1 | y | 0 | 1047 | 91 | ||
| IIEES SC | BJRD | Z | EPn | E | 2023-03-16 18:35:13 | -0.6 | y | 0 | 1062 | 76 | ||
| IIEES SC | LMD1 | Z | EPn | E | 2023-03-16 18:35:17 | -4.1 | n | 4 | 1124 | 142 | ||
