Magnitude |
:3.2 |
| Date & Time (UTC) | 2024-12-04 15:03:57.0 |
| Date & Time (Local) | 1403/9/14 18:33:57.0 |

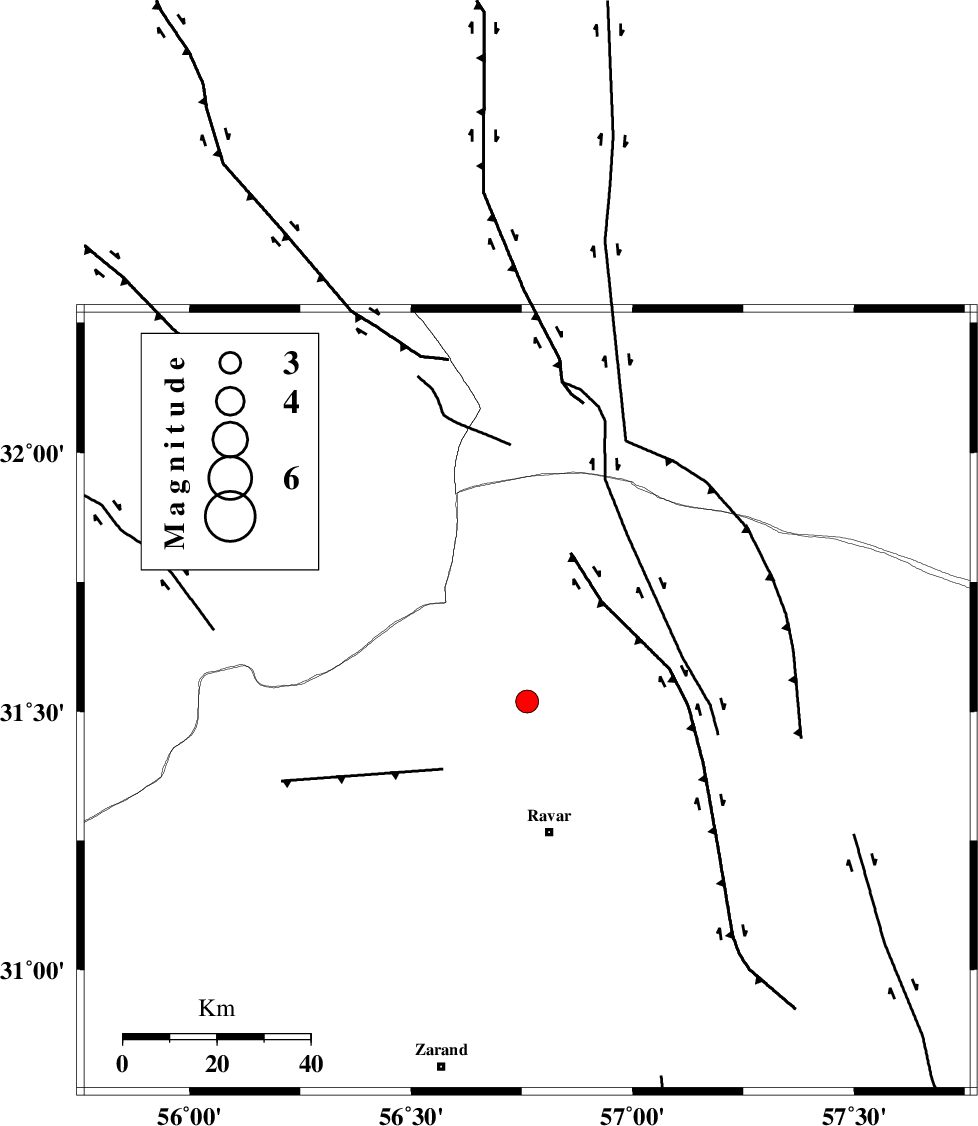

| Location | Lat:31.52 Lon: 56.762 |
| Region | Kerman Province, 29 km North of Ravar |
Nearest Cities |
|
| 22 km North of Dehali, Kerman Province | |
| 29 km North of Ravar, Kerman Province | |
| 46 km North East of Kuhbanan, Kerman Province | |
| 49 km North East of Jor, Kerman Province | |
| 53 km North East of Toghroljerd, Kerman Province | |
| Depth | 16 km |
| Agency | |
Faults within 150 km: |
|
| LAKARKUH_F (Length: 138 km) , Distance to epicenter: 22 km | |
| KUHBANAN_F (Length: 189 km) , Distance to epicenter: 50 km | |
| JAFARABAD_F (Length: 60 km) , Distance to epicenter: 52 km | |
| Number of Phases | 19 |
| RMS | 0.5 |
| Number of Stations | 19 |
| Error in Latitude | >1.7 km |
| Error in Longitude | 1.7 km |
| Error in Depth | 7.1 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 196244 | IIEES SC | KRBR | Z | 0.9 | 1 | 2024-12-04 15:04:25 | 2024-12-08 09:24:00 | n |
| 196245 | IIEES SC | YZKH | Z | 0.3 | 1 | 2024-12-04 15:04:32 | 2024-12-08 09:24:00 | n |
| 196246 | IIEES SC | BSRN | Z | 0.2 | 1 | 2024-12-04 15:04:32 | 2024-12-08 09:24:00 | n |
| 196247 | IIEES SC | TAFT | Z | 0.3 | 1 | 2024-12-04 15:04:35 | 2024-12-08 09:24:00 | n |
| 196248 | IIEES SC | KBAM | Z | 0.2 | 1 | 2024-12-04 15:04:42 | 2024-12-08 09:24:00 | n |
| 196249 | IIEES SC | NASN | Z | 0.04 | 1 | 2024-12-04 15:04:55 | 2024-12-08 09:24:00 | n |
| 196250 | IIEES SC | SHRT | Z | 0.04 | 1 | 2024-12-04 15:04:55 | 2024-12-08 09:24:00 | n |
| 196251 | IIEES SC | ABGH | Z | 0.01 | 1 | 2024-12-04 15:05:20 | 2024-12-08 09:24:00 | n |
| 196252 | IIEES SC | MRVT | Z | 0.01 | 1 | 2024-12-04 15:05:30 | 2024-12-08 09:24:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | KRBR | Z | EPg | E | 2024-12-04 15:04:25 | 0.7 | y | 0 | 170 | 180 | ||
| IIEES SC | MEH | Z | EPn | E | 2024-12-04 15:04:29 | -0.5 | y | 0 | 205 | 266 | ||
| IIEES SC | YZKH | Z | EPn | E | 2024-12-04 15:04:32 | -0.5 | y | 0 | 227 | 295 | ||
| IIEES SC | BSRN | Z | EPn | E | 2024-12-04 15:04:32 | -0.7 | y | 0 | 229 | 78 | ||
| IIEES SC | TABS | Z | EPn | E | 2024-12-04 15:04:34 | 0.2 | y | 0 | 238 | 8 | ||
| IIEES SC | TAFT | Z | EPn | E | 2024-12-04 15:04:35 | -0.1 | y | 0 | 247 | 275 | ||
| IIEES SC | KBAM | Z | EPn | E | 2024-12-04 15:04:42 | -0.4 | y | 0 | 310 | 148 | ||
| IIEES SC | ANAR | Z | EPn | E | 2024-12-04 15:04:46 | -0.5 | y | 0 | 340 | 303 | ||
| IIEES SC | NASN | Z | EPn | E | 2024-12-04 15:04:55 | 0.8 | y | 0 | 399 | 291 | ||
| IIEES SC | SHRT | Z | EPn | E | 2024-12-04 15:04:55 | 0 | y | 0 | 407 | 55 | ||
| IIEES SC | SHRO | Z | EPn | E | 2024-12-04 15:05:00 | -6.3 | n | 4 | 503 | 352 | ||
| IIEES SC | GHIR | Z | EPn | E | 2024-12-04 15:05:08 | -0.1 | y | 0 | 511 | 225 | ||
| IIEES SC | SBZV | Z | EPn | E | 2024-12-04 15:05:13 | 0.5 | y | 0 | 546 | 8 | ||
| IIEES SC | JRKH | Z | EPn | E | 2024-12-04 15:05:18 | 0.5 | y | 0 | 589 | 34 | ||
| IIEES SC | ABGH | Z | EPn | E | 2024-12-04 15:05:20 | 0.9 | y | 0 | 606 | 343 | ||
| IIEES SC | GLO | Z | EPn | E | 2024-12-04 15:05:21 | 0.7 | y | 0 | 615 | 334 | ||
| IIEES SC | DAMV | Z | EPn | E | 2024-12-04 15:05:22 | -1.1 | y | 0 | 637 | 316 | ||
| IIEES SC | IRSR | Z | EPn | E | 2024-12-04 15:05:24 | 0.5 | y | 0 | 643 | 142 | ||
| IIEES SC | MRVT | Z | EPn | E | 2024-12-04 15:05:30 | 1 | y | 0 | 684 | 355 | ||
