Magnitude |
:3.6 |
| Date & Time (UTC) | 2015-12-23 02:18:51.4 |
| Date & Time (Local) | 1394/10/2 05:48:51.4 |

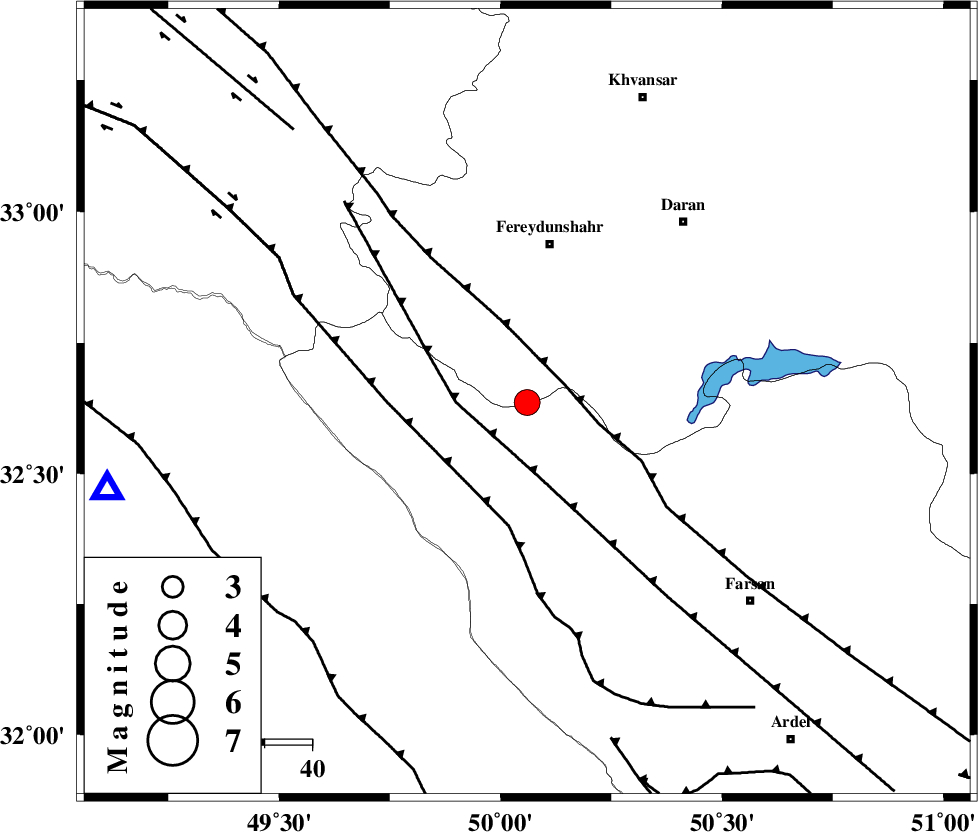

| Location | Lat:32.636 Lon: 50.06 |
| Region | Esfahan Province, 20 km North of Chelgard |
Nearest Cities |
|
| 19 km West of Ghale? sorkh, Esfahan Province | |
| 20 km East of Durak, Chaharmahal Bakhtiari Province | |
| 20 km North of Chelgard, Chaharmahal Bakhtiari Province | |
| 23 km North West of Kukanak, Esfahan Province | |
| 28 km South of Sibak, Esfahan Province | |
| Depth | 17 km |
| Agency | |
Faults within 150 km: |
|
| MAIN_ZAGROS_R_F (Length: 1106 km) , Distance to epicenter: 9 km | |
| ARDAL_F (Length: 170 km) , Distance to epicenter: 15 km | |
| ZARDKUH_F (Length: 139 km) , Distance to epicenter: 26 km | |
| Number of Phases | 21 |
| RMS | 0.3 |
| Number of Stations | 18 |
| Error in Latitude | >3.1 km |
| Error in Longitude | 4.1 km |
| Error in Depth | 6.6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 103018 | IIEES | KHMZ | N | 703.4 | 0.55 | 2015-12-23 02:19:37 | 2015-12-23 05:58:00 | n |
| 103019 | IIEES | ASAO | N | 514.3 | 0.55 | 2015-12-23 02:19:59 | 2015-12-23 05:58:00 | n |
| 103020 | IIEES | ASAO | E | 444.7 | 0.49 | 2015-12-23 02:20:04 | 2015-12-23 05:58:00 | n |
| 103021 | IIEES | GHVR | N | 195 | 0.6 | 2015-12-23 02:20:13 | 2015-12-23 05:58:00 | n |
| 103022 | IIEES | NASN | E | 201.6 | 0.54 | 2015-12-23 02:20:09 | 2015-12-23 05:58:00 | n |
| 103023 | IIEES | SNGE | N | 104 | 0.51 | 2015-12-23 02:20:46 | 2015-12-23 05:58:00 | n |
| 103024 | IIEES | YZKH | N | 53.8 | 0.58 | 2015-12-23 02:21:03 | 2015-12-23 05:58:00 | n |
| 103025 | IIEES | YZKH | E | 76.5 | 0.63 | 2015-12-23 02:21:07 | 2015-12-23 05:58:00 | n |
| 103026 | IIEES | AHRM | E | 63 | 0.46 | 2015-12-23 02:20:38 | 2015-12-23 05:58:00 | n |
| 103027 | IIEES | AHRM | N | 76.1 | 0.53 | 2015-12-23 02:20:57 | 2015-12-23 05:58:00 | n |
| 103028 | IIEES | GHIR | N | 40.5 | 0.55 | 2015-12-23 02:21:06 | 2015-12-23 05:58:00 | n |
| 103029 | IIEES | GHIR | E | 41.7 | 0.27 | 2015-12-23 02:21:16 | 2015-12-23 05:58:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | KHMZ | Z | Pg | E | 2015-12-23 02:19:09 | -2.33 | n | 4 | 123 | 356 | ||
| IIEES | ASAO | Z | Pn | E | 2015-12-23 02:19:24 | -0.44 | y | 212 | 359 | |||
| IIEES | ASAO | N | Sg | E | 2015-12-23 02:19:51 | -0.14 | y | 212 | 359 | |||
| IIEES | GHVR | Z | Pn | E | 2015-12-23 02:19:27 | -0.02 | y | 232 | 28 | |||
| IIEES | NASN | Z | Pn | E | 2015-12-23 02:19:31 | -0.02 | y | 258 | 85 | |||
| IIEES | NASN | E | Sg | E | 2015-12-23 02:20:04 | 0.14 | y | 258 | 85 | |||
| IIEES | SNGE | Z | Pn | E | 2015-12-23 02:19:42 | -2.84 | n | 4 | 370 | 318 | ||
| IIEES | THKV | Z | Pn | E | 2015-12-23 02:19:45 | 0.19 | y | 372 | 11 | |||
| IIEES | CHTH | Z | Pn | E | 2015-12-23 02:19:45 | 0.06 | y | 376 | 15 | |||
| IIEES | DAMV | Z | Pn | E | 2015-12-23 02:19:46 | 0.42 | y | 376 | 27 | |||
| IIEES | YZKH | Z | Pn | E | 2015-12-23 02:19:51 | -0.3 | y | 427 | 92 | |||
| IIEES | AHRM | Z | Pn | E | 2015-12-23 02:19:52 | 0.09 | y | 434 | 164 | |||
| IIEES | ZNJK | Z | Pn | E | 2015-12-23 02:19:57 | 0.38 | y | 465 | 345 | |||
| IIEES | GHIR | Z | Pn | E | 2015-12-23 02:20:04 | -4.09 | n | 4 | 558 | 149 | ||
| IIEES | SHRO | Z | Pn | E | 2015-12-23 02:20:21 | -0.14 | y | 663 | 54 | |||
| IIEES | TABS | Z | Pn | E | 2015-12-23 02:20:21 | -0.28 | y | 668 | 78 | |||
| IIEES | KRBR | Z | Pn | E | 2015-12-23 02:20:24 | -1.97 | n | 4 | 702 | 113 | ||
| IIEES | GRMI | Z | Pn | E | 2015-12-23 02:20:27 | 0.06 | y | 713 | 345 | |||
| IIEES | MRVT | Z | Pn | E | 2015-12-23 02:20:36 | 0.17 | y | 782 | 43 | |||
| IIEES | BSRN | Z | Pn | E | 2015-12-23 02:20:44 | -0.59 | y | 857 | 93 | |||
| IIEES | SHRT | Z | Pn | E | 2015-12-23 02:20:58 | 0.49 | y | 961 | 81 | |||
