Magnitude |
:3.8 |
| Date & Time (UTC) | 2015-12-24 12:02:17.0 |
| Date & Time (Local) | 1394/10/3 15:32:17.0 |

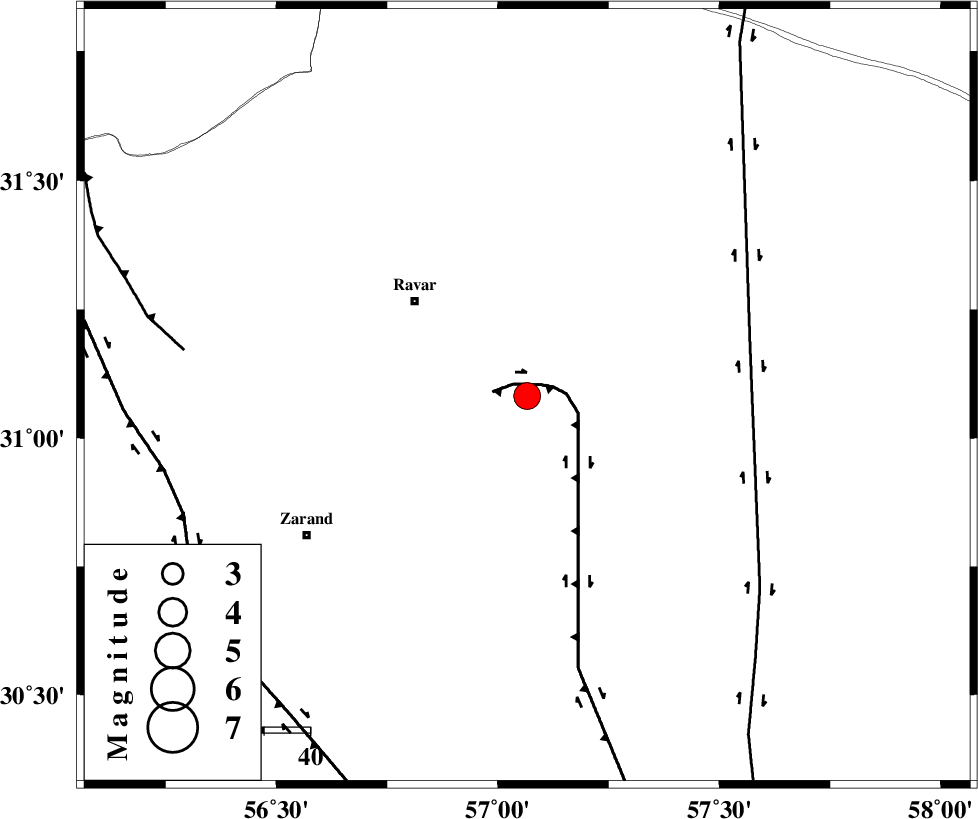

| Location | Lat:31.082 Lon: 57.066 |
| Region | Kerman Province, 32 km South-East of Ravar |
Nearest Cities |
|
| 32 km South East of Ravar, Kerman Province | |
| 37 km North of Hejdak, Kerman Province | |
| 37 km South East of Dehali, Kerman Province | |
| 38 km North East of Hatkan, Kerman Province | |
| 42 km North East of Ahmadi, Kerman Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| LAKARKUH_F (Length: 138 km) , Distance to epicenter: 8 km | |
| NAYBAND_F (Length: 258 km) , Distance to epicenter: 46 km | |
| KUHBANAN_F (Length: 189 km) , Distance to epicenter: 46 km | |
| Number of Phases | 16 |
| RMS | 0.4 |
| Number of Stations | 13 |
| Error in Latitude | >2.2 km |
| Error in Longitude | 2.5 km |
| Error in Depth | 5.9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 103059 | IIEES | KRBR | N | 1881.9 | 0.31 | 2015-12-24 12:02:56 | 2015-12-26 07:03:00 | n |
| 103060 | IIEES | KRBR | E | 1555.1 | 0.24 | 2015-12-24 12:02:57 | 2015-12-26 07:03:00 | n |
| 103061 | IIEES | BSRN | N | 636.8 | 0.45 | 2015-12-24 12:03:22 | 2015-12-26 07:03:00 | n |
| 103062 | IIEES | BSRN | E | 624.4 | 0.36 | 2015-12-24 12:03:22 | 2015-12-26 07:03:00 | n |
| 103063 | IIEES | YZKH | E | 715.8 | 0.46 | 2015-12-24 12:03:40 | 2015-12-26 07:03:00 | n |
| 103064 | IIEES | YZKH | N | 464.9 | 0.7 | 2015-12-24 12:03:40 | 2015-12-26 07:03:00 | n |
| 103065 | IIEES | TABS | N | 511.8 | 0.4 | 2015-12-24 12:03:50 | 2015-12-26 07:03:00 | n |
| 103066 | IIEES | TABS | E | 233.8 | 0.59 | 2015-12-24 12:03:56 | 2015-12-26 07:03:00 | n |
| 103067 | IIEES | SHRT | E | 73.3 | 0.59 | 2015-12-24 12:04:24 | 2015-12-26 07:03:00 | n |
| 103068 | IIEES | SHRT | N | 309 | 0.95 | 2015-12-24 12:04:37 | 2015-12-26 07:03:00 | n |
| 103069 | IIEES | GHIR | N | 41.8 | 0.56 | 2015-12-24 12:04:45 | 2015-12-26 07:03:00 | n |
| 103070 | IIEES | GHIR | E | 29.5 | 0.55 | 2015-12-24 12:04:54 | 2015-12-26 07:03:00 | n |
| 103071 | IIEES | SHRO | E | 119.5 | 0.44 | 2015-12-24 12:05:08 | 2015-12-26 07:03:00 | n |
| 103072 | IIEES | SHRO | N | 67.7 | 0.44 | 2015-12-24 12:05:16 | 2015-12-26 07:03:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | KRBR | Z | Pg | E | 2015-12-24 12:02:38 | 0.05 | y | 125 | 194 | |||
| IIEES | KRBR | N | Sg | E | 2015-12-24 12:02:53 | 0.06 | y | 125 | 194 | |||
| IIEES | BSRN | Z | Pn | E | 2015-12-24 12:02:51 | -0.34 | y | 219 | 63 | |||
| IIEES | BSRN | N | Sg | E | 2015-12-24 12:03:18 | -0.19 | y | 219 | 63 | |||
| IIEES | YZKH | Z | Pn | E | 2015-12-24 12:02:59 | -0.1 | y | 276 | 302 | |||
| IIEES | YZKH | E | Sg | E | 2015-12-24 12:03:35 | 0.08 | y | 276 | 302 | |||
| IIEES | TABS | Z | Pn | E | 2015-12-24 12:03:00 | 0.06 | y | 285 | 1 | |||
| IIEES | ZHSF | Z | Pn | E | 2015-12-24 12:03:13 | -0.13 | y | 392 | 114 | |||
| IIEES | SHRT | Z | Pn | E | 2015-12-24 12:03:17 | 0.98 | y | 416 | 46 | |||
| IIEES | GHIR | Z | Pn | E | 2015-12-24 12:03:27 | -0.01 | y | 502 | 233 | |||
| IIEES | SHRO | Z | Pn | E | 2015-12-24 12:03:33 | -0.17 | y | 555 | 350 | |||
| IIEES | DAMV | Z | Pn | E | 2015-12-24 12:03:50 | 0.02 | y | 692 | 318 | |||
| IIEES | MRVT | Z | Pn | E | 2015-12-24 12:03:56 | 0.33 | y | 735 | 353 | |||
| IIEES | BJRD | Z | Pn | E | 2015-12-24 12:03:56 | 0.38 | y | 735 | 2 | |||
| IIEES | ASAO | Z | Pn | E | 2015-12-24 12:03:59 | 0.06 | y | 763 | 302 | |||
| IIEES | CHTH | Z | Pn | E | 2015-12-24 12:03:59 | -1.26 | y | 769 | 316 | |||
