Magnitude |
:3 |
| Date & Time (UTC) | 2016-01-09 23:31:14.3 |
| Date & Time (Local) | 1394/10/20 03:01:14.3 |

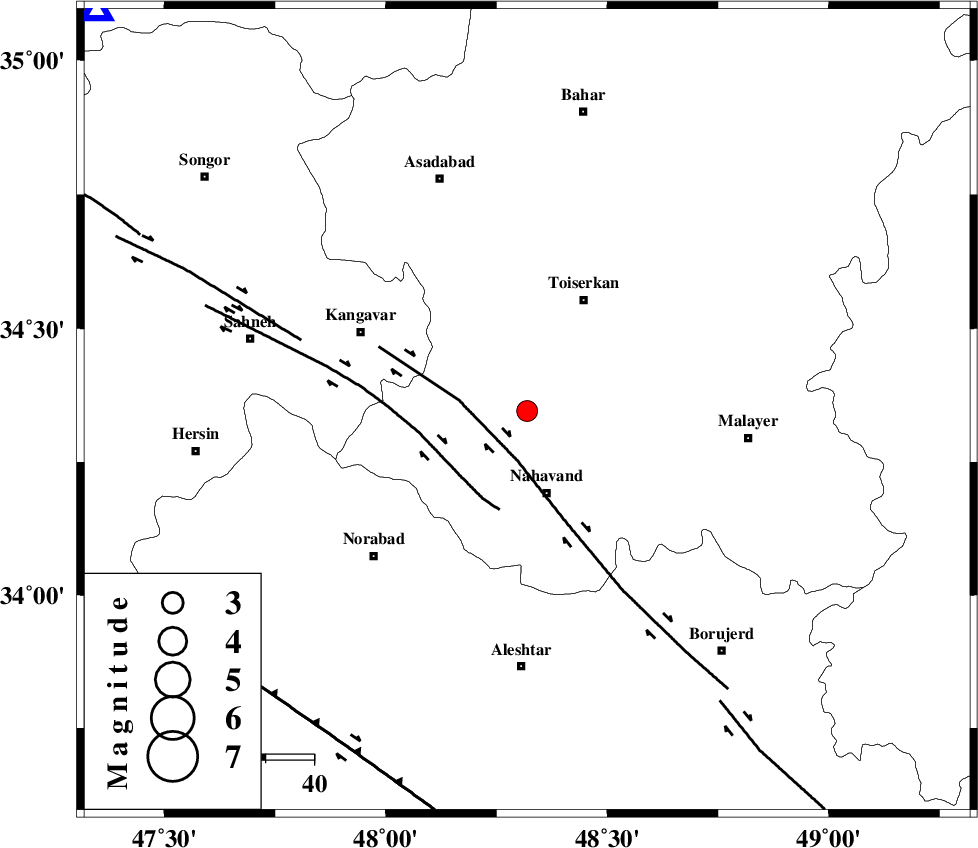

| Location | Lat:34.346 Lon: 48.319 |
| Region | Hamedan Province, 18 km North of Nahavand |
Nearest Cities |
|
| 11 km West of Miyandeh, Hamedan Province | |
| 13 km North of Dehghul, Hamedan Province | |
| 15 km East of Firuzan, Hamedan Province | |
| 15 km North of Barzul, Hamedan Province | |
| 16 km South of Farsang, Hamedan Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| NAHAVAND_F (Length: 102 km) , Distance to epicenter: 11 km | |
| SAHANEH_F (Length: 77 km) , Distance to epicenter: 19 km | |
| DINEHVAR_F (Length: 46 km) , Distance to epicenter: 49 km | |
| Number of Phases | 14 |
| RMS | 0.4 |
| Number of Stations | 12 |
| Error in Latitude | >3.8 km |
| Error in Longitude | 6.9 km |
| Error in Depth | 8.3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 103664 | IIEES | SNGE | N | 470.5 | 0.42 | 2016-01-09 23:32:03 | 2016-01-10 06:21:00 | n |
| 103665 | IIEES | ASAO | N | 204.6 | 0.54 | 2016-01-09 23:32:11 | 2016-01-10 06:21:00 | n |
| 103666 | IIEES | ASAO | E | 229.6 | 0.54 | 2016-01-09 23:32:12 | 2016-01-10 06:21:00 | n |
| 103667 | IIEES | KHMZ | N | 166.2 | 0.37 | 2016-01-09 23:32:09 | 2016-01-10 06:21:00 | n |
| 103668 | IIEES | ZNJK | E | 26.3 | 0.58 | 2016-01-09 23:32:36 | 2016-01-10 06:21:00 | n |
| 103669 | IIEES | GHVR | N | 61.7 | 0.54 | 2016-01-09 23:32:43 | 2016-01-10 06:21:00 | n |
| 103670 | IIEES | GHVR | E | 122.5 | 0.49 | 2016-01-09 23:32:47 | 2016-01-10 06:21:00 | n |
| 103671 | IIEES | CHTH | E | 19.6 | 0.52 | 2016-01-09 23:32:47 | 2016-01-10 06:21:00 | n |
| 103672 | IIEES | DAMV | N | 32.2 | 0.59 | 2016-01-09 23:33:05 | 2016-01-10 06:21:00 | n |
| 103673 | IIEES | DAMV | E | 34.8 | 0.53 | 2016-01-09 23:33:09 | 2016-01-10 06:21:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SNGE | Z | Pn | E | 2016-01-09 23:31:42 | 4.96 | n | 4 | 122 | 313 | ||
| IIEES | ASAO | Z | Pg | E | 2016-01-09 23:31:40 | -0.26 | y | 158 | 81 | |||
| IIEES | ASAO | E | Sg | E | 2016-01-09 23:31:59 | 0.01 | y | 158 | 81 | |||
| IIEES | KHMZ | Z | Pg | E | 2016-01-09 23:31:41 | 0.01 | y | 166 | 113 | |||
| IIEES | ZNJK | Z | Pn | E | 2016-01-09 23:31:54 | 0.2 | y | 260 | 7 | |||
| IIEES | ZNJK | E | Sg | E | 2016-01-09 23:32:27 | -0.33 | y | 260 | 7 | |||
| IIEES | GHVR | Z | Pn | E | 2016-01-09 23:31:59 | 3.71 | n | 4 | 269 | 86 | ||
| IIEES | THKV | Z | Pn | E | 2016-01-09 23:31:58 | 0.36 | y | 291 | 53 | |||
| IIEES | CHTH | Z | Pn | E | 2016-01-09 23:32:03 | 2.42 | n | 4 | 309 | 55 | ||
| IIEES | DAMV | Z | Pn | E | 2016-01-09 23:32:09 | 2.28 | n | 4 | 363 | 66 | ||
| IIEES | GRMI | Z | Pn | E | 2016-01-09 23:32:23 | 0.15 | y | 497 | 356 | |||
| IIEES | YZKH | Z | Pn | E | 2016-01-09 23:32:39 | 0.39 | y | 623 | 109 | |||
| IIEES | GHIR | Z | Pn | E | 2016-01-09 23:33:00 | -1.17 | y | 805 | 145 | |||
| IIEES | TABS | Z | Pn | E | 2016-01-09 23:33:03 | 0.41 | y | 816 | 93 | |||
