Magnitude |
:5.1 |
| Date & Time (UTC) | 2016-01-22 20:51:46.8 |
| Date & Time (Local) | 1394/11/3 00:21:46.8 |
| Location | Lat:28.383 Lon: 55.299 |
| Region | Fars Province, 60 km -West of Hajiabad |
Nearest Cities |
|
| 13 km North of Doborji, Fars Province | |
| 21 km South of Tal bargah, Fars Province | |
| 23 km North East of Fadami, Fars Province | |
| 23 km East of Rostaq, Fars Province | |
| 59 km North West of Darz, Fars Province | |
| Depth | 15 km |
| Agency | |

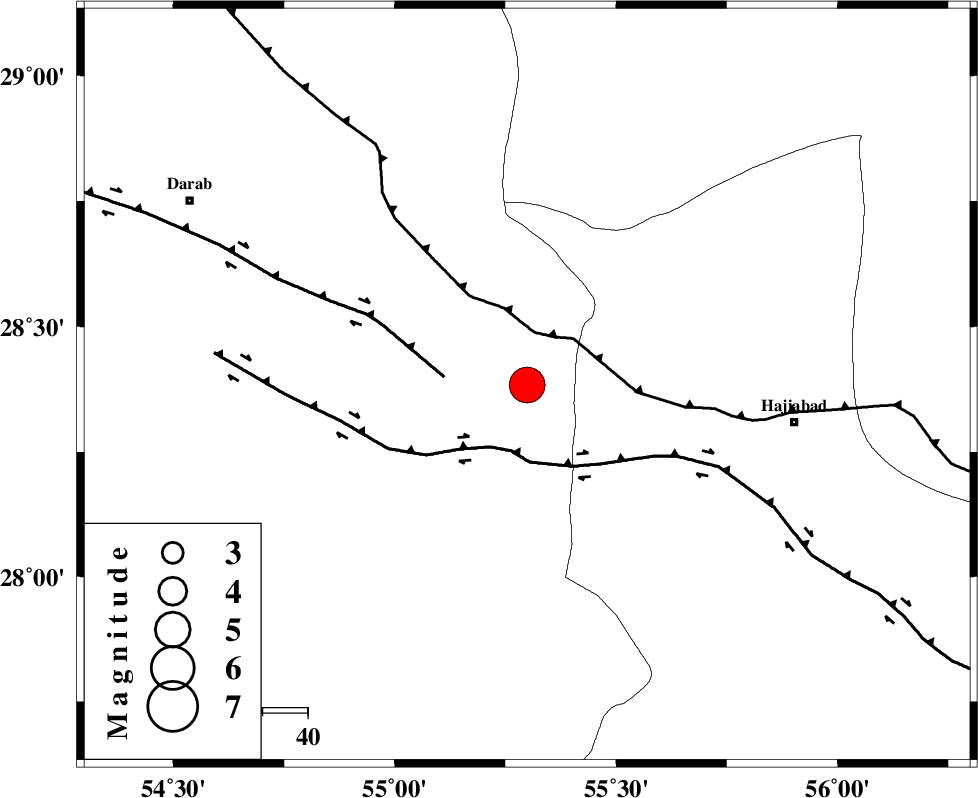

Faults within 150 km: |
|
| MAIN_ZAGROS_R_F (Length: 1106 km) , Distance to epicenter: 12 km | |
| HZF2 (Length: 437 km) , Distance to epicenter: 15 km | |
| HZF1 (Length: 102 km) , Distance to epicenter: 18 km | |
| Number of Phases | 23 |
| RMS | 0.5 |
| Number of Stations | 20 |
| Error in Latitude | >7.6 km |
| Error in Longitude | 4.5 km |
| Error in Depth | 8.5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 103857 | IIEES | KRBR | N | 17681.4 | 0.53 | 2016-01-22 20:53:02 | 2016-01-23 06:24:00 | n |
| 103858 | IIEES | KRBR | E | 16242.2 | 0.58 | 2016-01-22 20:52:59 | 2016-01-23 06:24:00 | n |
| 103859 | IIEES | GHIR | N | 6469.3 | 0.46 | 2016-01-22 20:53:09 | 2016-01-23 06:24:00 | n |
| 103860 | IIEES | YZKH | E | 1257.3 | 0.38 | 2016-01-22 20:54:14 | 2016-01-23 06:24:00 | n |
| 103861 | IIEES | BSRN | N | 986.9 | 0.8 | 2016-01-22 20:54:41 | 2016-01-23 06:24:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | KRBR | Z | Pn | E | 2016-01-22 20:52:23 | 0.15 | y | 227 | 38 | |||
| IIEES | GHIR | N | Sg | E | 2016-01-22 20:52:51 | 0.21 | y | 227 | 268 | |||
| IIEES | KRBR | N | Sg | E | 2016-01-22 20:52:51 | -0.23 | y | 227 | 38 | |||
| IIEES | GHIR | Z | Pn | E | 2016-01-22 20:52:22 | 0.17 | y | 227 | 268 | |||
| IIEES | AHRM | Z | Pn | E | 2016-01-22 20:52:42 | -0.88 | y | 395 | 279 | |||
| IIEES | YZKH | Z | Pn | E | 2016-01-22 20:52:51 | 1.26 | y | 449 | 351 | |||
| IIEES | BSRN | Z | Pn | E | 2016-01-22 20:53:01 | -0.56 | y | 542 | 42 | |||
| IIEES | NASN | Z | Pn | E | 2016-01-22 20:53:02 | 0.19 | y | 545 | 335 | |||
| IIEES | ZHSF | Z | Pn | E | 2016-01-22 20:53:03 | 0.21 | y | 551 | 74 | |||
| IIEES | TABS | Z | Pn | E | 2016-01-22 20:53:10 | 0.39 | y | 609 | 16 | |||
| IIEES | SHRT | Z | Pn | E | 2016-01-22 20:53:28 | 0.37 | y | 753 | 38 | |||
| IIEES | GHVR | Z | Pn | E | 2016-01-22 20:53:30 | -0.32 | y | 778 | 331 | |||
| IIEES | KHMZ | Z | Pn | E | 2016-01-22 20:53:31 | -0.17 | y | 782 | 321 | |||
| IIEES | ASAO | Z | Pn | E | 2016-01-22 20:53:39 | -0.15 | y | 847 | 325 | |||
| IIEES | SHRO | Z | Pn | E | 2016-01-22 20:53:39 | -0.66 | y | 848 | 4 | |||
| IIEES | DAMV | Z | Pn | E | 2016-01-22 20:53:42 | 0.37 | y | 863 | 339 | |||
| IIEES | CHTH | Z | Pn | E | 2016-01-22 20:53:49 | 0.01 | y | 923 | 336 | |||
| IIEES | THKV | Z | Pn | E | 2016-01-22 20:53:49 | -1.12 | y | 933 | 335 | |||
| IIEES | MRVT | Z | Pn | E | 2016-01-22 20:54:02 | -0.23 | y | 1032 | 4 | |||
| IIEES | BJRD | Z | Pn | E | 2016-01-22 20:54:05 | 0.26 | y | 1052 | 10 | |||
| IIEES | SNGE | Z | Pn | E | 2016-01-22 20:54:00 | -5.14 | n | 4 | 1058 | 317 | ||
| IIEES | ZNJK | Z | Pn | E | 2016-01-22 20:54:11 | -1.19 | y | 1109 | 328 | |||
| IIEES | GRMI | Z | Pn | E | 2016-01-22 20:54:40 | -0.56 | y | 1344 | 331 | |||
