Magnitude |
:4.2 |
| Date & Time (UTC) | 2016-01-21 19:28:59.2 |
| Date & Time (Local) | 1394/11/1 22:58:59.2 |
| Location | Lat:27.219 Lon: 54.836 |
| Region | Hormozgan Province, 47 km -East of Bastak |
Nearest Cities |
|
| 47 km North East of Bastak, Hormozgan Province | |
| 59 km North East of Jenah, Hormozgan Province | |
| 70 km South East of Latifi, Fars Province | |
| 71 km South East of Lar, Fars Province | |
| 77 km North of Bandar-e lengeh, Hormozgan Province | |
| Depth | 15 km |
| Agency | |

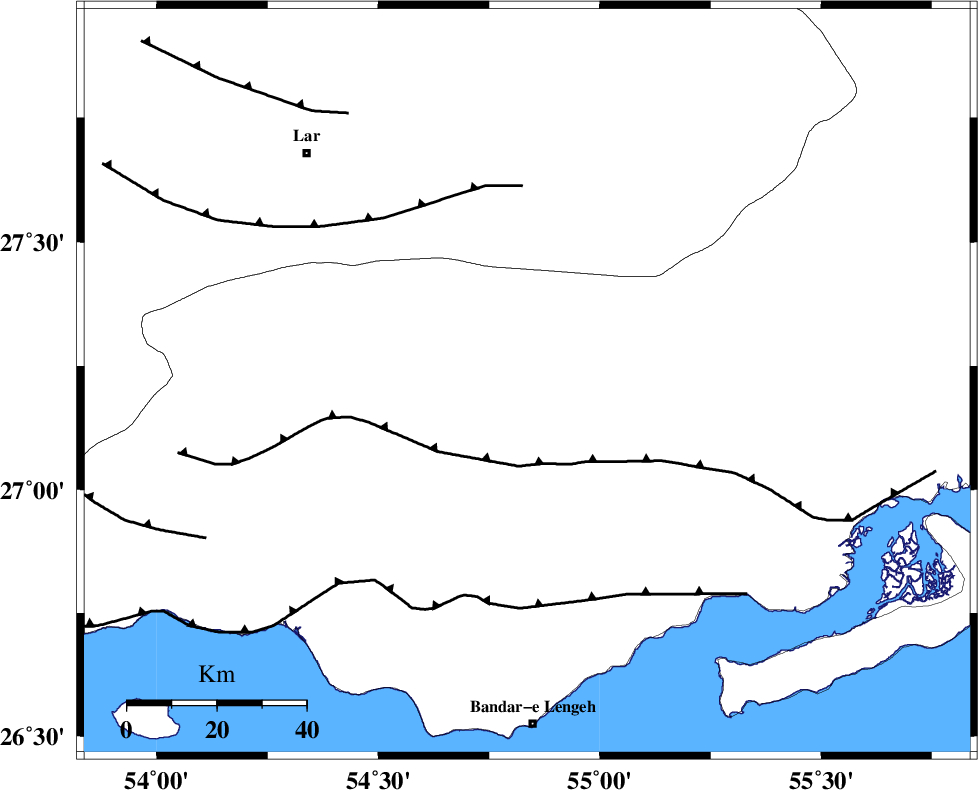

Faults within 150 km: |
|
| MFF1 (Length: 180 km) , Distance to epicenter: 19 km | |
| LAR_F (Length: 99 km) , Distance to epicenter: 44 km | |
| ZFF1 (Length: 165 km) , Distance to epicenter: 50 km | |
| Number of Phases | 20 |
| RMS | 0.4 |
| Number of Stations | 16 |
| Error in Latitude | >8.9 km |
| Error in Longitude | 4.3 km |
| Error in Depth | 7.9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 103866 | IIEES | GHIR | N | 2822.2 | 0.55 | 2016-01-21 19:30:11 | 2016-01-23 08:16:00 | n |
| 103867 | IIEES | GHIR | E | 2011.2 | 0.69 | 2016-01-21 19:30:27 | 2016-01-23 08:16:00 | n |
| 103868 | IIEES | KRBR | E | 621.5 | 0.46 | 2016-01-21 19:30:46 | 2016-01-23 08:16:00 | n |
| 103869 | IIEES | KRBR | N | 598.6 | 0.63 | 2016-01-21 19:30:48 | 2016-01-23 08:16:00 | n |
| 103870 | IIEES | AHRM | E | 297.1 | 0.79 | 2016-01-21 19:31:12 | 2016-01-23 08:16:00 | n |
| 103871 | IIEES | AHRM | N | 532 | 0.79 | 2016-01-21 19:31:17 | 2016-01-23 08:16:00 | n |
| 103872 | IIEES | YZKH | N | 65.8 | 0.75 | 2016-01-21 19:31:19 | 2016-01-23 08:16:00 | n |
| 103873 | IIEES | YZKH | E | 70.8 | 0.71 | 2016-01-21 19:31:53 | 2016-01-23 08:16:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GHIR | Z | Pg | E | 2016-01-21 19:29:34 | -0.05 | y | 217 | 303 | |||
| IIEES | GHIR | N | Sg | E | 2016-01-21 19:30:01 | 0.35 | y | 217 | 303 | |||
| IIEES | KRBR | Z | Pn | E | 2016-01-21 19:29:51 | 0.16 | y | 359 | 31 | |||
| IIEES | AHRM | Z | Pn | E | 2016-01-21 19:29:55 | -0.11 | y | 393 | 298 | |||
| IIEES | YZKH | Z | Pn | E | 2016-01-21 19:30:18 | 0.25 | y | 574 | 358 | |||
| IIEES | ZHSF | Z | Pn | E | 2016-01-21 19:30:26 | 0.59 | y | 639 | 64 | |||
| IIEES | NASN | Z | Pn | E | 2016-01-21 19:30:27 | -0.43 | y | 649 | 343 | |||
| IIEES | BSRN | Z | Pn | E | 2016-01-21 19:30:29 | -0.92 | n | 4 | 670 | 37 | ||
| IIEES | TABS | Z | Pn | E | 2016-01-21 19:30:39 | -0.29 | y | 746 | 17 | |||
| IIEES | KHMZ | Z | Pn | E | 2016-01-21 19:30:53 | -0.54 | y | 861 | 328 | |||
| IIEES | GHVR | Z | Pn | E | 2016-01-21 19:30:55 | 0.21 | y | 875 | 338 | |||
| IIEES | SHRT | Z | Pn | E | 2016-01-21 19:30:56 | 0.07 | y | 884 | 35 | |||
| IIEES | ASAO | Z | P | E | 2016-01-21 19:31:02 | -0.41 | y | 934 | 332 | |||
| IIEES | DAMV | Z | Pn | E | 2016-01-21 19:31:07 | -0.12 | y | 972 | 344 | |||
| IIEES | SHRO | Z | Pn | E | 2016-01-21 19:31:06 | -1.83 | n | 4 | 981 | 6 | ||
| IIEES | CHTH | Z | Pn | E | 2016-01-21 19:31:13 | -0.77 | y | 1026 | 341 | |||
| IIEES | SNGE | Z | Pn | E | 2016-01-21 19:31:22 | -4.44 | n | 4 | 1127 | 323 | ||
| IIEES | MRVT | Z | Pn | E | 2016-01-21 19:31:30 | -1.01 | y | 1164 | 5 | |||
| IIEES | ZNJK | Z | Pn | E | 2016-01-21 19:31:35 | -0.18 | y | 1198 | 333 | |||
| IIEES | GRMI | Z | Pn | E | 2016-01-21 19:32:05 | 0.16 | y | 1439 | 335 | |||
