Magnitude |
:3.2 |
| Date & Time (UTC) | 2016-05-06 20:27:55.0 |
| Date & Time (Local) | 1395/2/18 00:57:55.0 |

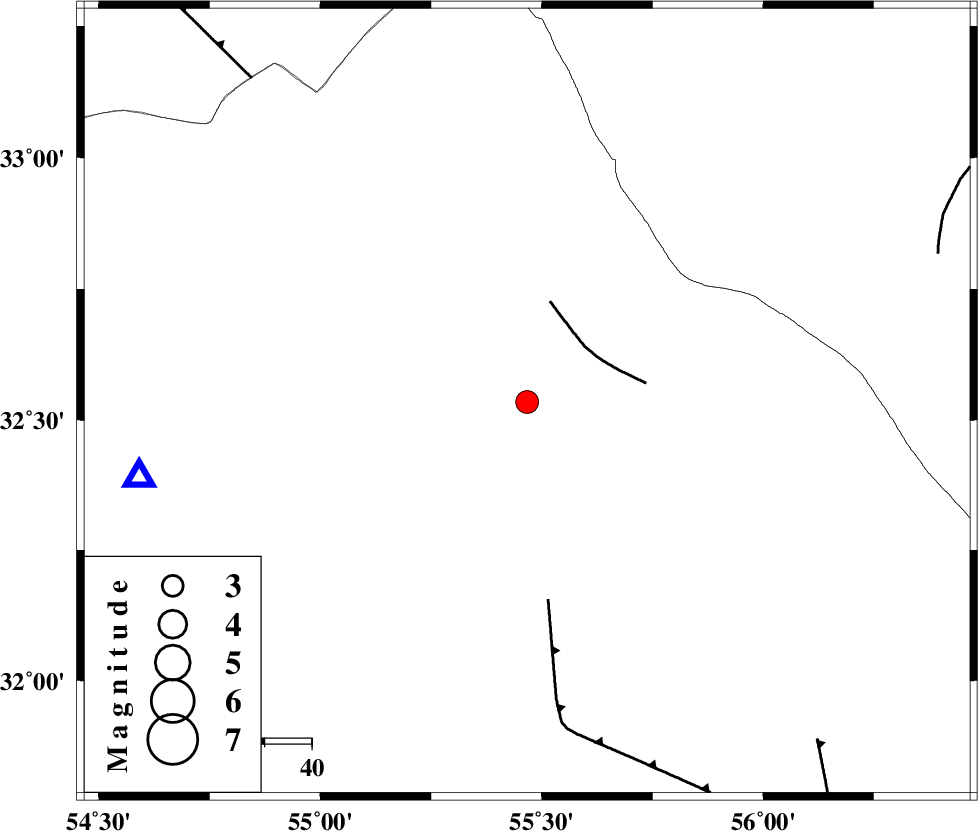

| Location | Lat:32.534 Lon: 55.467 |
| Region | Yazd Province, 104 km North of Bafq |
Nearest Cities |
|
| 55 km South of Robat-e posht-e badam, Yazd Province | |
| 79 km North East of Kharaneq, Yazd Province | |
| 79 km South East of Zarrin, Yazd Province | |
| 81 km South East of Hajiabad, Yazd Province | |
| 91 km North West of Behabad, Yazd Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| POSHT_E_BADAM_F (Length: 128 km) , Distance to epicenter: 18 km | |
| SARBALA_F (Length: 92 km) , Distance to epicenter: 27 km | |
| NAINI_F (Length: 342 km) , Distance to epicenter: 47 km | |
| Number of Phases | 14 |
| RMS | 0.8 |
| Number of Stations | 13 |
| Error in Latitude | >8.4 km |
| Error in Longitude | 6 km |
| Error in Depth | 9.9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 105976 | IIEES | YZKH | E | 543 | 0.17 | 2016-05-06 20:28:19 | 2016-05-07 05:42:00 | n |
| 105977 | IIEES | YZKH | N | 477.8 | 0.33 | 2016-05-06 20:28:22 | 2016-05-07 05:42:00 | n |
| 105978 | IIEES | TABS | N | 164.4 | 0.41 | 2016-05-06 20:29:02 | 2016-05-07 05:42:00 | n |
| 105979 | IIEES | NASN | N | 98 | 0.4 | 2016-05-06 20:29:11 | 2016-05-07 05:42:00 | n |
| 105980 | IIEES | NASN | E | 98.8 | 0.32 | 2016-05-06 20:29:11 | 2016-05-07 05:42:00 | n |
| 105981 | IIEES | KRBR | E | 156.2 | 0.48 | 2016-05-06 20:29:33 | 2016-05-07 05:42:00 | n |
| 105982 | IIEES | KRBR | N | 89.4 | 0.4 | 2016-05-06 20:29:33 | 2016-05-07 05:42:00 | n |
| 105983 | IIEES | BSRN | E | 39.7 | 0.42 | 2016-05-06 20:29:40 | 2016-05-07 05:42:00 | n |
| 105984 | IIEES | BSRN | N | 54.7 | 0.47 | 2016-05-06 20:29:47 | 2016-05-07 05:42:00 | n |
| 105985 | IIEES | SHRO | N | 30.1 | 0.38 | 2016-05-06 20:29:56 | 2016-05-07 05:42:00 | n |
| 105986 | IIEES | SHRO | E | 28.6 | 0.43 | 2016-05-06 20:29:58 | 2016-05-07 05:42:00 | n |
| 105987 | IIEES | GHVR | E | 21.5 | 0.42 | 2016-05-06 20:30:15 | 2016-05-07 05:42:00 | n |
| 105988 | IIEES | CHTH | E | 7.1 | 0.76 | 2016-05-06 20:30:50 | 2016-05-07 05:42:00 | n |
| 105989 | IIEES | THKV | N | 14.9 | 0.42 | 2016-05-06 20:30:34 | 2016-05-07 05:42:00 | n |
| 105990 | IIEES | THKV | E | 21.2 | 0.74 | 2016-05-06 20:30:35 | 2016-05-07 05:42:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | YZKH | Z | Pg | E | 2016-05-06 20:28:09 | -0.58 | y | 83.8 | 259 | |||
| IIEES | YZKH | N | Sg | E | 2016-05-06 20:28:18 | -1.38 | y | 83.8 | 259 | |||
| IIEES | TABS | Z | Pg | E | 2016-05-06 20:28:26 | -0.81 | y | 198 | 51 | |||
| IIEES | NASN | Z | Pn | E | 2016-05-06 20:28:34 | 0.69 | y | 251 | 277 | |||
| IIEES | KRBR | Z | Pn | E | 2016-05-06 20:28:42 | 0.87 | y | 309 | 156 | |||
| IIEES | BSRN | Z | Pn | E | 2016-05-06 20:28:45 | -0.56 | y | 350 | 99 | |||
| IIEES | SHRO | Z | Pn | E | 2016-05-06 20:28:50 | -0.27 | y | 389 | 7 | |||
| IIEES | GHVR | Z | Pn | E | 2016-05-06 20:28:59 | 1.12 | y | 448 | 300 | |||
| IIEES | KHMZ | Z | Pn | E | 2016-05-06 20:29:10 | 1.48 | y | 531 | 286 | |||
| IIEES | CHTH | Z | Pn | E | 2016-05-06 20:29:10 | 0.07 | y | 548 | 314 | |||
| IIEES | ASAO | Z | Pn | E | 2016-05-06 20:29:11 | -0.08 | y | 553 | 295 | |||
| IIEES | THKV | Z | Pn | E | 2016-05-06 20:29:13 | 0.98 | y | 565 | 313 | |||
| IIEES | MRVT | Z | Pn | E | 2016-05-06 20:29:13 | -0.58 | y | 571 | 6 | |||
| IIEES | BJRD | Z | Pn | E | 2016-05-06 20:29:17 | -0.02 | y | 600 | 17 | |||
