Magnitude |
:2.7 |
| Date & Time (UTC) | 2016-05-08 14:19:13.7 |
| Date & Time (Local) | 1395/2/19 18:49:13.7 |
| Location | Lat:33.033 Lon: 47.362 |
| Region | Ilam Province, 12 km of Darreh Shahr |
Nearest Cities |
|
| 12 km of Darreh Shahr, Ilam Province | |
| 15 km South of Dashtabad-e olia, Ilam Province | |
| 15 km North West of Abdanan, Ilam Province | |
| 24 km North West of Sarabbagh, Ilam Province | |
| 29 km South West of Chaqabol, Lorestan Province | |
| Depth | 14 km |
| Agency | |

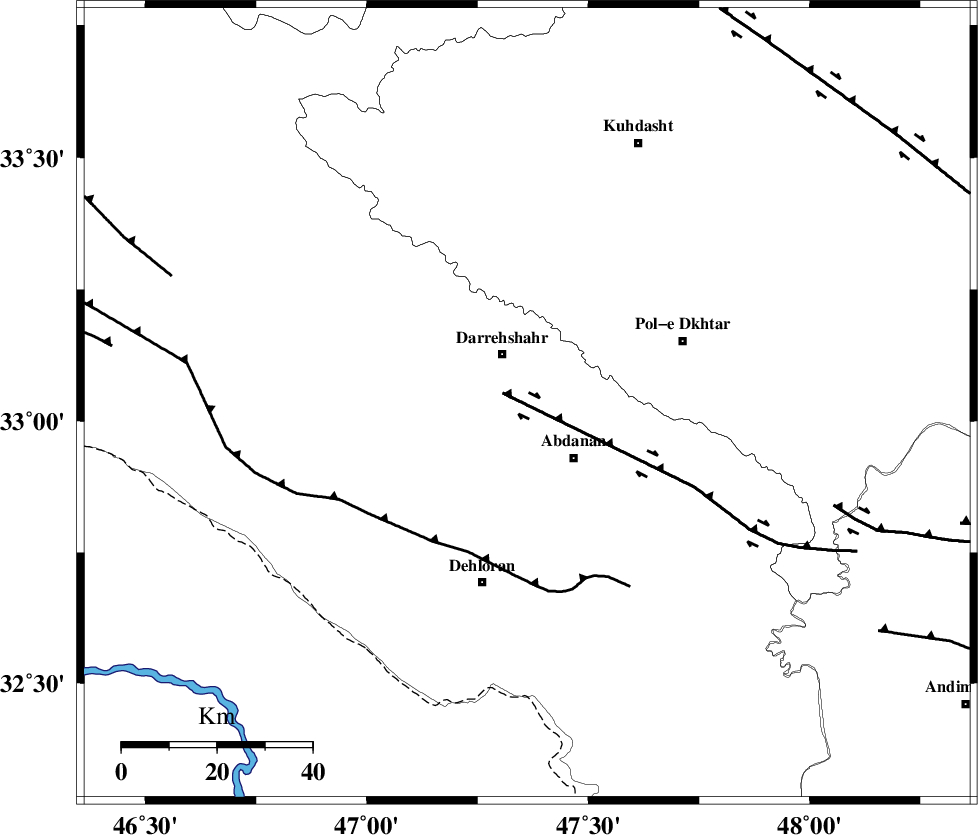

Faults within 150 km: |
|
| BALARUD_F_Z1 (Length: 87 km) , Distance to epicenter: 6 km | |
| MFF6 (Length: 144 km) , Distance to epicenter: 34 km | |
| BALARUD_F_Z3 (Length: 53 km) , Distance to epicenter: 68 km | |
| Number of Phases | 8 |
| RMS | 0.1 |
| Number of Stations | 6 |
| Error in Latitude | >6.9 km |
| Error in Longitude | 5.5 km |
| Error in Depth | 11.8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 106046 | IIEES | SNGE | N | 45.7 | 0.38 | 2016-05-08 14:20:24 | 2016-05-09 09:59:00 | n |
| 106047 | IIEES | KHMZ | E | 26.3 | 0.48 | 2016-05-08 14:20:35 | 2016-05-09 09:59:00 | n |
| 106048 | IIEES | ASAO | E | 26.4 | 0.59 | 2016-05-08 14:20:46 | 2016-05-09 09:59:00 | n |
| 106049 | IIEES | ASAO | N | 24.7 | 0.54 | 2016-05-08 14:20:52 | 2016-05-09 09:59:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SNGE | Z | Pn | E | 2016-05-08 14:19:49 | -0.06 | y | 228 | 360 | |||
| IIEES | SNGE | N | Sg | E | 2016-05-08 14:20:18 | 0.05 | y | 228 | 360 | |||
| IIEES | KHMZ | Z | Pn | E | 2016-05-08 14:19:53 | 0.13 | y | 254 | 71 | |||
| IIEES | ASAO | Z | Pn | E | 2016-05-08 14:19:58 | 0.02 | y | 298 | 55 | |||
| IIEES | ASAO | N | Sg | E | 2016-05-08 14:20:37 | -0.06 | y | 298 | 55 | |||
| IIEES | ZNJK | Z | Pn | E | 2016-05-08 14:20:13 | 0.07 | y | 421 | 16 | |||
| IIEES | NASN | Z | Pn | E | 2016-05-08 14:20:24 | -0.07 | y | 510 | 91 | |||
| IIEES | GRMI | Z | Pn | E | 2016-05-08 14:20:41 | -0.18 | y | 643 | 4 | |||
