Magnitude |
:2.9 |
| Date & Time (UTC) | 2016-05-14 04:10:35.8 |
| Date & Time (Local) | 1395/2/25 08:40:35.8 |
| Location | Lat:31.574 Lon: 56.194 |
| Region | Yazd Province, 75 km -East of Bafq |
Nearest Cities |
|
| 11 km of Asfih, Yazd Province | |
| 20 km North of Kuhbanan, Kerman Province | |
| 21 km South East of Benestan, Yazd Province | |
| 22 km North East of Basab, Yazd Province | |
| 25 km North of Jor, Kerman Province | |
| Depth | 14 km |
| Agency | |

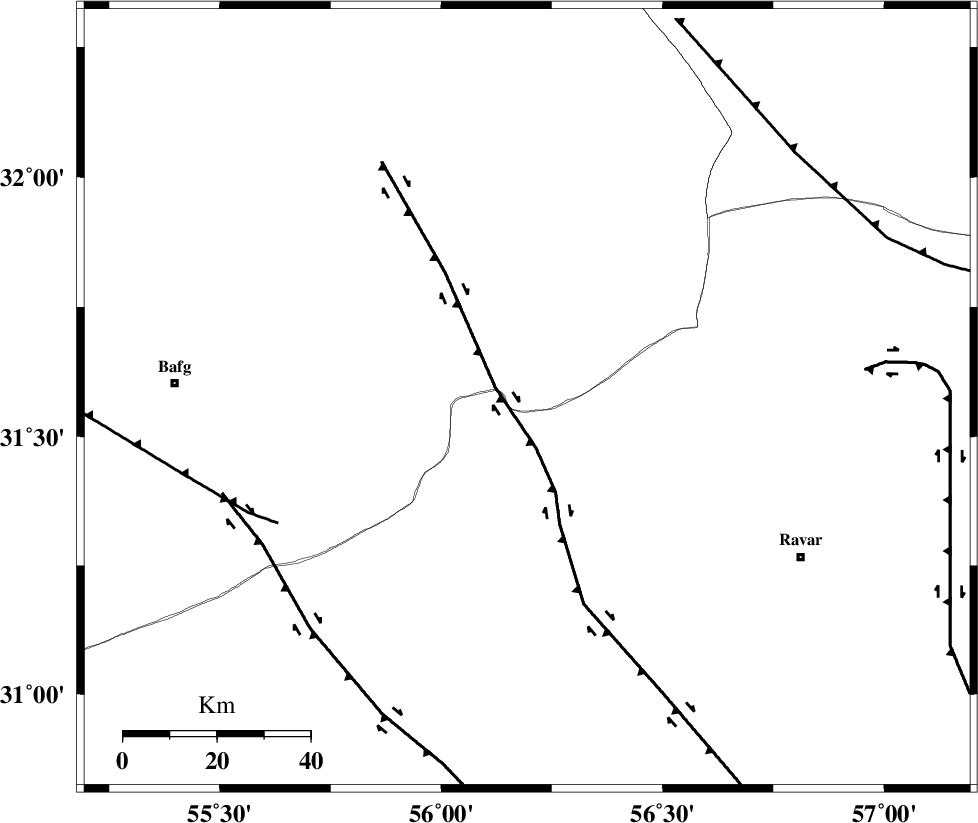

Faults within 150 km: |
|
| KUHBANAN_F (Length: 189 km) , Distance to epicenter: 7 km | |
| JAFARABAD_F (Length: 60 km) , Distance to epicenter: 16 km | |
| DARIVAN_F (Length: 131 km) , Distance to epicenter: 65 km | |
| Number of Phases | 9 |
| RMS | 0.2 |
| Number of Stations | 6 |
| Error in Latitude | >3.5 km |
| Error in Longitude | 4.5 km |
| Error in Depth | 8.5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 106111 | IIEES | YZKH | N | 214.2 | 0.42 | 2016-05-14 04:11:29 | 2016-05-14 05:22:00 | n |
| 106112 | IIEES | YZKH | E | 116.7 | 0.55 | 2016-05-14 04:11:30 | 2016-05-14 05:22:00 | n |
| 106113 | IIEES | KRBR | E | 177.3 | 0.38 | 2016-05-14 04:11:33 | 2016-05-14 05:22:00 | n |
| 106114 | IIEES | KRBR | N | 169.6 | 0.38 | 2016-05-14 04:11:33 | 2016-05-14 05:22:00 | n |
| 106115 | IIEES | TABS | N | 43.8 | 0.24 | 2016-05-14 04:11:54 | 2016-05-14 05:22:00 | n |
| 106116 | IIEES | BSRN | E | 21.4 | 0.55 | 2016-05-14 04:12:05 | 2016-05-14 05:22:00 | n |
| 106117 | IIEES | NASN | E | 16.2 | 0.61 | 2016-05-14 04:12:19 | 2016-05-14 05:22:00 | n |
| 106118 | IIEES | SHRO | E | 7.9 | 0.49 | 2016-05-14 04:13:09 | 2016-05-14 05:22:00 | n |
| 106119 | IIEES | SHRO | N | 8.5 | 0.49 | 2016-05-14 04:13:10 | 2016-05-14 05:22:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | YZKH | Z | Pg | E | 2016-05-14 04:11:04 | -0.1 | y | 176 | 301 | |||
| IIEES | YZKH | N | Sg | E | 2016-05-14 04:11:26 | -0.18 | y | 176 | 301 | |||
| IIEES | KRBR | Z | Pg | E | 2016-05-14 04:11:06 | -0.02 | y | 185 | 163 | |||
| IIEES | KRBR | N | Sg | E | 2016-05-14 04:11:28 | -0.01 | y | 185 | 163 | |||
| IIEES | TABS | Z | Pn | E | 2016-05-14 04:11:14 | 0.34 | y | 246 | 20 | |||
| IIEES | BSRN | Z | Pn | E | 2016-05-14 04:11:18 | -0.21 | y | 281 | 80 | |||
| IIEES | NASN | Z | Pn | E | 2016-05-14 04:11:27 | 0.45 | y | 347 | 294 | |||
| IIEES | SHRT | Z | Pn | E | 2016-05-14 04:11:33 | -5.93 | n | 4 | 448 | 58 | ||
| IIEES | SHRO | Z | Pn | E | 2016-05-14 04:11:44 | -0.33 | y | 492 | 358 | |||
