Magnitude |
:4.1 |
| Date & Time (UTC) | 2016-05-20 11:59:09.5 |
| Date & Time (Local) | 1395/2/31 16:29:09.5 |

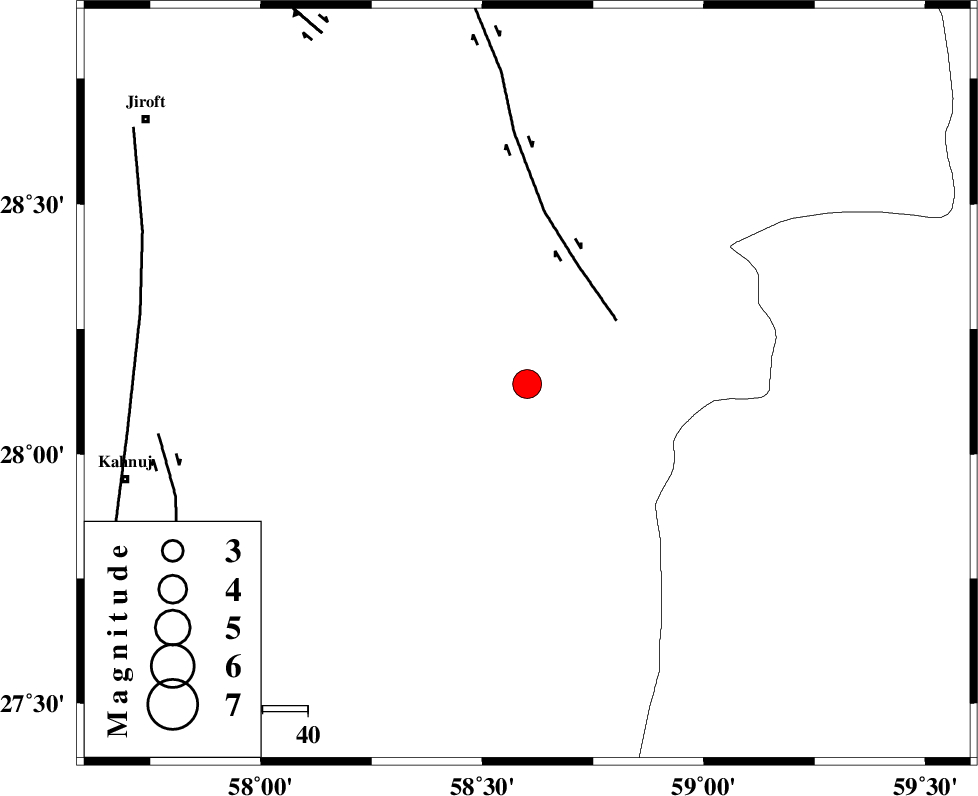

| Location | Lat:28.14 Lon: 58.601 |
| Region | Kerman Province, 91 km North-East of Kahnuj |
Nearest Cities |
|
| 15 km North of Borj-e abbasabad, Kerman Province | |
| 48 km South East of Mardehak, Kerman Province | |
| 69 km South West of Mohammadabad-e gonbaki, Kerman Province | |
| 71 km South East of Dosari, Kerman Province | |
| 73 km South East of Dahane-ye gomrokan, Kerman Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| BAM_F (Length: 118 km) , Distance to epicenter: 24 km | |
| JIROFT_F (Length: 144 km) , Distance to epicenter: 82 km | |
| SABZEVARAN_F (Length: 190 km) , Distance to epicenter: 87 km | |
| Number of Phases | 12 |
| RMS | 0.2 |
| Number of Stations | 12 |
| Error in Latitude | >8.4 km |
| Error in Longitude | 1.8 km |
| Error in Depth | 0 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 106201 | IIEES | KRBR | N | 848 | 0.58 | 2016-05-20 12:00:27 | 2016-05-21 05:03:00 | n |
| 106202 | IIEES | KRBR | E | 828.3 | 0.2 | 2016-05-20 12:00:28 | 2016-05-21 05:03:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | KRBR | Z | Pn | E | 2016-05-20 11:59:53 | 2.37 | n | 4 | 272 | 319 | ||
| IIEES | BSRN | Z | Pn | E | 2016-05-20 12:00:10 | -0.17 | y | 427 | 7 | |||
| IIEES | YZKH | Z | Pn | E | 2016-05-20 12:00:33 | 0.17 | y | 609 | 322 | |||
| IIEES | TABS | Z | Pn | E | 2016-05-20 12:00:35 | 0.12 | y | 627 | 347 | |||
| IIEES | SHRT | Z | Pn | E | 2016-05-20 12:00:35 | 0.21 | y | 632 | 14 | |||
| IIEES | AHRM | Z | Pn | E | 2016-05-20 12:00:46 | -0.02 | y | 719 | 278 | |||
| IIEES | NASN | Z | Pn | E | 2016-05-20 12:00:51 | -0.18 | y | 759 | 314 | |||
| IIEES | SHRO | Z | P | E | 2016-05-20 12:01:09 | -0.13 | y | 906 | 345 | |||
| IIEES | GHVR | Z | Pn | E | 2016-05-20 12:01:20 | 0.21 | y | 992 | 317 | |||
| IIEES | ASAO | Z | Pn | E | 2016-05-20 12:01:31 | -0.24 | y | 1081 | 313 | |||
| IIEES | MRVT | Z | P | E | 2016-05-20 12:01:31 | -0.34 | y | 1082 | 348 | |||
| IIEES | CHTH | Z | P | E | 2016-05-20 12:01:35 | 0.18 | y | 1113 | 323 | |||
