Magnitude |
:2.8 |
| Date & Time (UTC) | 2016-05-31 21:47:16.9 |
| Date & Time (Local) | 1395/3/12 02:17:16.9 |
| Location | Lat:32.04 Lon: 56.131 |
| Region | Yazd Province, 85 km North-East of Bafq |
Nearest Cities |
|
| 21 km North East of Behabad, Yazd Province | |
| 34 km North of Benestan, Yazd Province | |
| 42 km North of Asfih, Yazd Province | |
| 47 km North East of Kushk, Yazd Province | |
| 64 km North East of Basab, Yazd Province | |
| Depth | 14 km |
| Agency | |

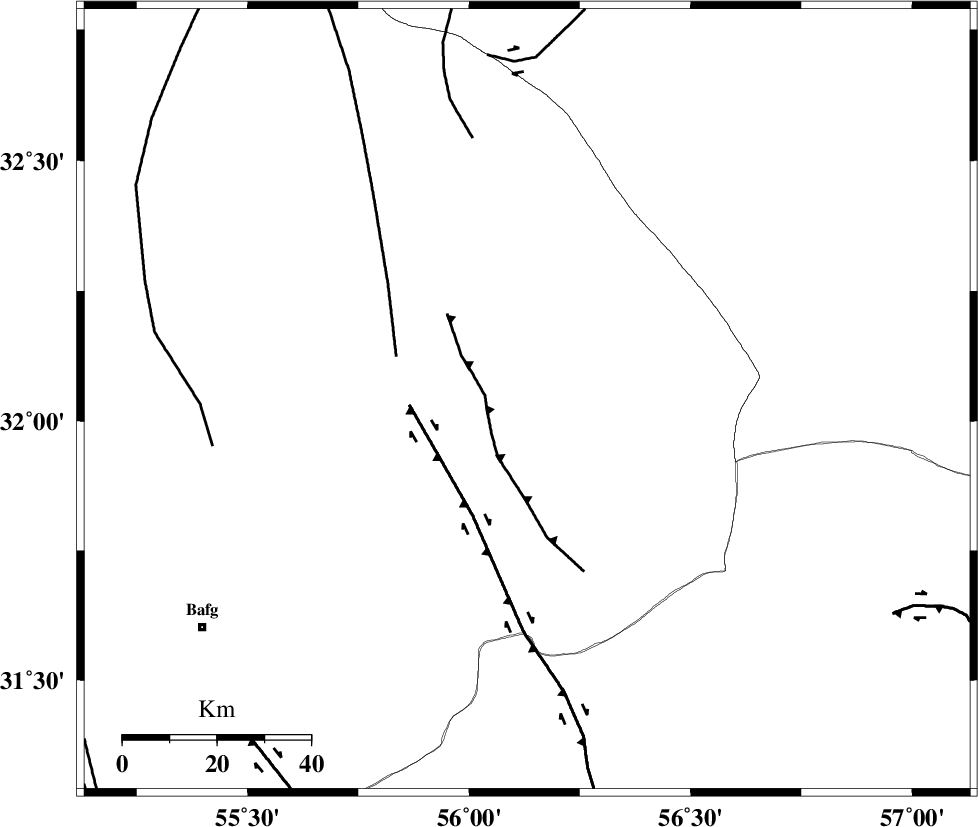

Faults within 150 km: |
|
| JAFARABAD_F (Length: 60 km) , Distance to epicenter: 9 km | |
| KUHBANAN_F (Length: 189 km) , Distance to epicenter: 25 km | |
| SARBALA_F (Length: 92 km) , Distance to epicenter: 29 km | |
| Number of Phases | 11 |
| RMS | 0.4 |
| Number of Stations | 9 |
| Error in Latitude | >3.5 km |
| Error in Longitude | 4.2 km |
| Error in Depth | 9.7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 106455 | IIEES | YZKH | E | 101.9 | 0.38 | 2016-05-31 21:48:01 | 2016-06-01 03:32:00 | n |
| 106456 | IIEES | TABS | N | 46 | 0.42 | 2016-05-31 21:48:28 | 2016-06-01 03:32:00 | n |
| 106457 | IIEES | KRBR | E | 106.2 | 0.53 | 2016-05-31 21:48:26 | 2016-06-01 03:32:00 | n |
| 106458 | IIEES | NASN | N | 15.3 | 0.52 | 2016-05-31 21:48:53 | 2016-06-01 03:32:00 | n |
| 106459 | IIEES | SHRO | E | 17.3 | 0.46 | 2016-05-31 21:49:25 | 2016-06-01 03:32:00 | n |
| 106460 | IIEES | SHRO | N | 9.9 | 0.66 | 2016-05-31 21:49:34 | 2016-06-01 03:32:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | YZKH | Z | Pg | E | 2016-05-31 21:47:41 | -0.19 | y | 150 | 285 | |||
| IIEES | YZKH | N | Sg | E | 2016-05-31 21:48:00 | -0.07 | y | 150 | 285 | |||
| IIEES | TABS | Z | Pn | E | 2016-05-31 21:47:49 | 0.33 | y | 201 | 27 | |||
| IIEES | KRBR | Z | Pn | E | 2016-05-31 21:47:54 | 0.13 | y | 236 | 165 | |||
| IIEES | KRBR | N | Sg | E | 2016-05-31 21:48:23 | 0.04 | y | 236 | 165 | |||
| IIEES | BSRN | Z | Pn | E | 2016-05-31 21:47:59 | -0.61 | y | 283 | 91 | |||
| IIEES | NASN | Z | Pn | E | 2016-05-31 21:48:05 | 0.58 | y | 324 | 286 | |||
| IIEES | SHRT | Z | Pn | E | 2016-05-31 21:48:18 | 0.31 | y | 428 | 64 | |||
| IIEES | SHRO | Z | Pn | E | 2016-05-31 21:48:19 | 0.16 | y | 440 | 359 | |||
| IIEES | ASAO | Z | Pn | E | 2016-05-31 21:48:42 | -0.69 | y | 633 | 298 | |||
| IIEES | BJRD | Z | Pn | E | 2016-05-31 21:48:43 | -0.36 | y | 639 | 10 | |||
