Magnitude |
:4.1 |
| Date & Time (UTC) | 2016-06-04 10:23:53.7 |
| Date & Time (Local) | 1395/3/15 14:53:53.7 |
| Location | Lat:30.731 Lon: 60.094 |
| Region | Sistan va Baloochestan Province, 90 km South of Nehbandan |
Nearest Cities |
|
| 90 km South of Nehbandan, Khorasan(south) Province | |
| 100 km North East of Nosratabad, Sistan va Baloochestan Province | |
| 112 km North West of Tasuki, Sistan va Baloochestan Province | |
| 136 km South West of Adimi, Sistan va Baloochestan Province | |
| 138 km South West of Zabol, Sistan va Baloochestan Province | |
| Depth | 15 km |
| Agency | |

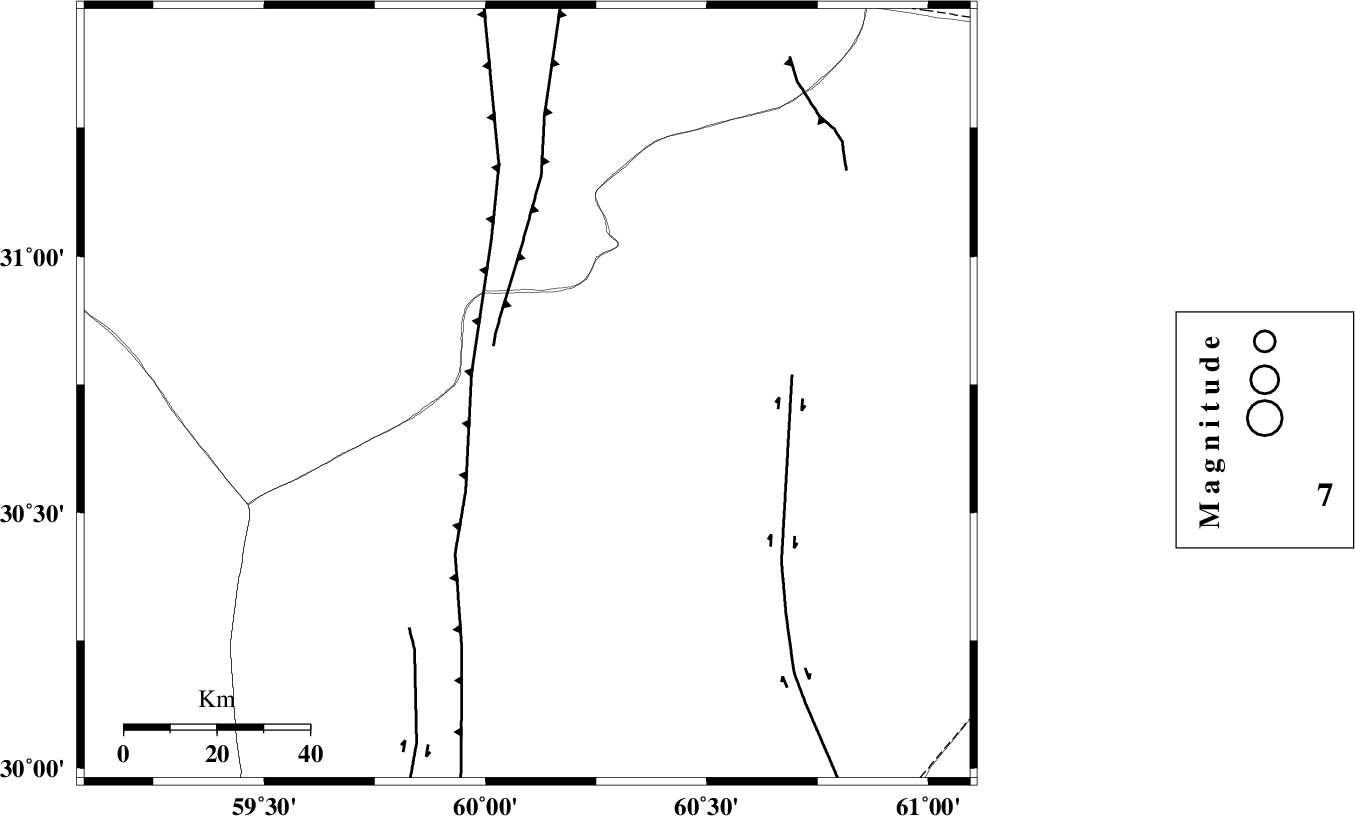

Faults within 150 km: |
|
| E_NEH_F (Length: 148 km) , Distance to epicenter: 13 km | |
| W_NEH_F (Length: 158 km) , Distance to epicenter: 13 km | |
| KANURAK_F (Length: 135 km) , Distance to epicenter: 57 km | |
| Number of Phases | 7 |
| RMS | 0.4 |
| Number of Stations | 7 |
| Error in Latitude | >9.2 km |
| Error in Longitude | 3.8 km |
| Error in Depth | 0 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 106470 | IIEES | KRBR | N | 377.4 | 0.28 | 2016-06-04 10:25:28 | 2016-06-05 04:47:00 | n |
| 106471 | IIEES | KRBR | E | 406 | 0.55 | 2016-06-04 10:25:36 | 2016-06-05 04:47:00 | n |
| 106472 | IIEES | TABS | N | 246.4 | 0.78 | 2016-06-04 10:25:59 | 2016-06-05 04:47:00 | n |
| 106473 | IIEES | TABS | E | 102.1 | 0.64 | 2016-06-04 10:26:07 | 2016-06-05 04:47:00 | n |
| 106474 | IIEES | YZKH | N | 122.3 | 0.48 | 2016-06-04 10:26:36 | 2016-06-05 04:47:00 | n |
| 106475 | IIEES | YZKH | E | 189.9 | 0.69 | 2016-06-04 10:26:41 | 2016-06-05 04:47:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SHRT | Z | Pn | E | 2016-06-04 10:24:41 | -0.2 | y | 324 | 3 | |||
| IIEES | KRBR | Z | Pn | E | 2016-06-04 10:24:42 | 0.16 | y | 331 | 256 | |||
| IIEES | TABS | Z | Pn | E | 2016-06-04 10:24:54 | -0.01 | y | 428 | 320 | |||
| IIEES | YZKH | Z | Pn | E | 2016-06-04 10:25:09 | -0.44 | y | 554 | 291 | |||
| IIEES | SHRO | Z | P | E | 2016-06-04 10:25:28 | 0.12 | y | 698 | 328 | |||
| IIEES | NASN | Z | Pn | E | 2016-06-04 10:25:31 | -0.12 | y | 727 | 290 | |||
| IIEES | MRVT | Z | P | E | 2016-06-04 10:25:48 | 1.03 | y | 853 | 335 | |||
