Magnitude |
:3 |
| Date & Time (UTC) | 2016-06-08 05:41:24.9 |
| Date & Time (Local) | 1395/3/19 10:11:24.9 |
| Location | Lat:30.123 Lon: 60.535 |
| Region | Sistan va Baloochestan Province, 76 km North-West of Zahedan |
Nearest Cities |
|
| 62 km North East of Nosratabad, Sistan va Baloochestan Province | |
| 72 km South West of Tasuki, Sistan va Baloochestan Province | |
| 76 km North West of Zahedan, Sistan va Baloochestan Province | |
| 79 km North of Mohamadabad, Sistan va Baloochestan Province | |
| 88 km North East of Hesaruyeh, Sistan va Baloochestan Province | |
| Depth | 14 km |
| Agency | |

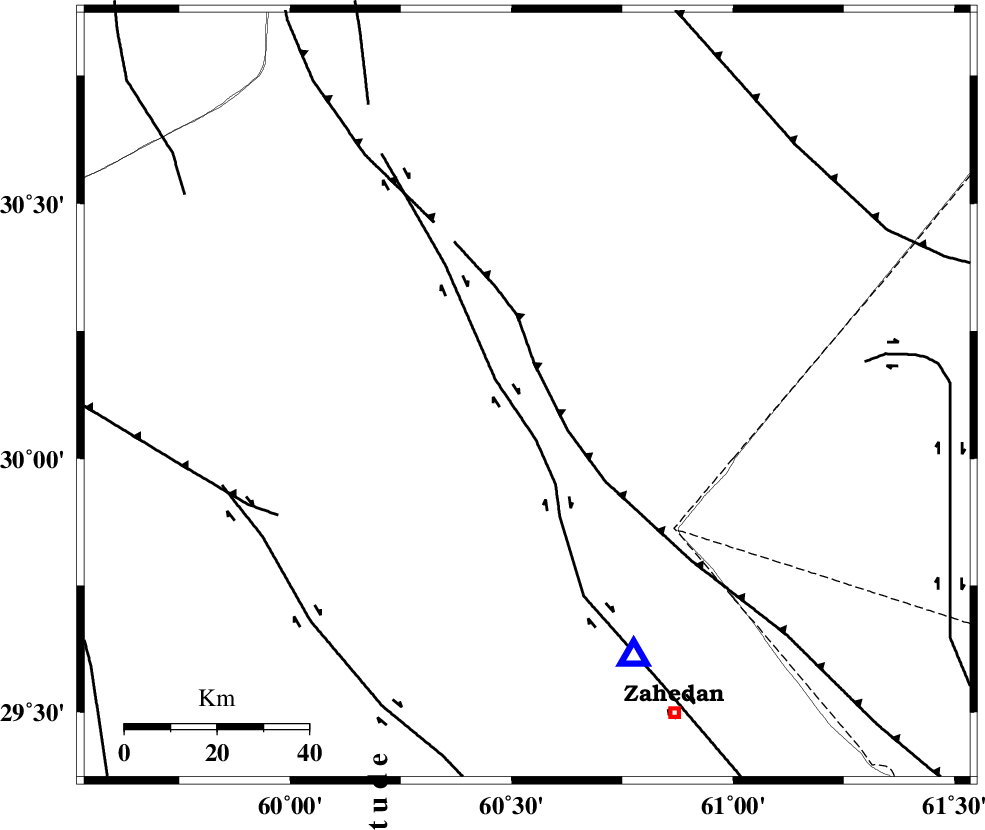

Faults within 150 km: |
|
| ZAHEDAN_F (Length: 190 km) , Distance to epicenter: 17 km | |
| W_NEH_F (Length: 158 km) , Distance to epicenter: 58 km | |
| NOSRATABAD_F_Z3 (Length: 150 km) , Distance to epicenter: 66 km | |
| Number of Phases | 7 |
| RMS | 0.2 |
| Number of Stations | 5 |
| Error in Latitude | >4.8 km |
| Error in Longitude | 2.9 km |
| Error in Depth | 8.7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 106614 | IIEES | KRBR | E | 54.3 | 0.7 | 2016-06-08 05:43:20 | 2016-06-08 06:11:00 | n |
| 106615 | IIEES | SHRT | E | 15.1 | 0.63 | 2016-06-08 05:43:36 | 2016-06-08 06:11:00 | n |
| 106616 | IIEES | TABS | N | 11.1 | 0.5 | 2016-06-08 05:44:03 | 2016-06-08 06:11:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | ZHSF | Z | Pg | E | 2016-06-08 05:41:35 | -0.02 | y | 61.3 | 158 | |||
| IIEES | BSRN | Z | Pn | E | 2016-06-08 05:42:00 | -2.55 | n | 4 | 245 | 327 | ||
| IIEES | KRBR | Z | Pn | E | 2016-06-08 05:42:18 | 0.05 | y | 364 | 268 | |||
| IIEES | KRBR | E | Sg | E | 2016-06-08 05:43:07 | -0.14 | y | 364 | 268 | |||
| IIEES | SHRT | Z | Pn | E | 2016-06-08 05:42:21 | -0.17 | y | 391 | 357 | |||
| IIEES | TABS | Z | Pn | E | 2016-06-08 05:42:34 | -1.53 | n | 4 | 507 | 321 | ||
| IIEES | YZKH | Z | Pn | E | 2016-06-08 05:42:50 | 0.44 | y | 619 | 295 | |||
