Magnitude |
:3.2 |
| Date & Time (UTC) | 2016-06-09 06:04:13.5 |
| Date & Time (Local) | 1395/3/20 10:34:13.5 |
| Location | Lat:33.822 Lon: 48.693 |
| Region | Lorestan Province, 10 km of Borujerd |
Nearest Cities |
|
| 8 km North of Pellekan-e sofla, Lorestan Province | |
| 10 km West of Hemmatabad, Lorestan Province | |
| 10 km of Borujerd, Lorestan Province | |
| 14 km West of Valanjerd, Lorestan Province | |
| 16 km South of Bon dizeh, Lorestan Province | |
| Depth | 15 km |
| Agency | |

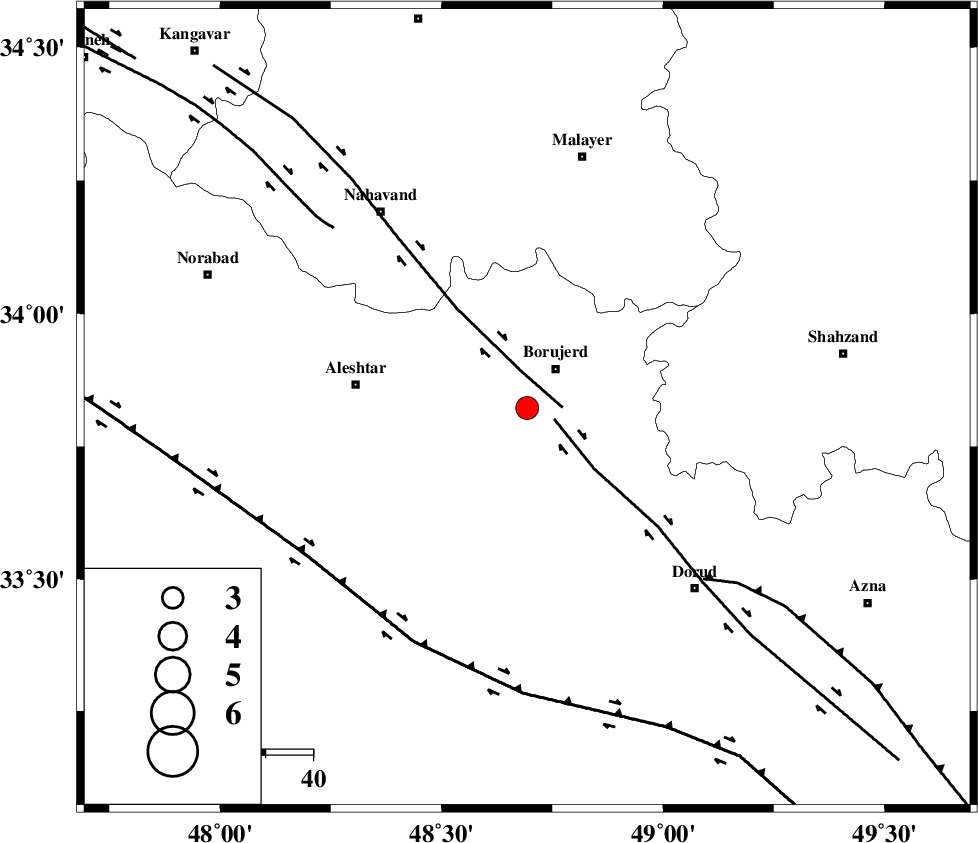

Faults within 150 km: |
|
| DORUD (Length: 100 km) , Distance to epicenter: 6 km | |
| NAHAVAND_F (Length: 102 km) , Distance to epicenter: 7 km | |
| MAIN_ZAGROS_R_F (Length: 1106 km) , Distance to epicenter: 51 km | |
| Number of Phases | 9 |
| RMS | 0.2 |
| Number of Stations | 9 |
| Error in Latitude | >5.8 km |
| Error in Longitude | 2.1 km |
| Error in Depth | 0 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 106680 | IIEES | KHMZ | E | 274.2 | 0.31 | 2016-06-09 06:04:50 | 2016-06-11 05:57:00 | n |
| 106681 | IIEES | ASAO | E | 704.1 | 0.29 | 2016-06-09 06:04:58 | 2016-06-11 05:57:00 | n |
| 106682 | IIEES | ASAO | N | 568 | 0.51 | 2016-06-09 06:04:59 | 2016-06-11 05:57:00 | n |
| 106683 | IIEES | GHVR | E | 128.9 | 0.45 | 2016-06-09 06:05:30 | 2016-06-11 05:57:00 | n |
| 106684 | IIEES | DAMV | N | 39.6 | 0.5 | 2016-06-09 06:05:58 | 2016-06-11 05:57:00 | n |
| 106685 | IIEES | DAMV | E | 41.1 | 0.5 | 2016-06-09 06:05:59 | 2016-06-11 05:57:00 | n |
| 106686 | IIEES | DAGI | N | 52 | 0.26 | 2016-06-09 06:06:04 | 2016-06-11 05:57:00 | n |
| 106687 | IIEES | DAGI | E | 42.4 | 0.48 | 2016-06-09 06:06:05 | 2016-06-11 05:57:00 | n |
| 106688 | IIEES | NASN | E | 21.8 | 0.4 | 2016-06-09 06:06:16 | 2016-06-11 05:57:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | KHMZ | Z | Pg | E | 2016-06-09 06:04:32 | -1.25 | n | 4 | 118 | 94 | ||
| IIEES | ASAO | Z | Pg | E | 2016-06-09 06:04:36 | -2 | n | 4 | 147 | 56 | ||
| IIEES | GHVR | Z | Pn | E | 2016-06-09 06:04:51 | -0.09 | y | 246 | 72 | |||
| IIEES | ZNJK | Z | Pn | E | 2016-06-09 06:05:00 | 0.07 | y | 316 | 360 | |||
| IIEES | CHTH | Z | Pn | E | 2016-06-09 06:05:01 | 0.05 | y | 321 | 43 | |||
| IIEES | DAGI | Z | Pn | E | 2016-06-09 06:05:06 | 0.29 | y | 361 | 17 | |||
| IIEES | DAMV | Z | Pn | E | 2016-06-09 06:05:06 | -0.18 | y | 361 | 55 | |||
| IIEES | NASN | Z | Pn | E | 2016-06-09 06:05:11 | 0.11 | y | 400 | 105 | |||
| IIEES | GRMI | Z | Pn | E | 2016-06-09 06:05:30 | -0.33 | y | 558 | 353 | |||
