Magnitude |
:2.7 |
| Date & Time (UTC) | 2016-06-10 19:12:32.5 |
| Date & Time (Local) | 1395/3/21 23:42:32.5 |
| Location | Lat:31.415 Lon: 51.83 |
| Region | Esfahan Province, 24 km -East of Semirom |
Nearest Cities |
|
| 24 km North East of Semirom, Esfahan Province | |
| 27 km North East of Hanae, Esfahan Province | |
| 28 km South of Esfarjan, Esfahan Province | |
| 30 km West of Ezad khvast, Fars Province | |
| 33 km South of Kahruyeh, Esfahan Province | |
| Depth | 14 km |
| Agency | |

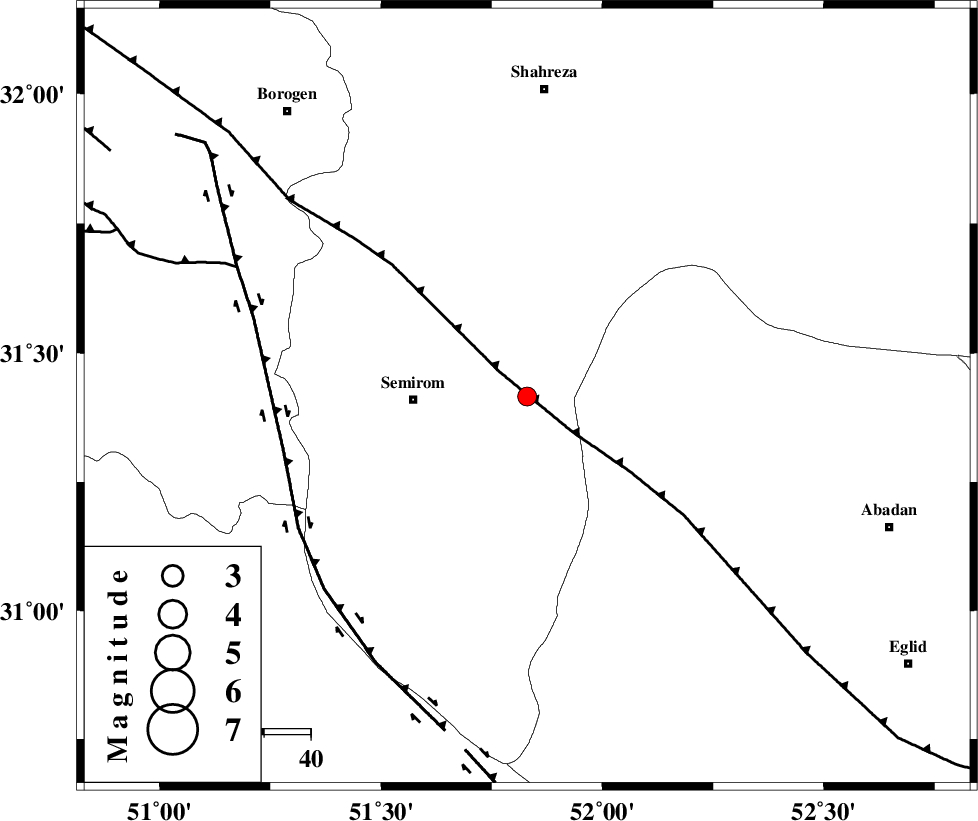

Faults within 150 km: |
|
| MAIN_ZAGROS_R_F (Length: 1106 km) , Distance to epicenter: 8 km | |
| DENA_F (Length: 137 km) , Distance to epicenter: 53 km | |
| DOPOLAN_F (Length: 107 km) , Distance to epicenter: 68 km | |
| Number of Phases | 9 |
| RMS | 0.3 |
| Number of Stations | 8 |
| Error in Latitude | >4 km |
| Error in Longitude | 4.7 km |
| Error in Depth | 8.5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 106701 | IIEES | YZKH | E | 21.6 | 0.69 | 2016-06-10 19:14:01 | 2016-06-11 05:57:00 | n |
| 106702 | IIEES | AHRM | N | 24.6 | 0.39 | 2016-06-10 19:14:11 | 2016-06-11 05:57:00 | n |
| 106703 | IIEES | KHMZ | E | 20.7 | 0.65 | 2016-06-10 19:14:05 | 2016-06-11 05:57:00 | n |
| 106704 | IIEES | ASAO | N | 14.6 | 0.68 | 2016-06-10 19:14:31 | 2016-06-11 05:57:00 | n |
| 106705 | IIEES | ASAO | E | 11.7 | 0.51 | 2016-06-10 19:14:31 | 2016-06-11 05:57:00 | n |
| 106706 | IIEES | TABS | N | 3.1 | 0.7 | 2016-06-10 19:15:39 | 2016-06-11 05:57:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | NASN | Z | Pg | E | 2016-06-10 19:13:01 | -0.45 | y | 179 | 31 | |||
| IIEES | YZKH | Z | Pn | E | 2016-06-10 19:13:17 | 1.96 | n | 4 | 283 | 67 | ||
| IIEES | AHRM | Z | Pn | E | 2016-06-10 19:13:15 | -0.06 | y | 287 | 190 | |||
| IIEES | KHMZ | Z | Pn | E | 2016-06-10 19:13:18 | -0.49 | y | 312 | 326 | |||
| IIEES | KHMZ | E | Sg | E | 2016-06-10 19:14:00 | 0.14 | y | 312 | 326 | |||
| IIEES | GHVR | Z | Pn | E | 2016-06-10 19:13:23 | 0.31 | y | 344 | 351 | |||
| IIEES | ASAO | Z | Pn | E | 2016-06-10 19:13:28 | 0.2 | y | 386 | 335 | |||
| IIEES | TABS | Z | P | E | 2016-06-10 19:13:49 | 0.36 | y | 555 | 62 | |||
| IIEES | SHRO | Z | P | E | 2016-06-10 19:14:00 | 0.34 | y | 640 | 36 | |||
