Magnitude |
:2.6 |
| Date & Time (UTC) | 2016-06-13 06:57:52.2 |
| Date & Time (Local) | 1395/3/24 11:27:52.2 |

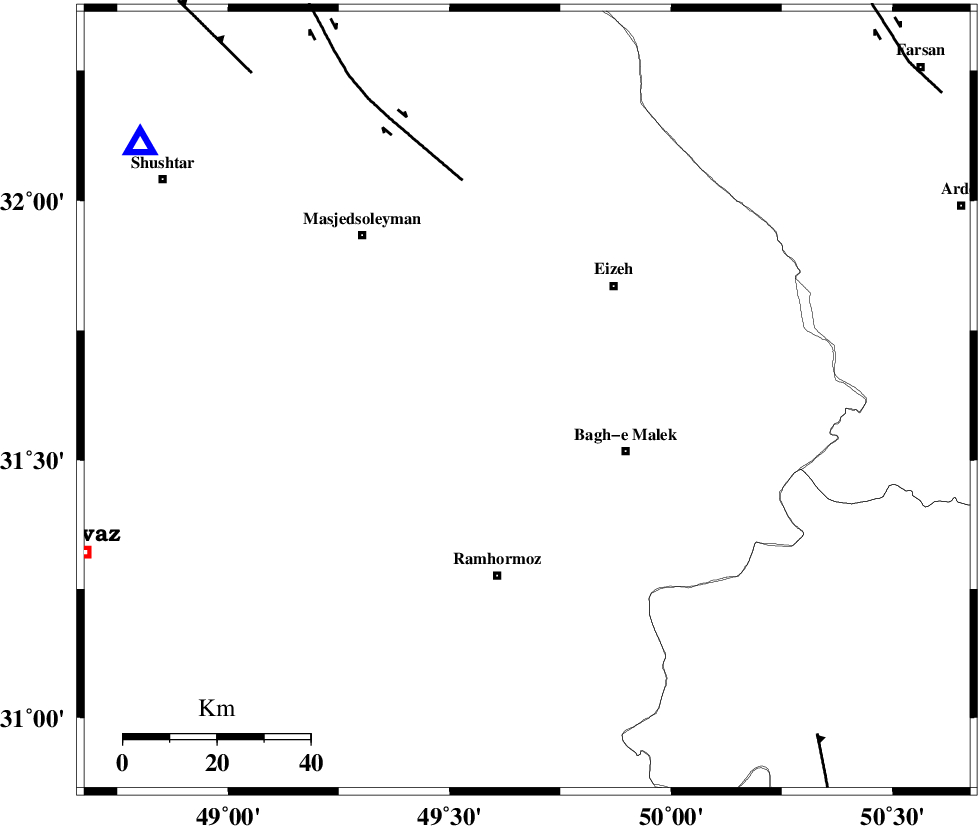

| Location | Lat:31.614 Lon: 49.675 |
| Region | Khoozestan Province, 24 km -West of Bagh Malek |
Nearest Cities |
|
| 14 km North East of Jaru, Khoozestan Province | |
| 19 km North of Midavood-e sofla, Khoozestan Province | |
| 20 km West of Ghaleh tal, Khoozestan Province | |
| 22 km South West of Chenarestan, Khoozestan Province | |
| 23 km North East of Haftgol, Khoozestan Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 6 km | |
| MFF2 (Length: 205 km) , Distance to epicenter: 23 km | |
| MFF4 (Length: 62 km) , Distance to epicenter: 44 km | |
| Number of Phases | 7 |
| RMS | 0.2 |
| Number of Stations | 5 |
| Error in Latitude | >4.7 km |
| Error in Longitude | 9.9 km |
| Error in Depth | 5.8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 106782 | IIEES | KHMZ | E | 56.8 | 0.68 | 2016-06-13 06:59:01 | 2016-06-13 07:53:00 | n |
| 106783 | IIEES | ASAO | E | 12.4 | 0.55 | 2016-06-13 06:59:27 | 2016-06-13 07:53:00 | n |
| 106784 | IIEES | ASAO | N | 11.9 | 0.55 | 2016-06-13 06:59:32 | 2016-06-13 07:53:00 | n |
| 106785 | IIEES | GHVR | E | 11.2 | 0.43 | 2016-06-13 06:59:40 | 2016-06-13 07:53:00 | n |
| 106786 | IIEES | YZKH | E | 7.5 | 0.93 | 2016-06-13 07:00:18 | 2016-06-13 07:53:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | KHMZ | Z | Pn | E | 2016-06-13 06:58:29 | -0.09 | y | 237 | 6 | |||
| IIEES | KHMZ | E | Sg | E | 2016-06-13 06:58:59 | -0.04 | y | 237 | 6 | |||
| IIEES | NASN | Z | Pn | E | 2016-06-13 06:58:40 | 0.38 | y | 323 | 65 | |||
| IIEES | ASAO | Z | Pn | E | 2016-06-13 06:58:40 | 0 | y | 327 | 6 | |||
| IIEES | ASAO | N | S | E | 2016-06-13 06:59:16 | 0.02 | y | 327 | 6 | |||
| IIEES | GHVR | Z | Pn | E | 2016-06-13 06:58:43 | 0.13 | y | 350 | 24 | |||
| IIEES | YZKH | Z | Pn | E | 2016-06-13 06:58:58 | -0.49 | y | 472 | 78 | |||
