Magnitude |
:2.5 |
| Date & Time (UTC) | 2016-06-18 09:42:17.2 |
| Date & Time (Local) | 1395/3/29 14:12:17.2 |
| Location | Lat:32.694 Lon: 57.293 |
| Region | Yazd Province, 106 km South-East of Tabas |
Nearest Cities |
|
| 55 km South West of Arababad, Yazd Province | |
| 62 km North West of Hoz-e qorban, Yazd Province | |
| 69 km South West of Dihuk, Yazd Province | |
| 91 km South East of Kerit, Yazd Province | |
| 102 km South East of Oshtoqran, Yazd Province | |
| Depth | 16 km |
| Agency | |

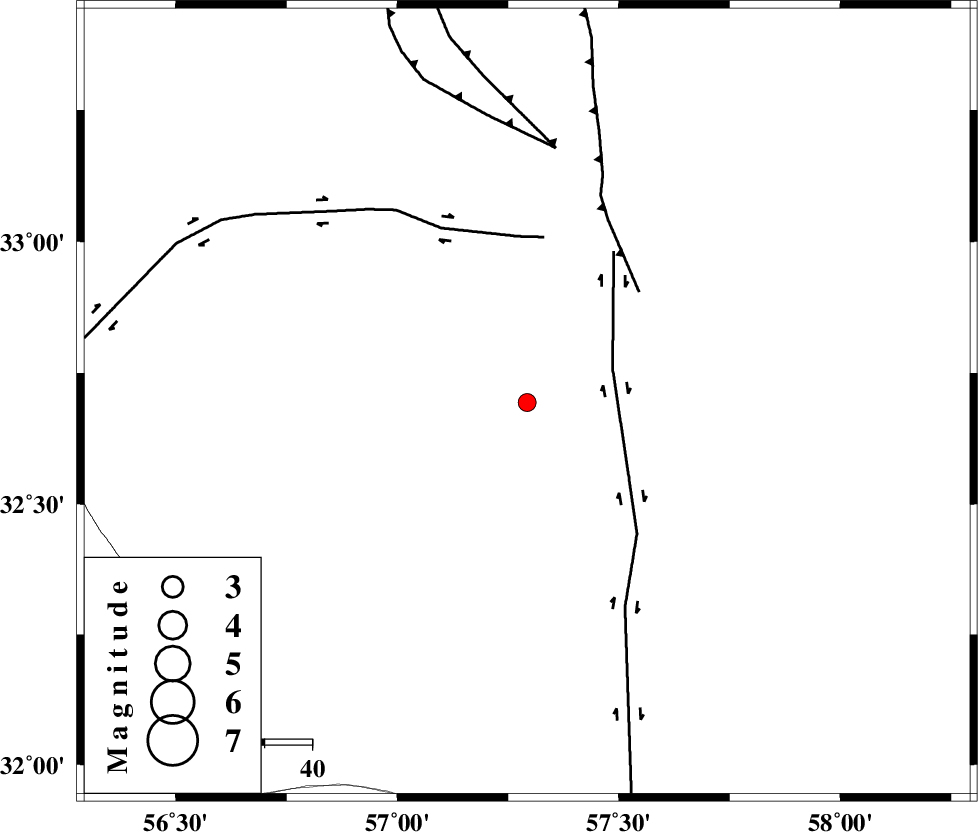

Faults within 150 km: |
|
| NAYBAND_F (Length: 258 km) , Distance to epicenter: 19 km | |
| ESFARDIAR_F (Length: 94 km) , Distance to epicenter: 33 km | |
| CHESHMEH_ROSTAM_ (Length: 142 km) , Distance to epicenter: 35 km | |
| Number of Phases | 8 |
| RMS | 0.2 |
| Number of Stations | 7 |
| Error in Latitude | >2.6 km |
| Error in Longitude | 2.1 km |
| Error in Depth | 4.7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 106864 | IIEES | TABS | N | 81.9 | 0.24 | 2016-06-18 09:42:52 | 2016-06-19 05:29:00 | n |
| 106865 | IIEES | YZKH | N | 26.5 | 0.32 | 2016-06-18 09:43:32 | 2016-06-19 05:29:00 | n |
| 106866 | IIEES | YZKH | E | 28.7 | 0.39 | 2016-06-18 09:43:35 | 2016-06-19 05:29:00 | n |
| 106867 | IIEES | KRBR | E | 18.9 | 0.23 | 2016-06-18 09:43:47 | 2016-06-19 05:29:00 | n |
| 106868 | IIEES | KRBR | N | 19 | 0.23 | 2016-06-18 09:43:51 | 2016-06-19 05:29:00 | n |
| 106869 | IIEES | NASN | E | 2.8 | 0.34 | 2016-06-18 09:44:17 | 2016-06-19 05:29:00 | n |
| 106870 | IIEES | NASN | N | 4.7 | 0.38 | 2016-06-18 09:44:23 | 2016-06-19 05:29:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | TABS | Z | Pg | E | 2016-06-18 09:42:35 | -0.15 | y | 107 | 351 | |||
| IIEES | BSRN | Z | Pg | E | 2016-06-18 09:42:48 | -0.08 | y | 191 | 115 | |||
| IIEES | YZKH | Z | Pn | E | 2016-06-18 09:42:56 | -0.4 | y | 256 | 263 | |||
| IIEES | YZKH | N | Sg | E | 2016-06-18 09:43:29 | 0.24 | y | 256 | 263 | |||
| IIEES | SHRT | Z | Pn | E | 2016-06-18 09:43:02 | 0.26 | y | 299 | 69 | |||
| IIEES | KRBR | Z | Pn | E | 2016-06-18 09:43:02 | 0.04 | y | 305 | 190 | |||
| IIEES | SHRO | Z | Pn | E | 2016-06-18 09:43:12 | 0.14 | y | 386 | 343 | |||
| IIEES | NASN | Z | Pn | E | 2016-06-18 09:43:19 | 2.5 | n | 4 | 420 | 273 | ||
